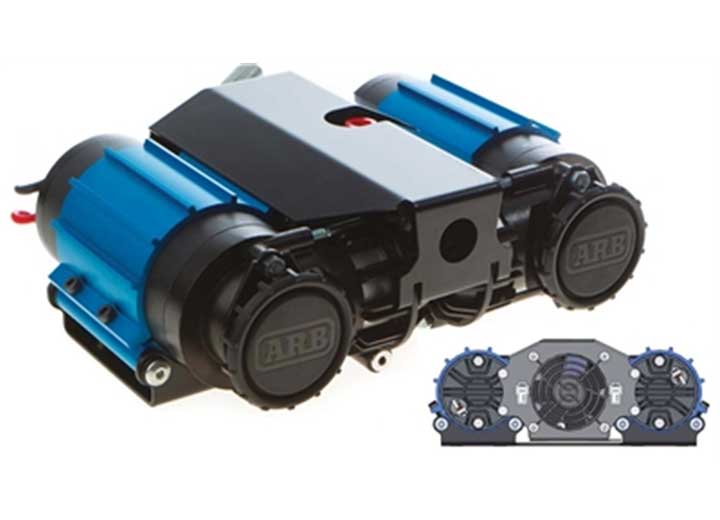

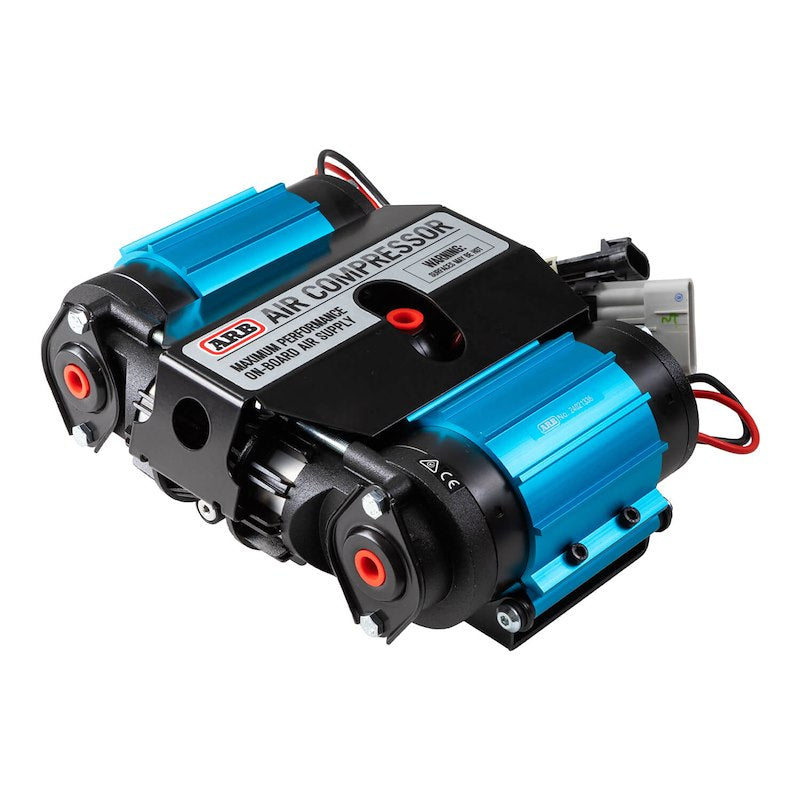

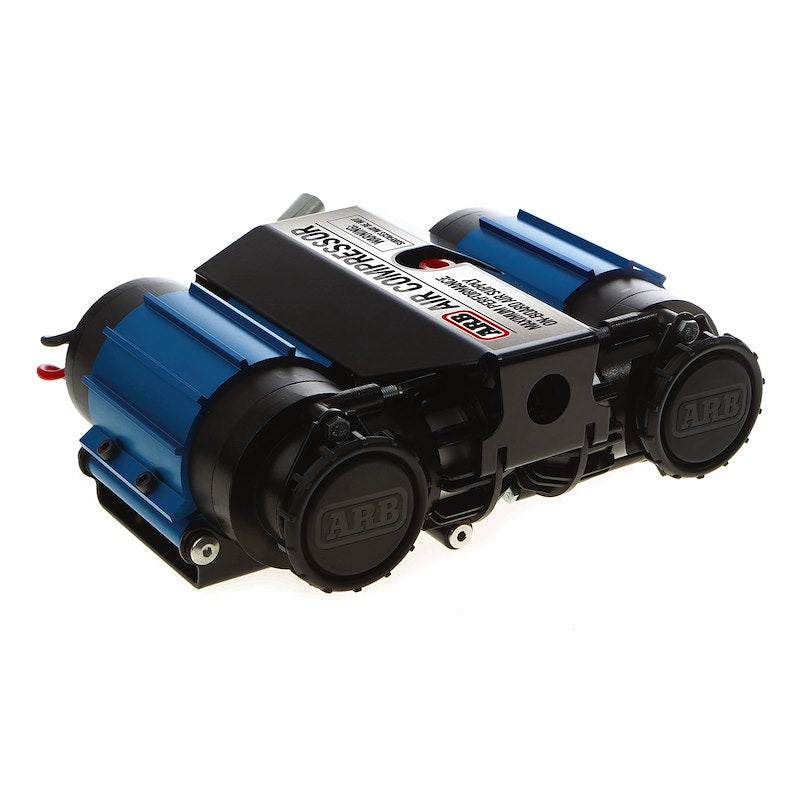

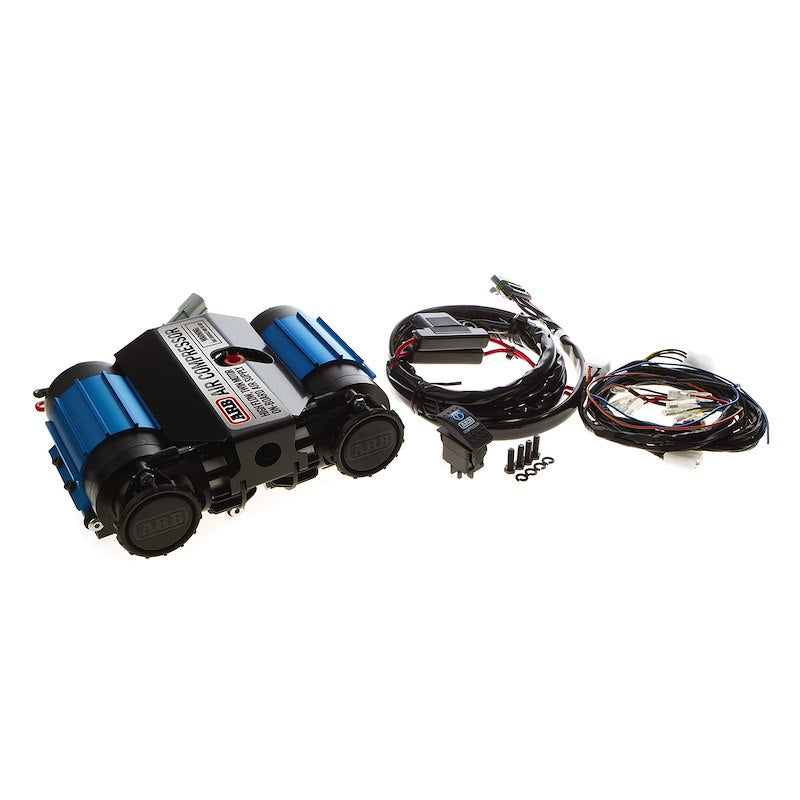

Twin Air Compressor - by ARB

Twin Air Compressor - by ARB

CKMTA12

$849.35 CAD
$849.35 CAD
Sale Sold out
Shipping calculated at checkout.
Type
ARBs new CKMTA12 twin on-board compressor kits were designed to fill the market need for a compact sized yet high-volume compressed air source to suit the high volume airflow needs of most air powered tools, and also to suit the actuation and control needs of the ARB Air Locker , and the harsh and demanding environment of the ARB Air Locker user. ;

Features & Benefits

  • Designed for inflating Tires and Air Locker activation when used in conjunction with optional accessories
  • Suitable for many air tools when used in conjunction with a 4L air tank (optional with on-board models)
  • 100% duty cycle
  • Sealed for moisture and dust resistance
  • Hard anodized cylinder bores for reduced friction
  • Teflon impregnated carbon fiber piston seals for maximum trouble free life
  • Anodized mounting bracket dissipates heat
  • Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads
  • Over-pressure safety valve equipped

Specifications

  • Volts - 12V
  • Width - 7.5 inch
  • Height - 4 inch
  • Length - 10.8 inch
  • Weight - 17.4 lb
  • Max Psi - 150
  • Max Amps - 68.6
  • IP Rating - IP55
  • Duty Cycle - 100% 60/0
  • Air Flow 0 PSI 6.16CFM
  • Air Flow 29PSI 4.68CFM
  • Warranty 3 YR
