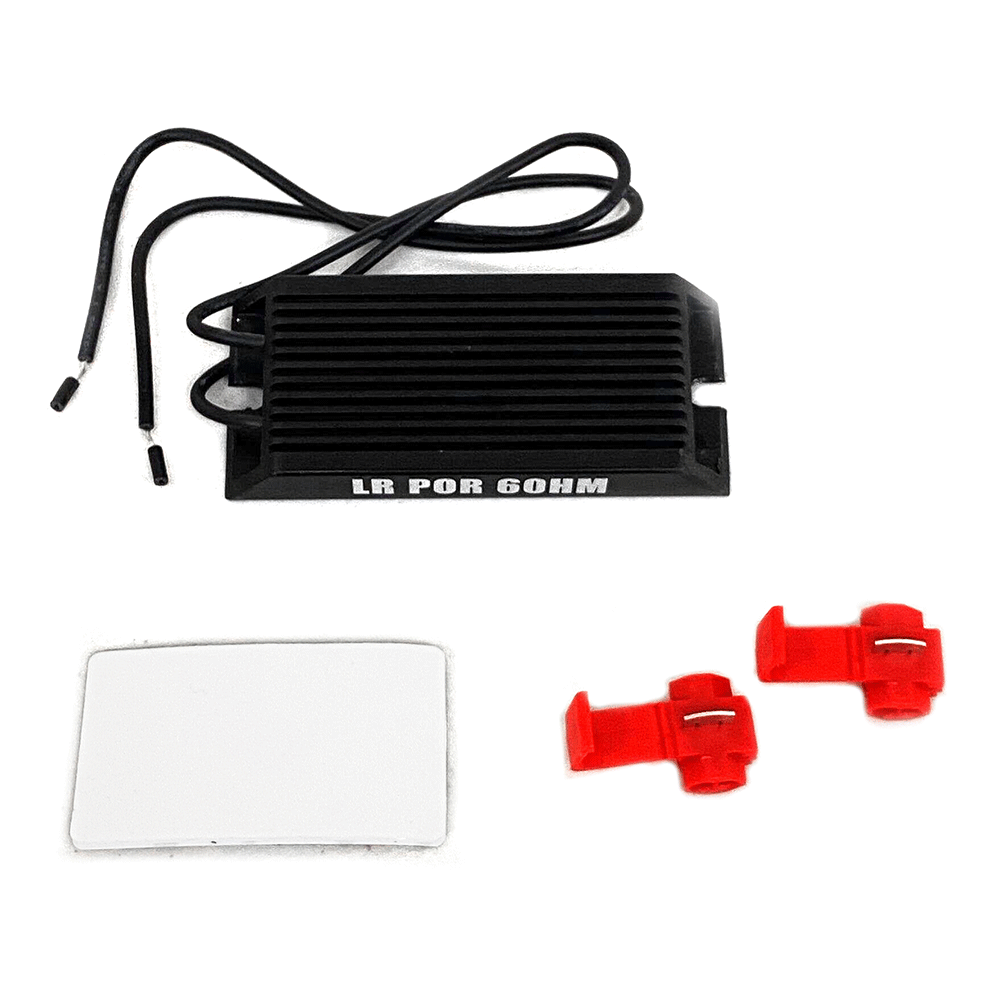

Tiny Monster Universal LED Load Resistor - by ARC Lighting

ARC Lighting LED Load Resistor Harness accomplishes the same task as the common gold resistor but are easier to install, have a lower profile and run 50% cooler (250°F MAX).

Generic resistors (gold aluminum resistors) generally heat to unsafe +430°F temperatures! Our LED load resistors only reach half the temperatures of common gold resistors. Aside from being safer to use, our resistors are weather tight and completely sealed from the elements. 18” of wiring makes finding an installation location simple.

At the end of the wiring, you’ll find wire splice tap connectors that will allow you to easily tap into your OEM wiring; no cutting necessary

Features

• Adds resistance “load” to the specific location. Simulates standard halogen environment. Can assist to help a bulb stop “hyperflashing”
• Current Draw: 1.9A @ 12V or 2.25A @ 14.4V
• Load = One (1) standard filament bulb (equivalent wattage: 25W)
• 6 ohm resistors are ideal if you want to use one (1) resistor for two (2) bulbs (one for the front and one for the back)
• Easy to install. Clips into the existing wiring with 3M™ Scotchlock
• Sold as an individual unit

What's Included

• 1 Harness
• 2 Splice Taps

Specifications

Warranty: 5 years on Tiny Monster lights, 1 year on brackets (ARC Lighting).
