SS5 Grille CrossLink Light bar Kit For 2022-2025 Toyota Tundra - by Diode Dynamics

ORDERED ON DEMAND

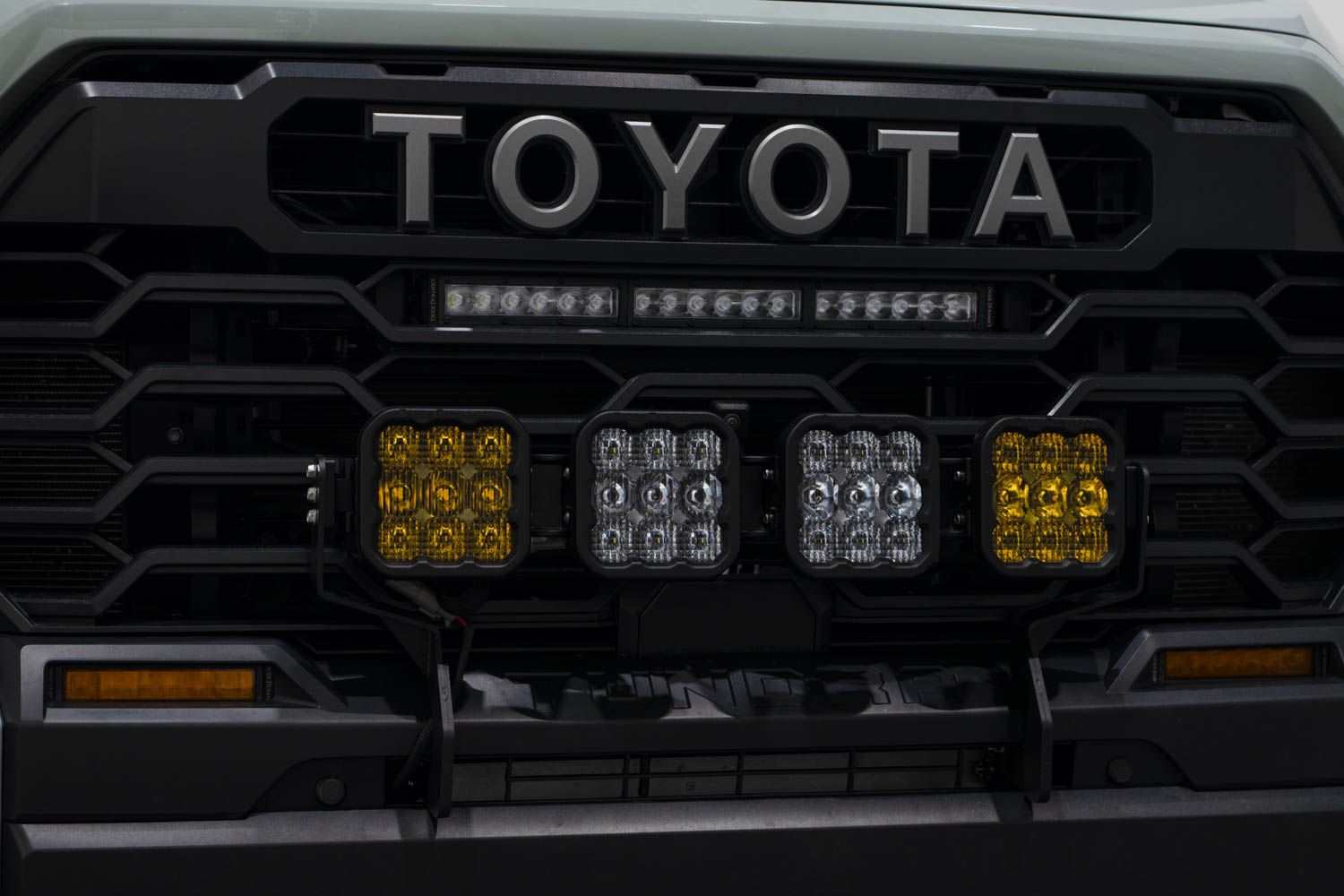

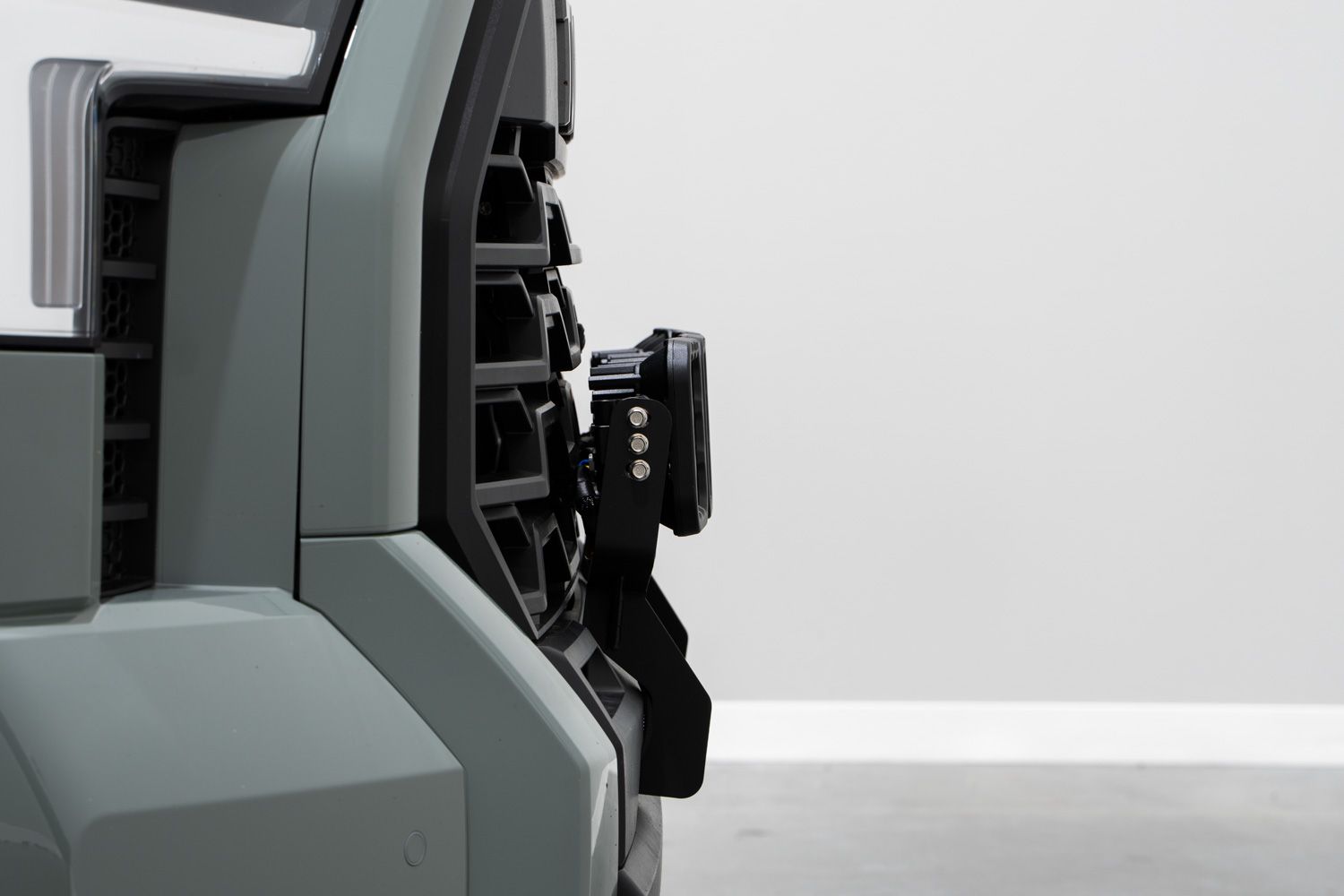

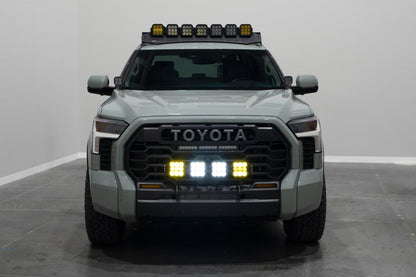

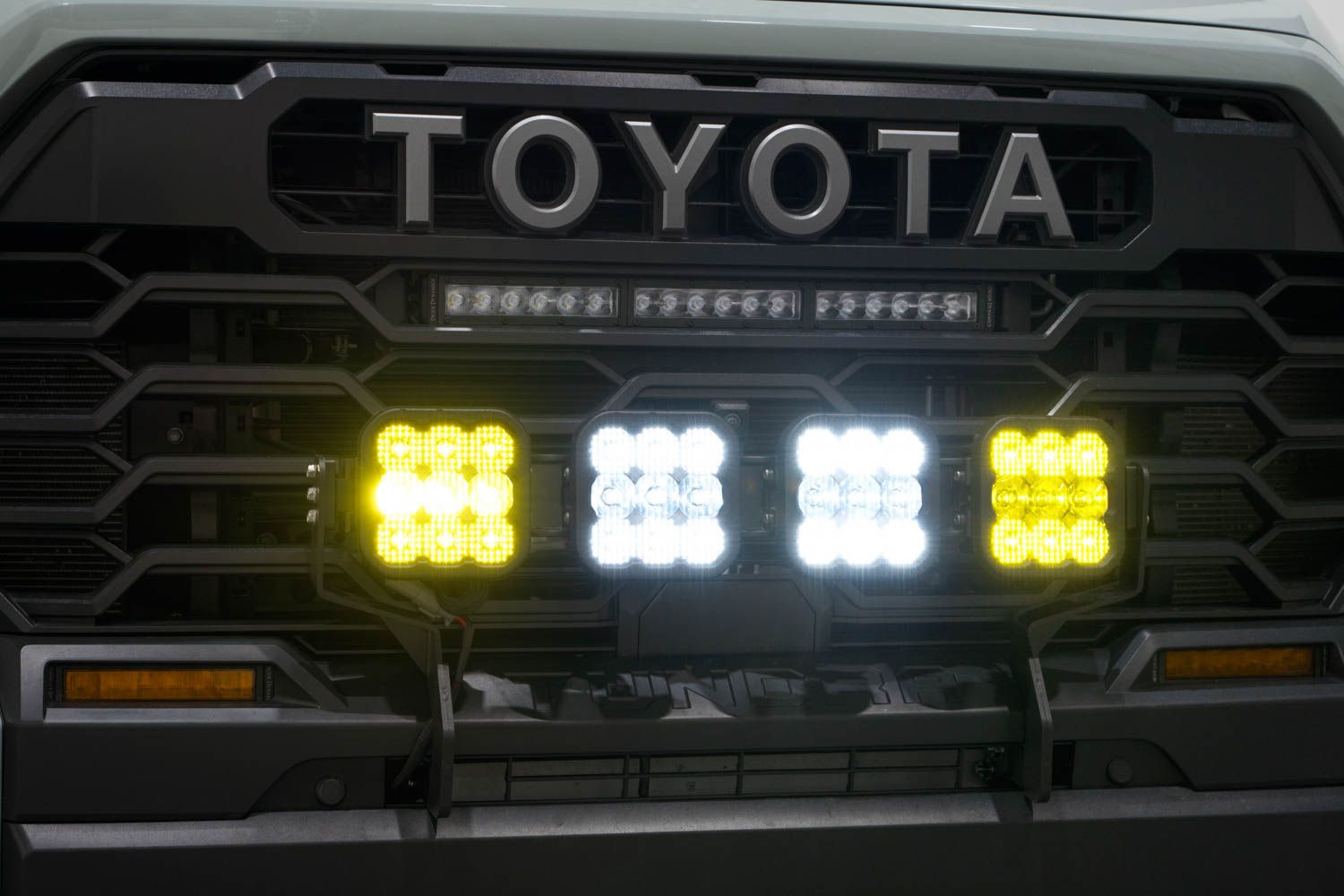

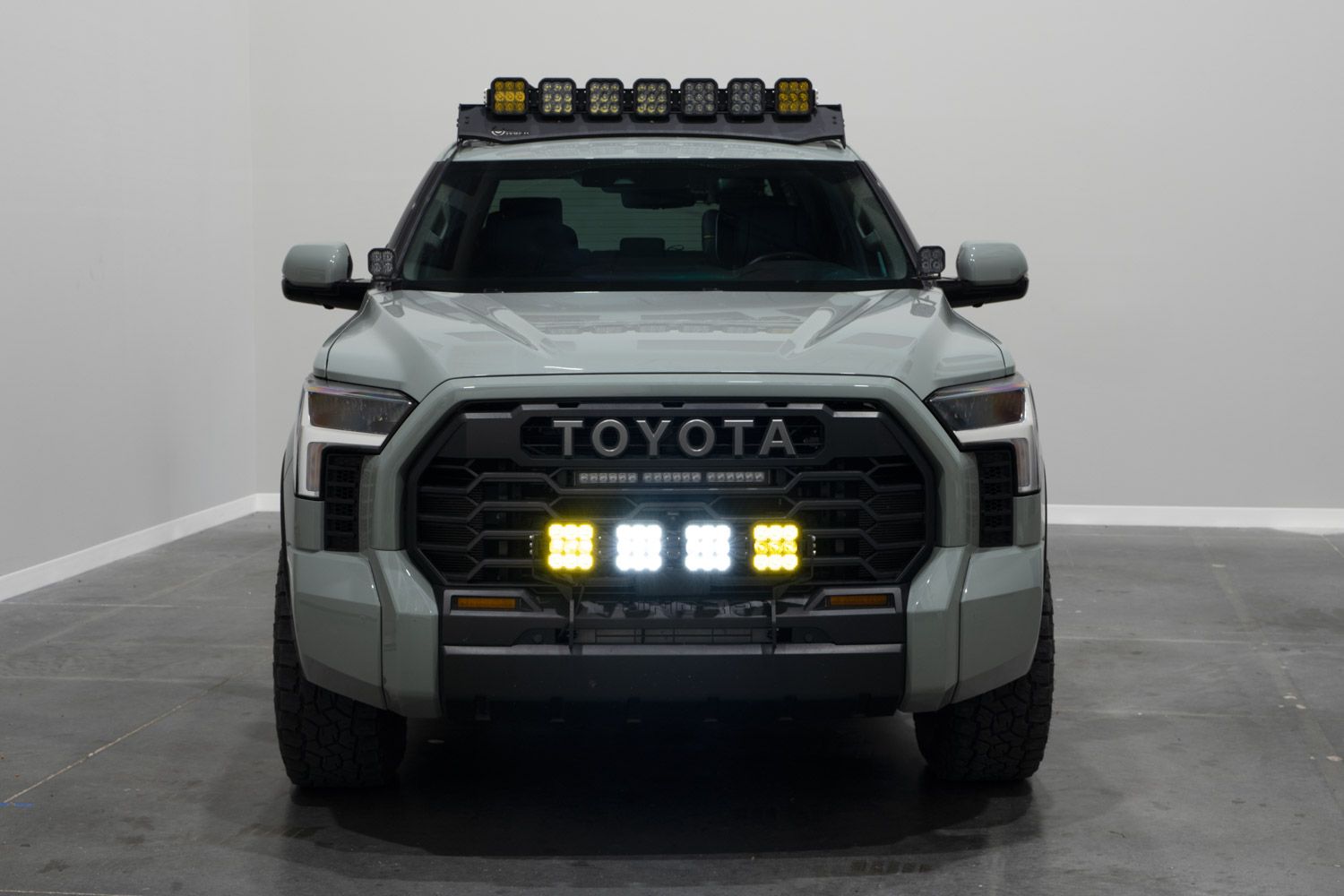

The Grille CrossLink Light bar Kit for the 2022+ Toyota Tundra from Diode Dynamics allows you to mount four linked SS5 LED pods in front of the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the factory bumper. No cutting or drilling required.

Features

• Bolt-on fitment on 2022+ Toyota Tundra.
• Allows you to mount a four-pod CrossLink lightbar across the grille.
• Ultra-high intensity, with custom-engineered TIR optics.
• Selectable backlight color, with eight color options.
• Torture-tested, heavy-duty construction.
• Utilizes existing mounting points for easy installation.
• Assembled in USA.

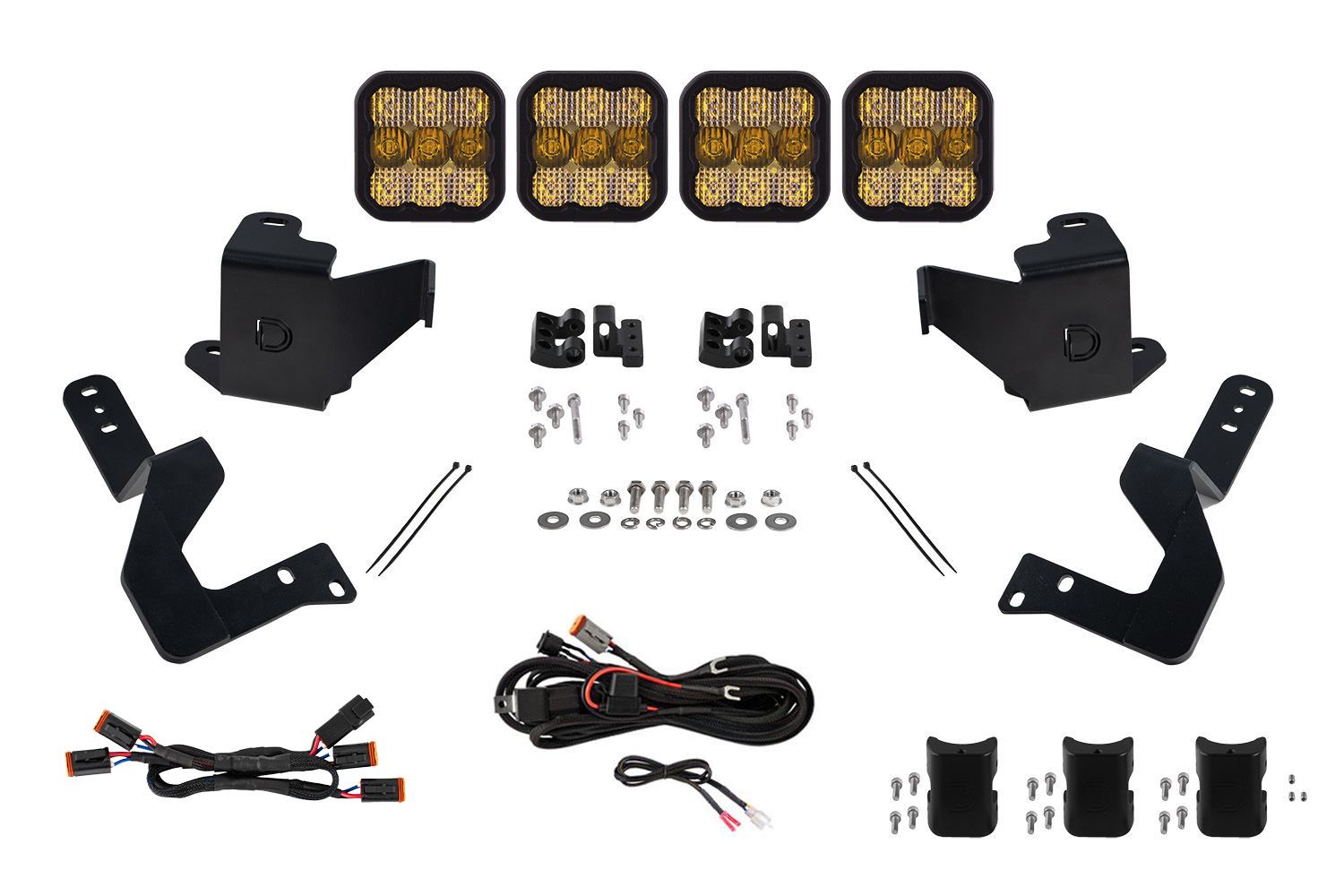

In the Box

• Four (4) Application-specific heavy-duty steel brackets for installation on 2022+ Toyota Tundra
• Four (4) Stage Series 5inch LED Pods
• Three (3) CrossLinks with hardware
• One (1) CrossLink endmount kit
• One (1) DT 4-Pod connecting harness
• One (1) Heavy Duty single-output harness
• Installation Guide

CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. Unlike other options on the market that use multiple pieces to link pods together, we have designed a single-piece CNC aluminum link. This provides extreme rigidity, but is fully adjustable, for both straight and curved configurations. And thanks to inset threaded mounts built-in to every SS5, there is no need to buy a special linking version of the SS5 for your setup.

Combo pattern combines both the Driving and Flood optics, perfect for all-around use. It shines light downrange in a focused 30x20 Driving beam to punch with distance, and fills in the surrounding area to create a full 70x30 degree pattern. With a row of driving optics in the middle, and a flood optic on the top and bottom, this has been designed to provide extra light for every situation.

White or Yellow. This kit is available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

Sport or Pro. This kit is available at two different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses nine high-intensity LEDs for 40W of total power. The Pro model steps things up in a big way, with double the total power at 90W. Click the Specifications tab to see more information.
