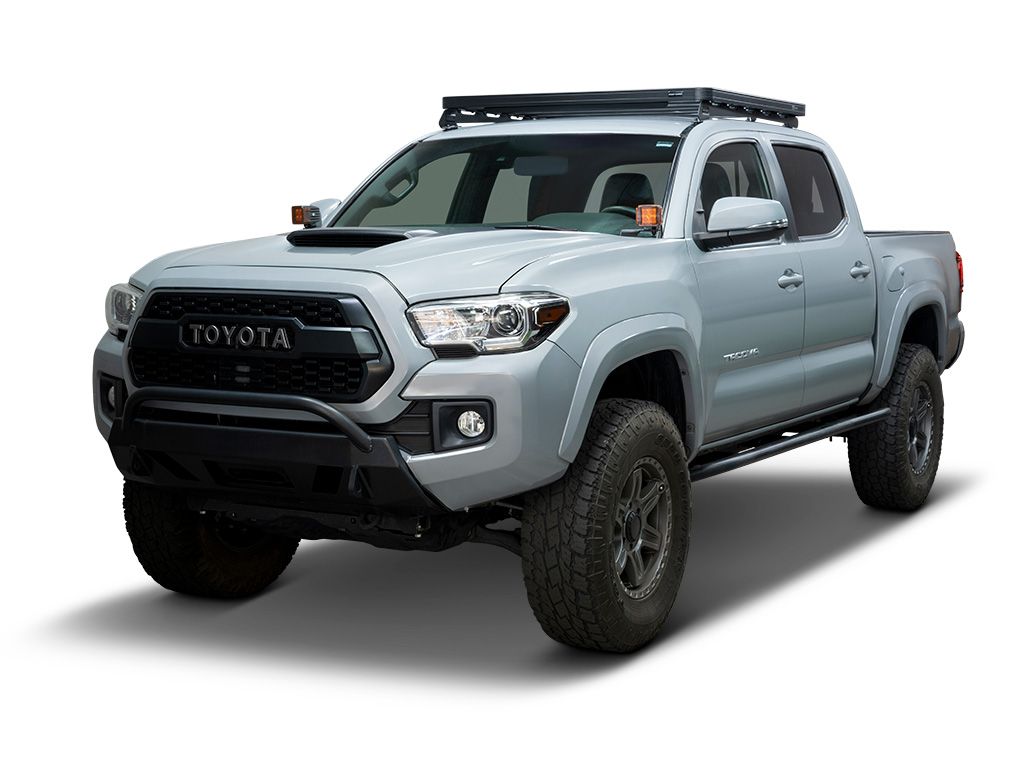

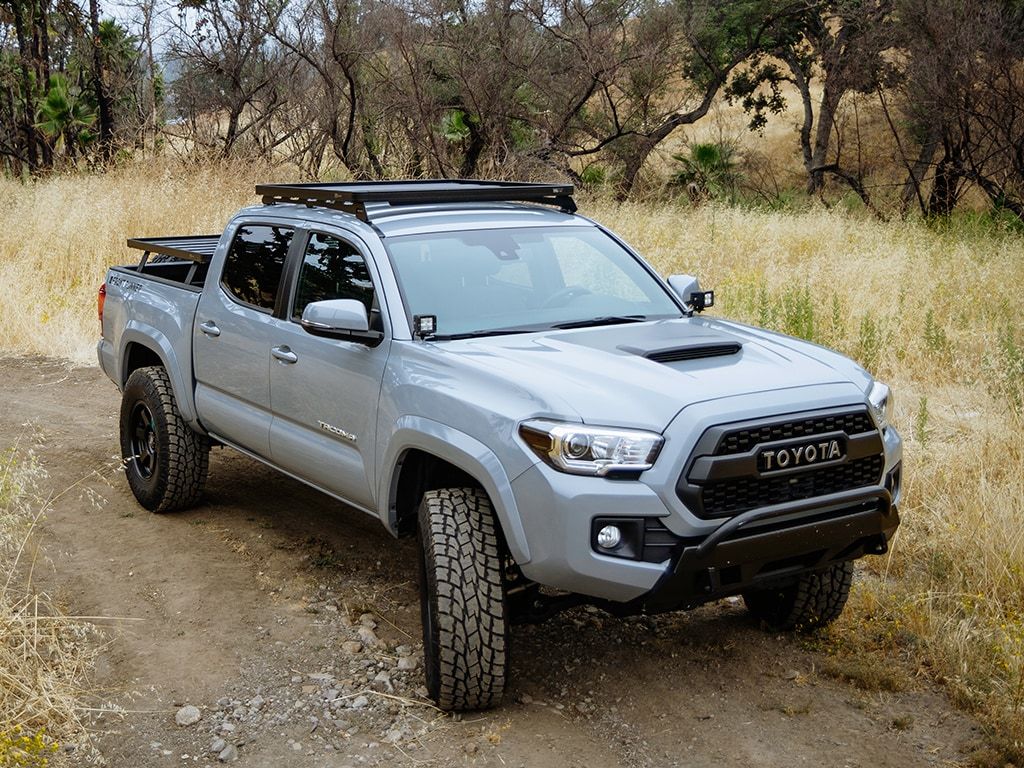

Slimline II Low Profile Roof Rack for Toyota Tacoma (2005 to Present) - by Front Runner

ORDERED ON DEMAND

CONTACT US FOR INSTALL QUOTES

KRTT005T - Toyota Tacoma (2005-Current) Slimline II Roof Rack Kit / Low Profile - by Front Runner

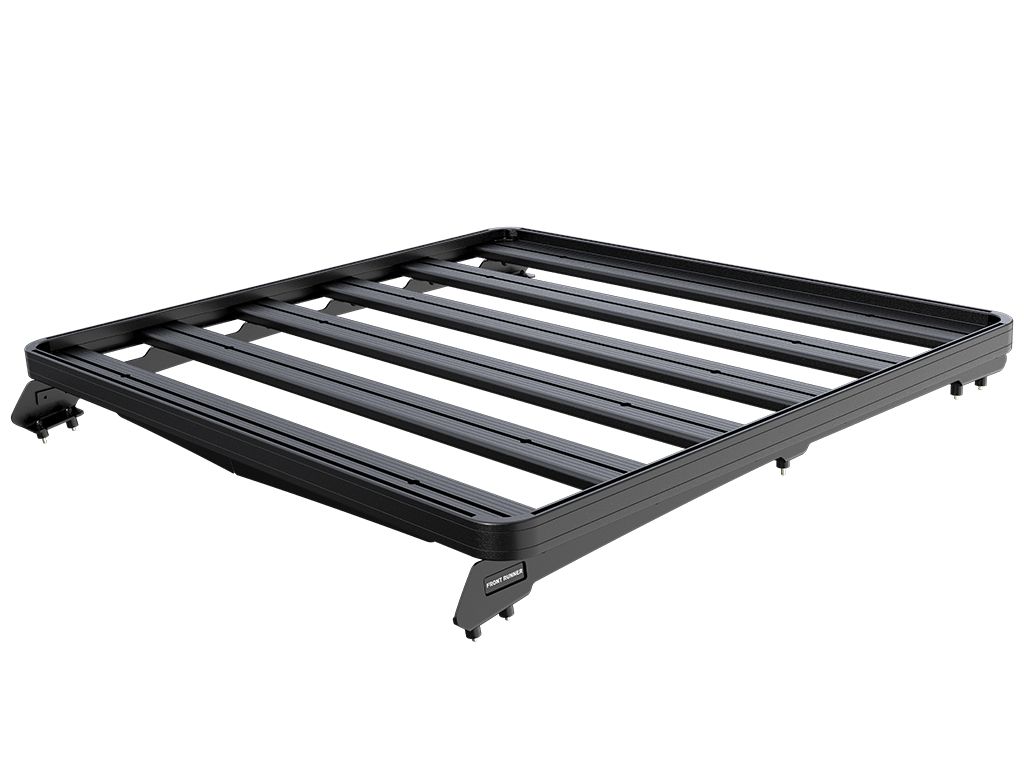

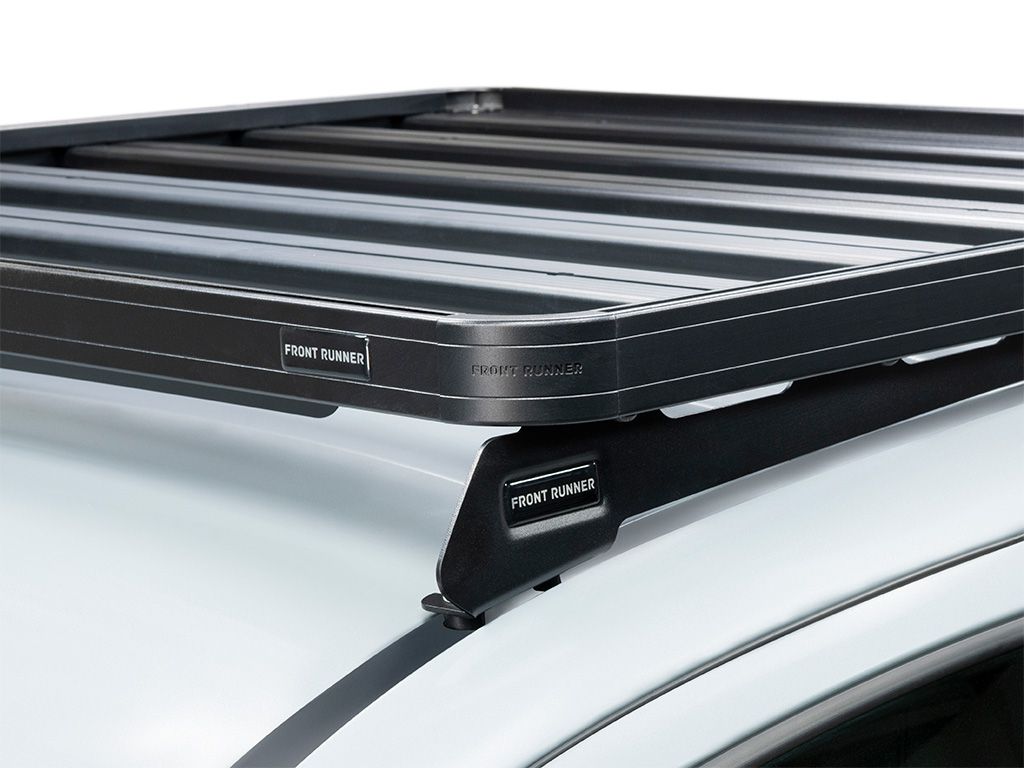

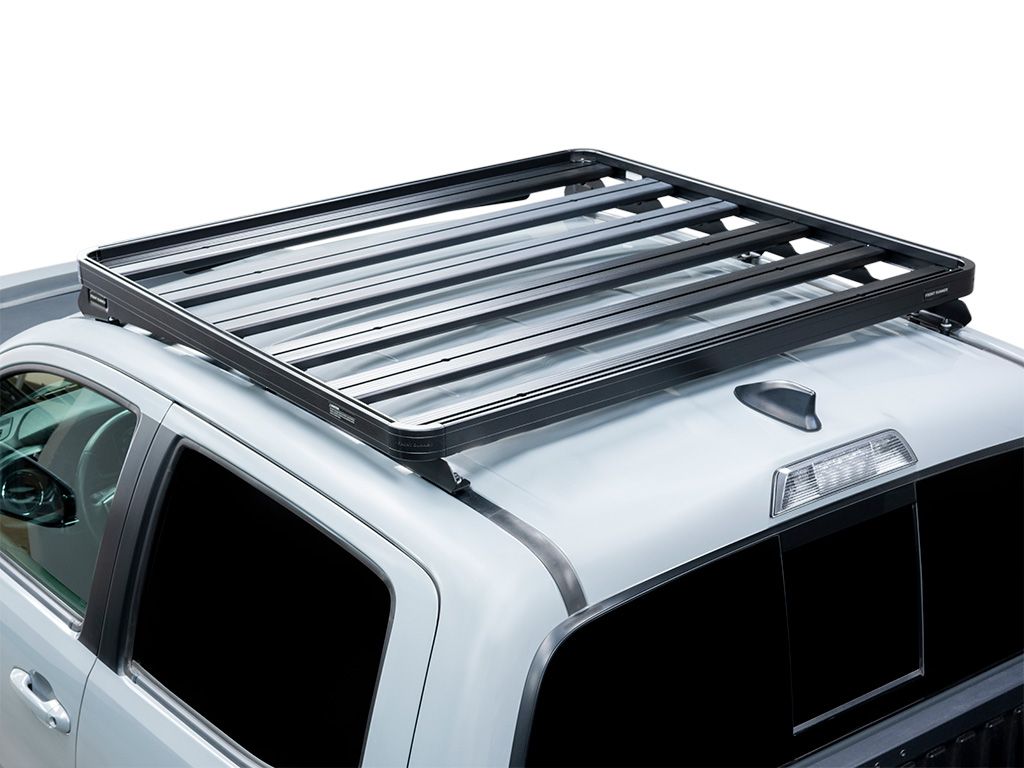

This 1156mm/45.5" long, full-size, Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Low Profile Foot Rails to mount the Slimline II Tray to your Toyota Tacoma 2005+. Easily installs using the existing factory mounting points. No drilling required. Compatible with "shark fin" antenna.

Consisting of:

1x FATT004 - Toyota Tacoma (2005-Curr) Foot Rails/Low Profile
1x RRSTD06 - SLII Tray - 1255mm(W)X1156mm(L)
1x WDST010 - Wind Deflector 20mm Lip Narrow Pair /1255mm(W)

Material Used: Black epoxy powder - coated T6 aluminium, High strength steel

Approximate Installed Weight: 24.51kg (54.04lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

Note: This kit will allow your sunroof to open completely, but it will not allow the sunroof to be operated in tilt/vent mode. If you would like to operate the sunroof in tilt/vent mode, you can use Toyota Tacoma (2005-Current) Slimline II Roof Rack Kit, provided that you do not mount a table underneath.

Note: Some side mount accessories are not suited for low profile foot rails such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets.

Specifications

KRTT005T - Toyota Tacoma (2005-2023) Slimline II Roof Rack Kit / Low Profile - by Front Runner

Consisting of: 1

x FATT004 - Toyota Tacoma (2005-2023) Foot Rails/Low Profile1x RRSTD06 - SLII Tray - 1255mm(W)X1156mm(L)1

x WDST010 - Wind Deflector 20mm Lip Narrow Pair /1255mm(W)

Material Used: Black epoxy powder - coated T6 aluminium

High strength steel

Approximate Installed

Weight: 24.51kg (54.04lbs) The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot or Grab-on Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2'') to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping

Dimensions: Width: 455mm (18'')Length: 1610mm (63'')Height: 240mm (9'')

Shipping

Weight:

Weight: 24.53kg (54lbs)

Kit Contents

• 1× FATT004 —
• 1× RRSTD06 —
• 1× WDST010 —

Fitting Instructions

• FATT004 — Fitting instructions (PDF)
