Baja Designs
30" S8 Straight LED Light Bar - by Baja Designs
30" S8 Straight LED Light Bar - by Baja Designs
SKU:703013
Regular price
$1,235.00 CAD
Regular price
Sale price
$1,235.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
ORDERED ON DEMAND

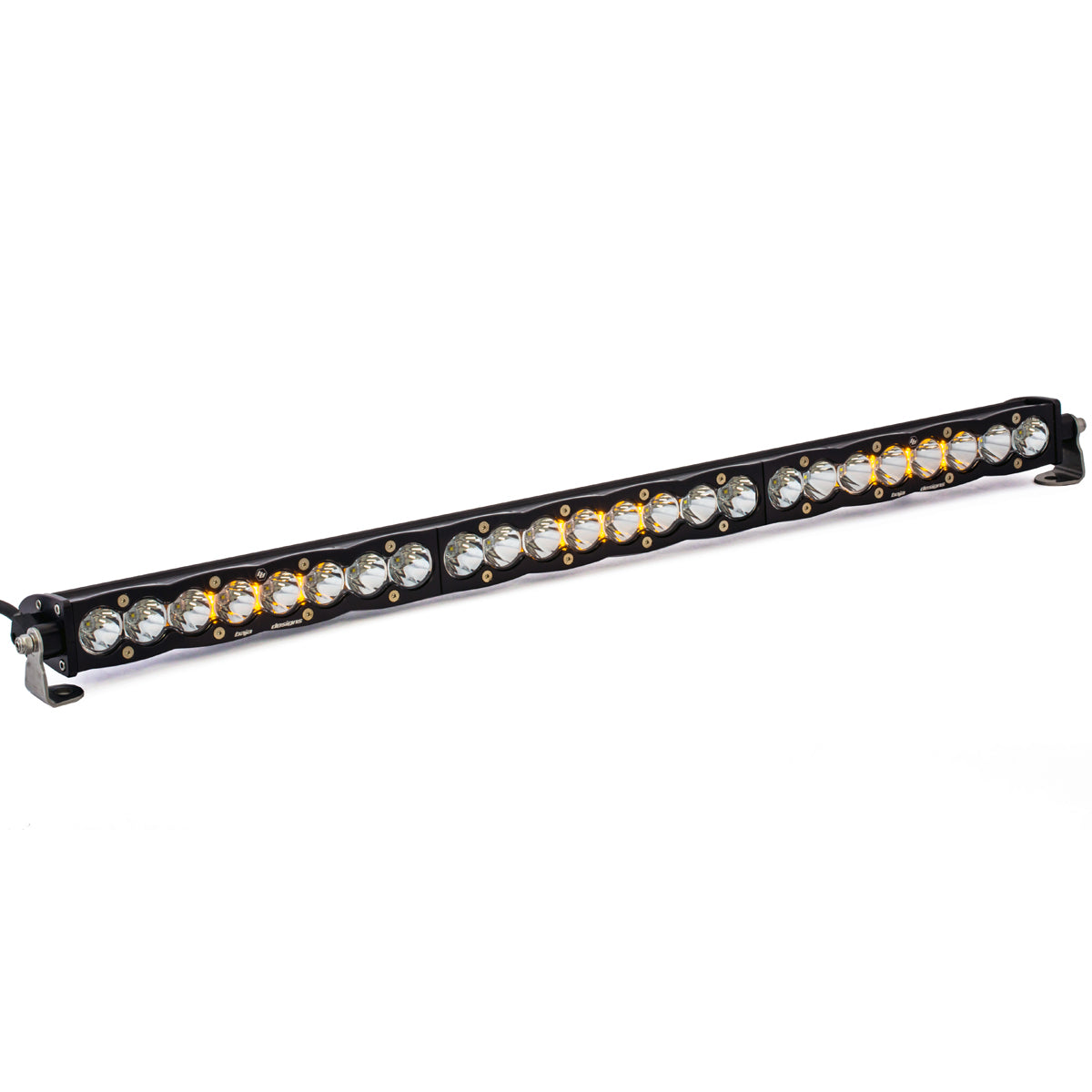

The S8 LED light bar from Baja Designs offers a slim and sleek design utilizing eight LEDs per 10-inch section. Lumens start at 6,324 for 10" section, the S8 is available from 10" to 50", features high-performance reflectors and the additional feature of an amber backlight makes the S8 a light bar that shines with your vehicle.
This light does NOT include a harness. The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10″-30″). Contact the Red Bear Crew for fitment, wiring recommendations or an installation quote.
Dimensions
| Depth (in.) | 3 |
| Height (in.) | 1.6 |
| Length (in.) | 30 |
| Weight (lbs.) | 6.5 |
Specifications
| Amperage Rating (A) | 12.0 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 19,050 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam/Amber Backlit Feature |
| Lighting Quantity | 24 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
