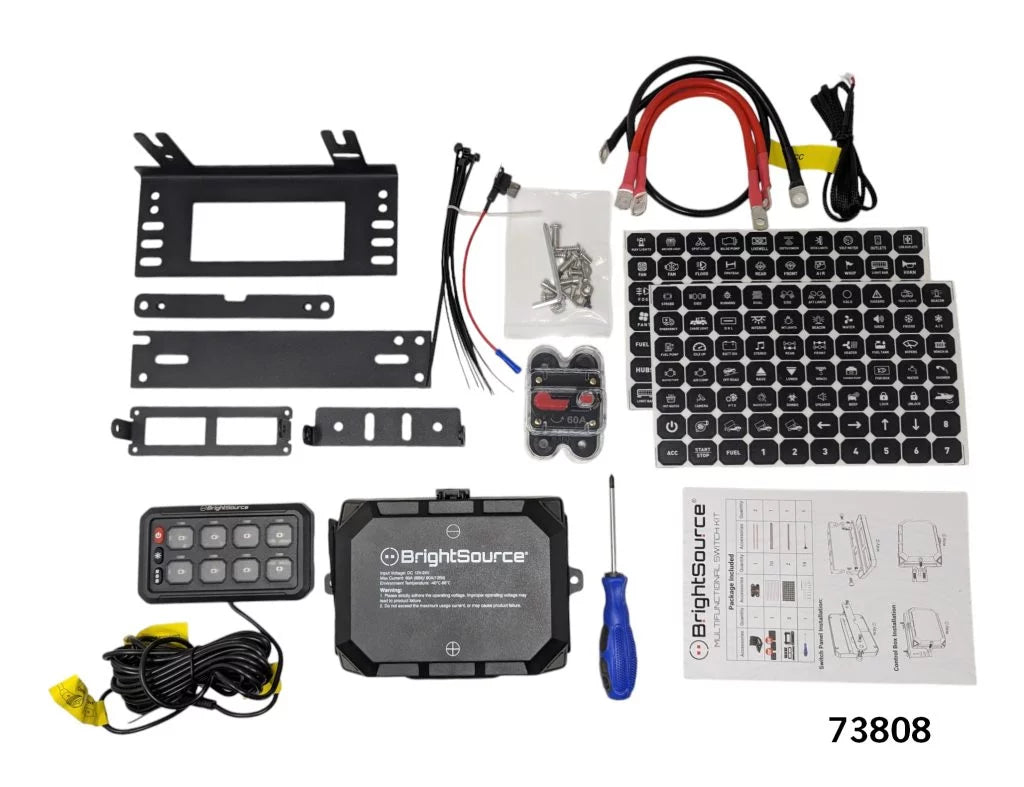

MultiFunction Switch Kit - by BrightSource
MultiFunction Switch Kit - by BrightSource
SKU:73806
Regular price
$249.00 CAD
Regular price
Sale price
$249.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
ORDERED ON DEMAND
BrightSource's auxiliary switch panel.
Features
- 3 Sizes: 6 Gang (73806) 8 Gang (73808), 12 Gang (73812)
- 4 Control Modes: Select from constant, momentary, flash, or strobe operation for versatile functionality.
- 3 Silicone Function Buttons: Power: On/off with memory function. RGB Lighting: Adjust background colour to suit your preference. Brightness Control: Choose from five levels — 100%, 75%, 50%, 25%, or 10%.
- 2 Power Source Options: Connect via the ACC circuit for ignition-based operation or directly to the battery for uninterrupted power.
- MOSFET relays are used exclusively due to their compact design, offering enhanced performance, efficiency, and reliability compared to traditional relays.
Specifications
| VOLTAGE | 12V/24V |
| OUTPUT RANGE | 73806/73808: 720W @12V, 1440W @ 24V 73812: 960W @12V, 1920W @ 24V |
| AMPERAGE | 73806/73808: 60A 73812: 80A |
| SWITCH PANEL | Powder coated aluminum |
| MOUNTING OPTIONS | Vertical and horizontal brackets supplied |
| MOUNTING BRACKETS | Powder coated aluminum, 3M adhesive |
| PANEL SIZE | 73806: 4″ x 2.8″ x 0.5”(103 x 72 x 13 mm) 73808: 5″ x 2.8 x 0.5″(127 x 72 x 13 mm) 73812: 5″ x 3.5″ x 0.5″(127 x 90 x 13 mm) |
| CIRCUITS | 73806: 1 x 10A; 2 x 15A; 2 x 20A; 1 x 30A 73808: 2 x 10A; 2 x 15A; 2 x 20A; 2 x 30A 73812: 4 x 10A; 2 x 15A; 2 x 20A; 4 x 30A |
| OPERATING TEMPERATURE | -40° – 105°C |
| IP RATING | IP65 |
| WEIGHT | 73806/08:4.71lbs/2.14kg 73812:4.78lbs/2.17kg |
| REPLACEMENT FUSES | 5 fuses supplied in case of emergency |
| WARRANTY | 2 Years |
