Diode Dynamics

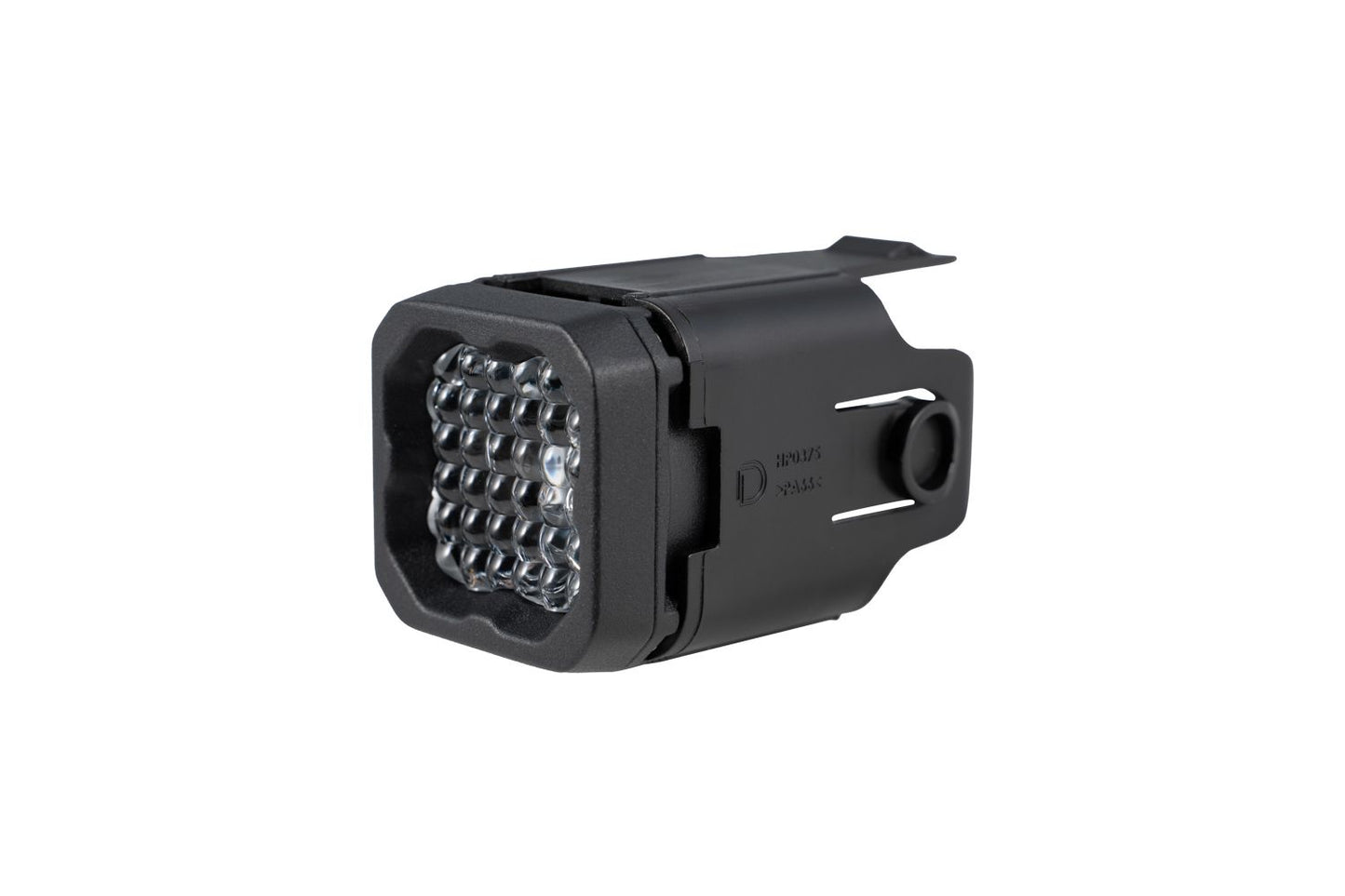

HitchMount LED Pod Light - by Diode Dynamics

HitchMount LED Pod Light - by Diode Dynamics

SKU:DD7420

Regular price $141.00 CAD
Regular price Sale price $141.00 CAD
Sale Sold out
Shipping calculated at checkout.
Style

Ordered On Demand

Add a high-power reverse light and additional running light with the C1 Sport - and an optional 4th brake light with the C1 R HitchMount by Diode Dynamics.

Features

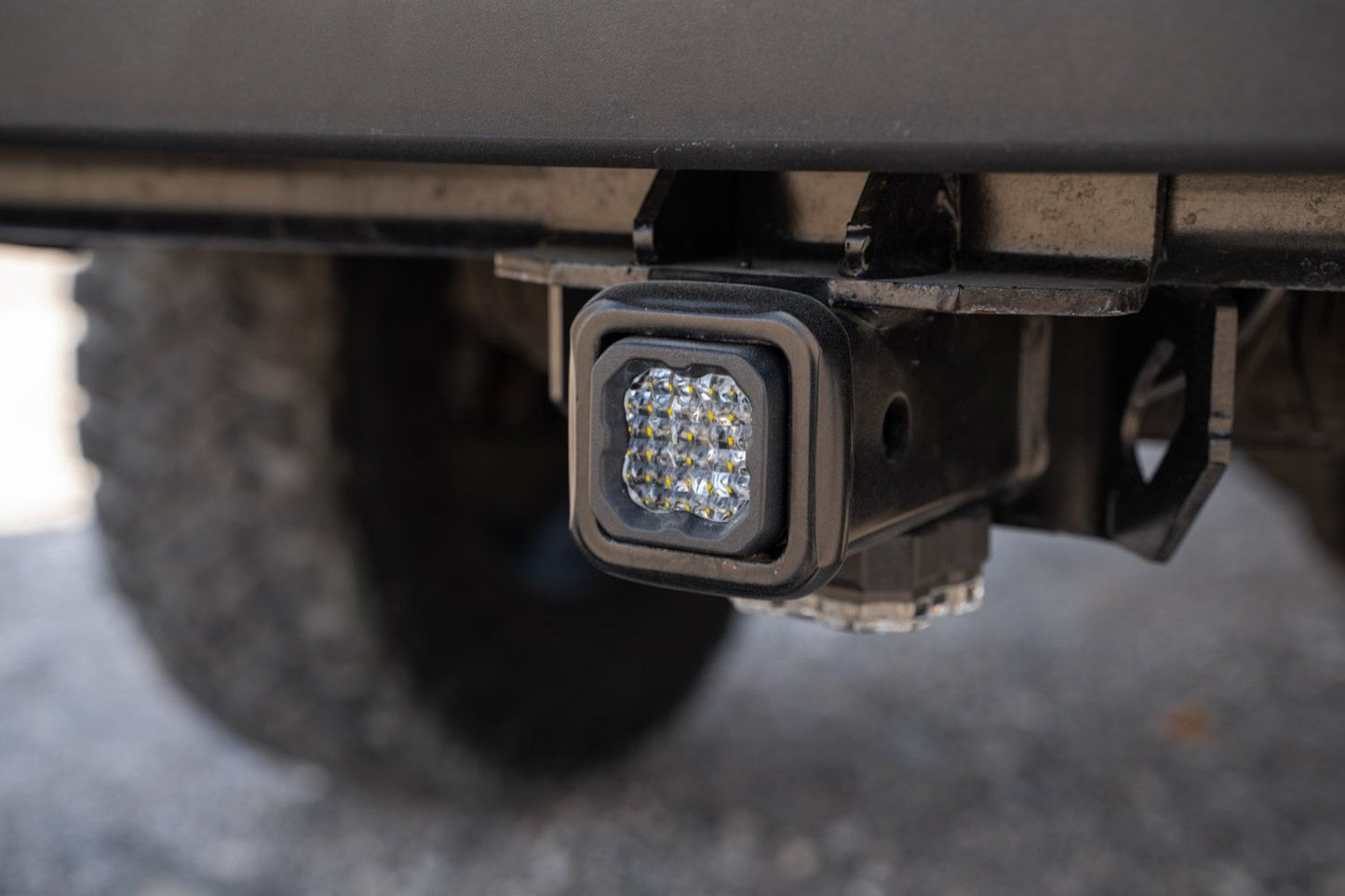

  • Allows you to mount an SSC1 or C1R LED pod in any 2-inch trailer hitch receiver.

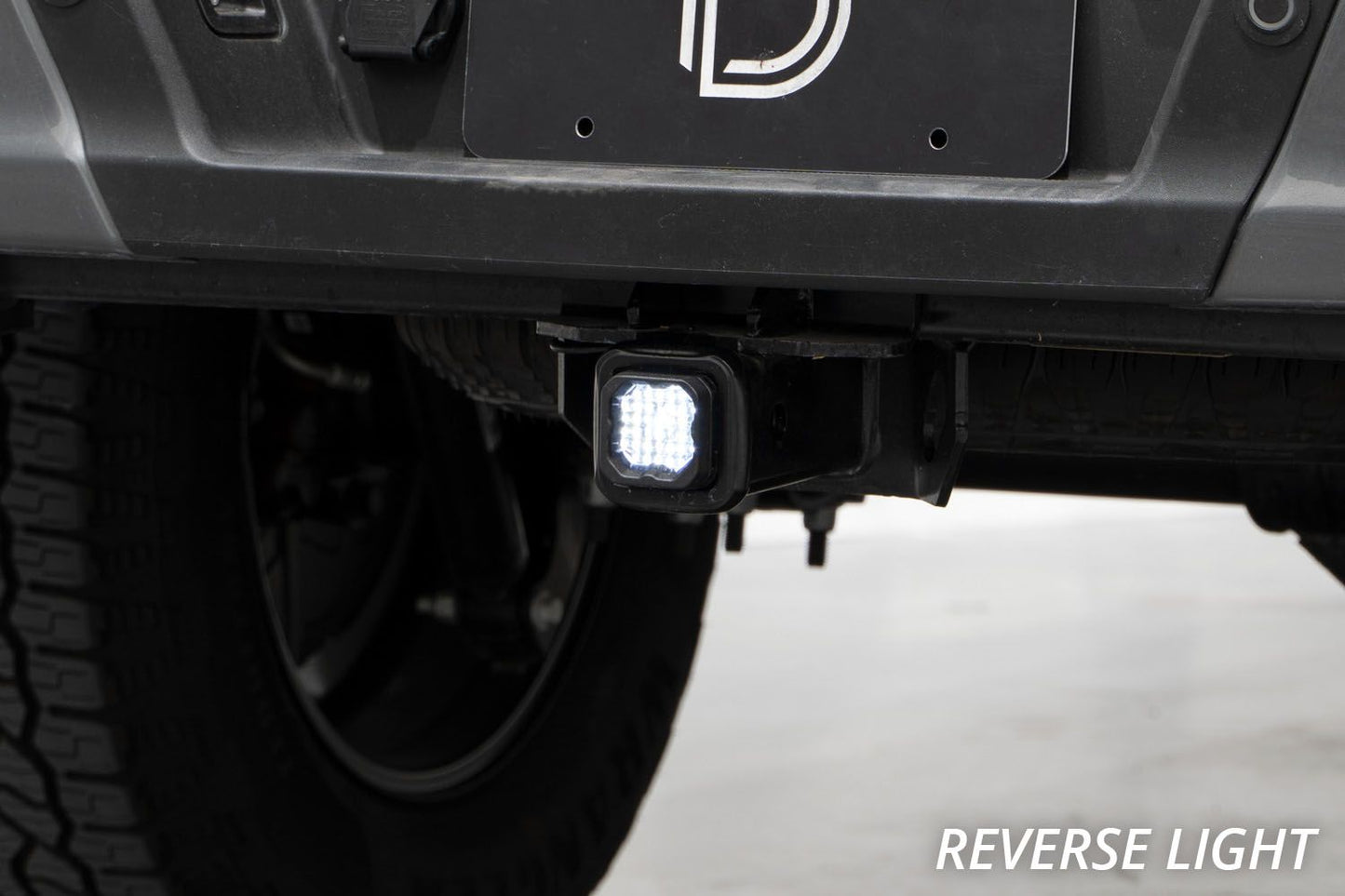

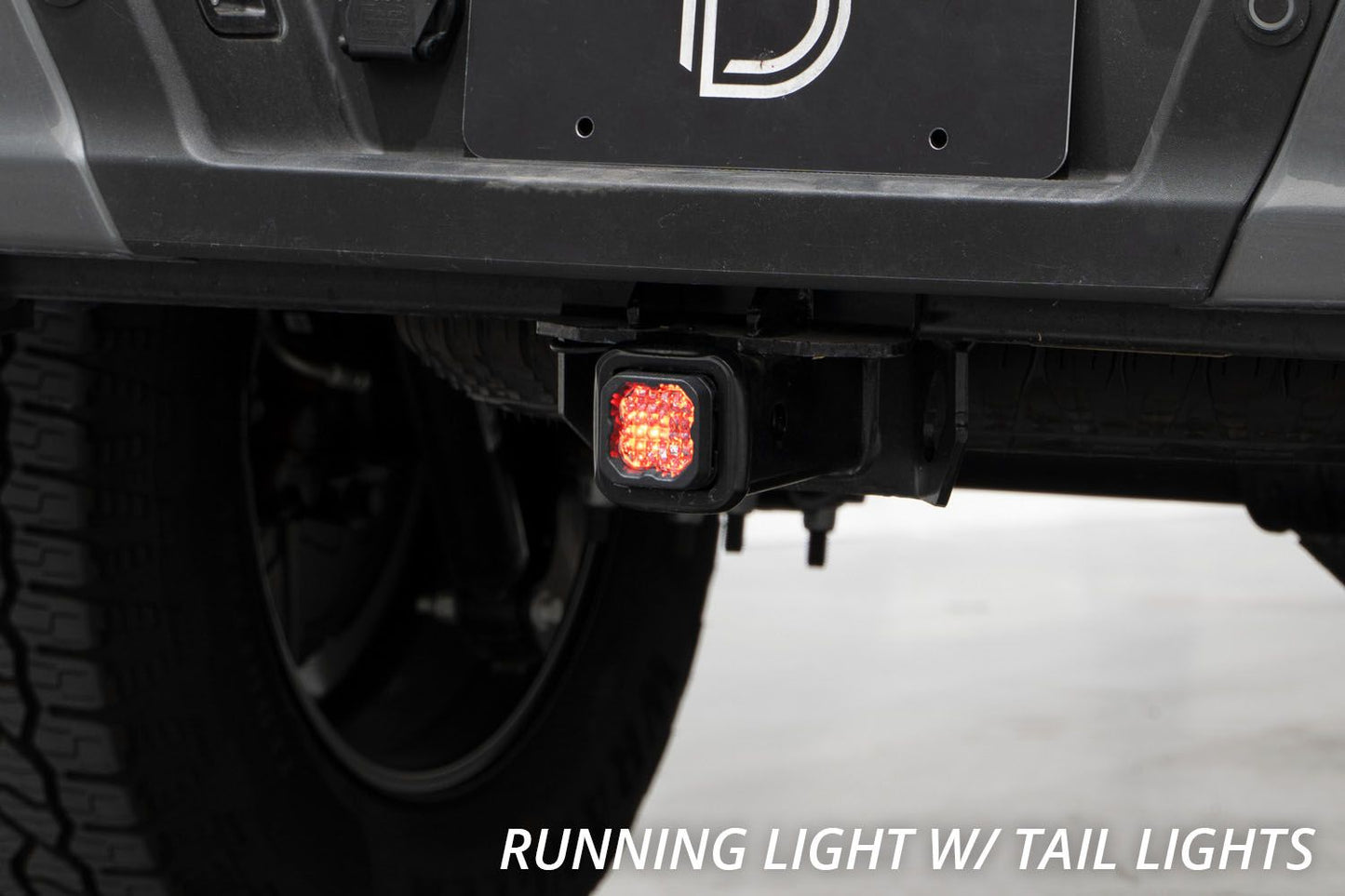

  • Adds a powerful reverse light and additional running light.
  • C1R adds 4th brake light with strobe capability for added safety.
  • Simple 5-minute installation, with no need for custom wiring or routing wires.
  • Optional SafetyStrobe brake light strobing.
  • Designed and assembled in USA.

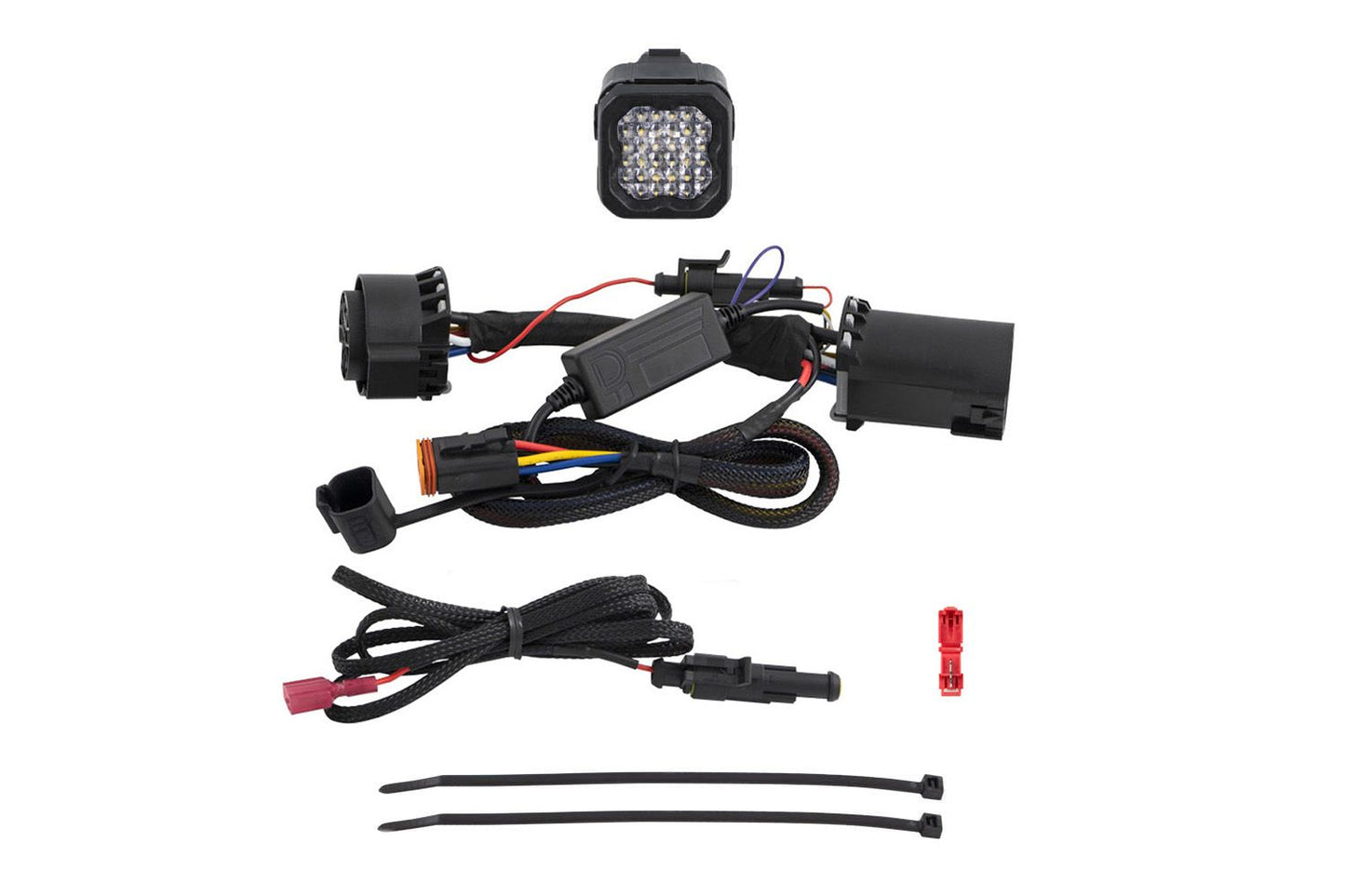

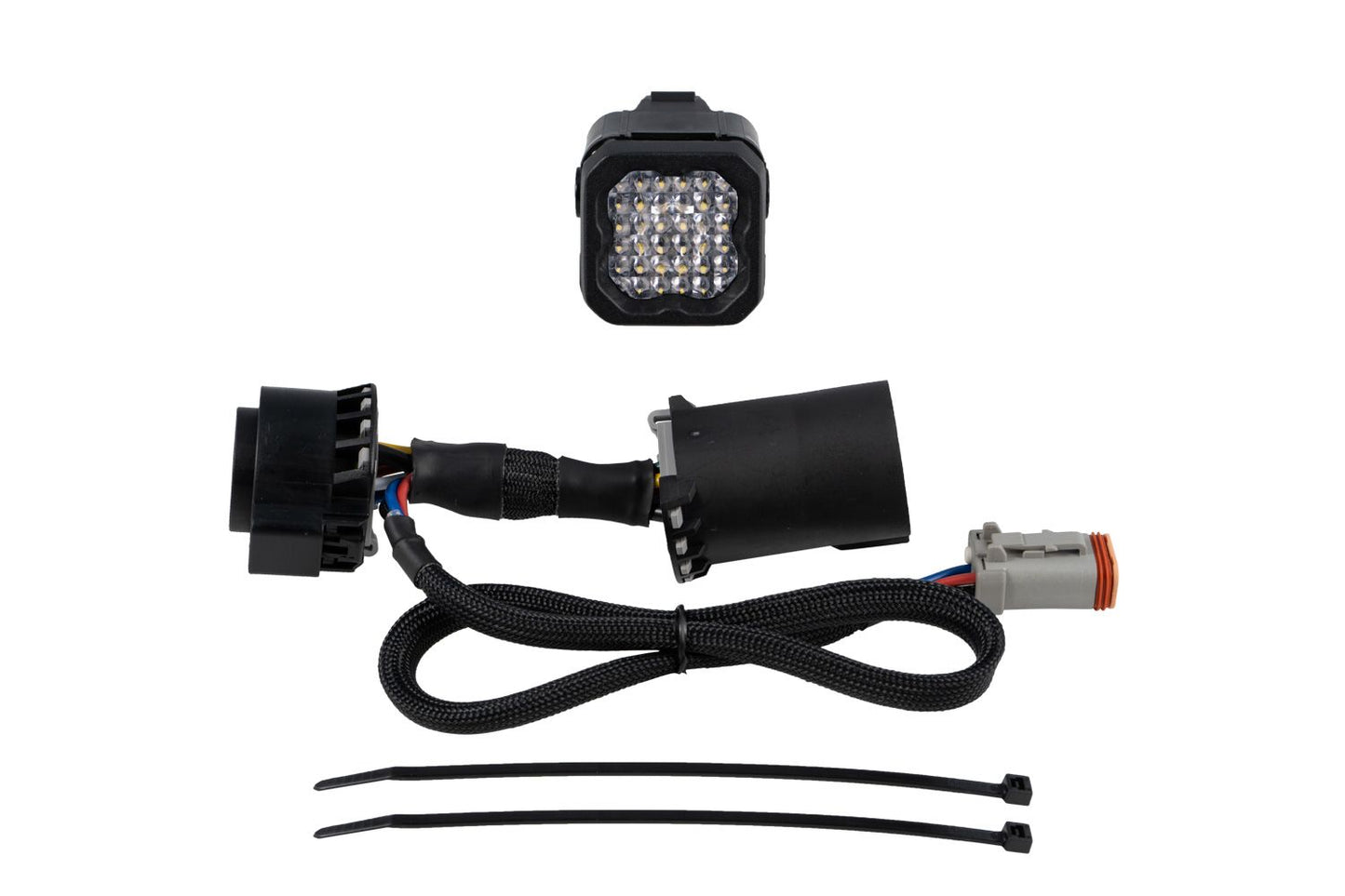

In The Box

  • One (1) SSC1 Sport or C1R HitchMount LED Pod
  • One (1) 7-Pin trailer single output harness
  • Two (2) Zip ties
  • One (1) T-Tap (C1R Only)
  • Installation guide

Fitment

Newer trucks with trailer management systems monitor the power draw on the trailer connector in order to automatically modify vehicle settings when a trailer is connected. Depending on the year and make of your vehicle, the HitchMount LED may interact with this system if equipped.

The following vehicles require a vehicle-specific harness.

  • 2015-2020 Ford F150
  • 2021+ Ford F150
  • 2006-2015 Toyota Tacoma
  • 2019+ GMC Sierra
  • 2019+ Chevrolet Silverado 1500

Jeep: No trailer is detected, no warning messages.

Contact the Red Bear Crew to confirm vehicle fitment.

Specifications

  • Color Temp (CCT): 6000K
  • Power (watts): SSC1 Sport: 12.8
  • Operating Voltage: 9-16V
  • Current (amps @ 12.8V): SSC1 Sport: 1
  • Polarity: Polarity Specific
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • LED Emitter: Cree XP-L HI
  • Connector(s): Deutsch DT Input
  • Driver Features: Constant Current
  • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
  • Cooling: Passive, Pin-Fin heatsink
  • Compliance Ratings: SAE J575 Durability Test
  • Intrusion Ratings: IP67 Weatherproof
  • Unit Weight (lb): 0.35
