Toyota 4Runner (5th Gen) Slimline II Roof Rack Kit - Front Runner

ORDERED ON DEMAND

CONTACT US FOR INSTALL QUOTES

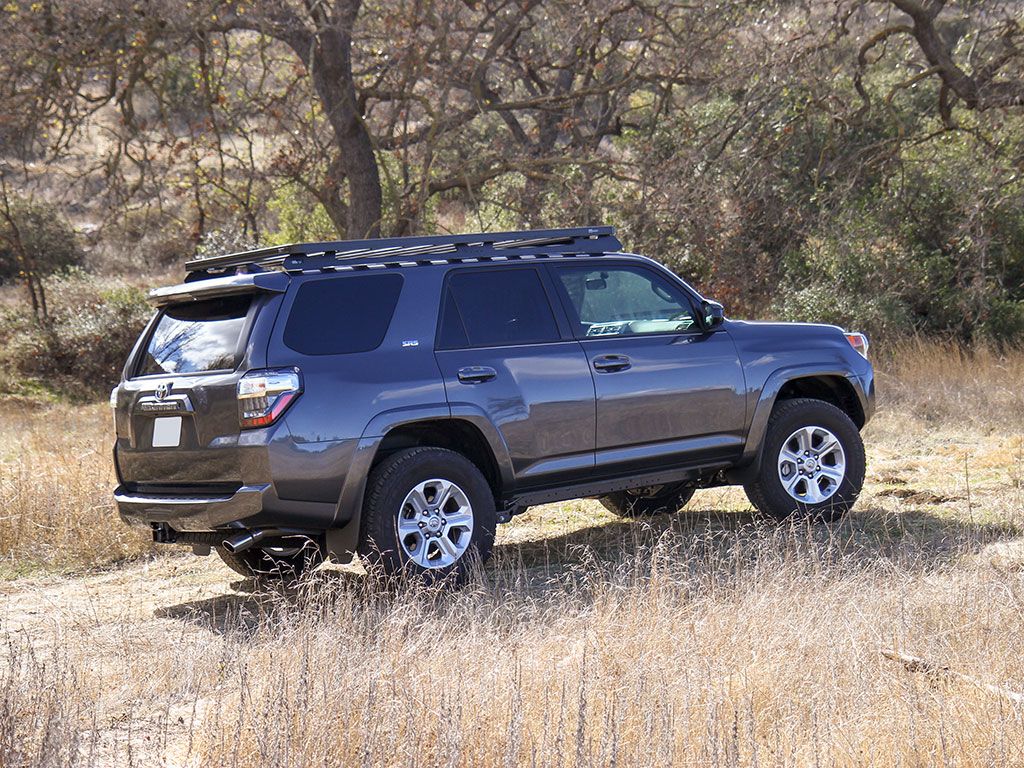

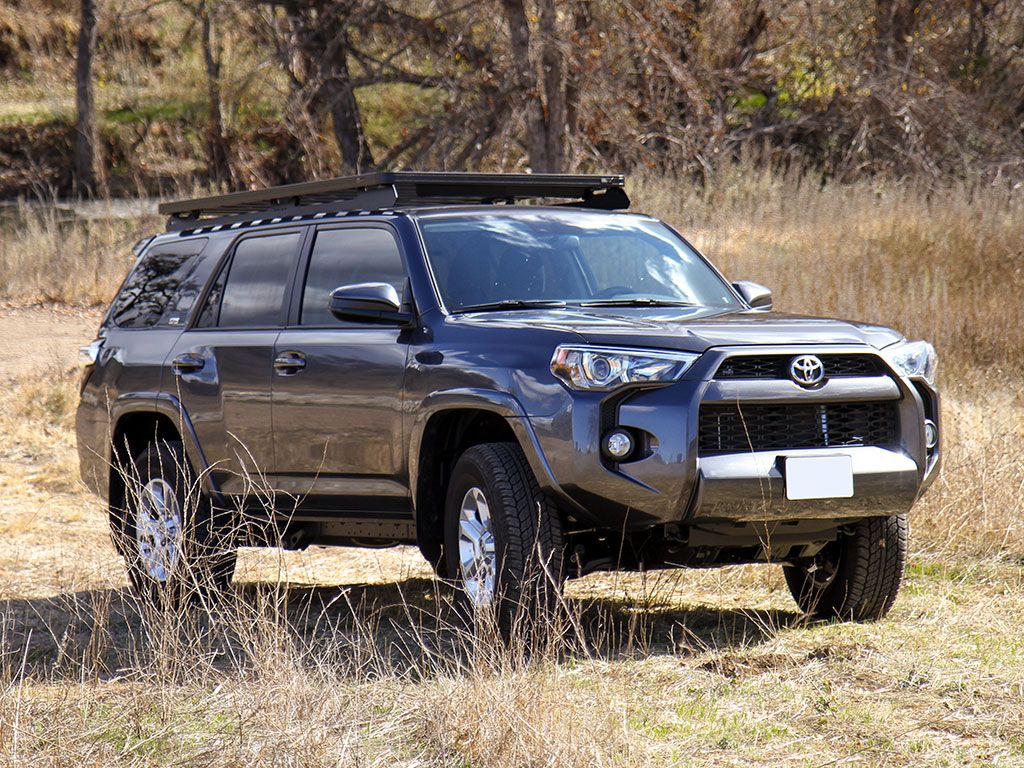

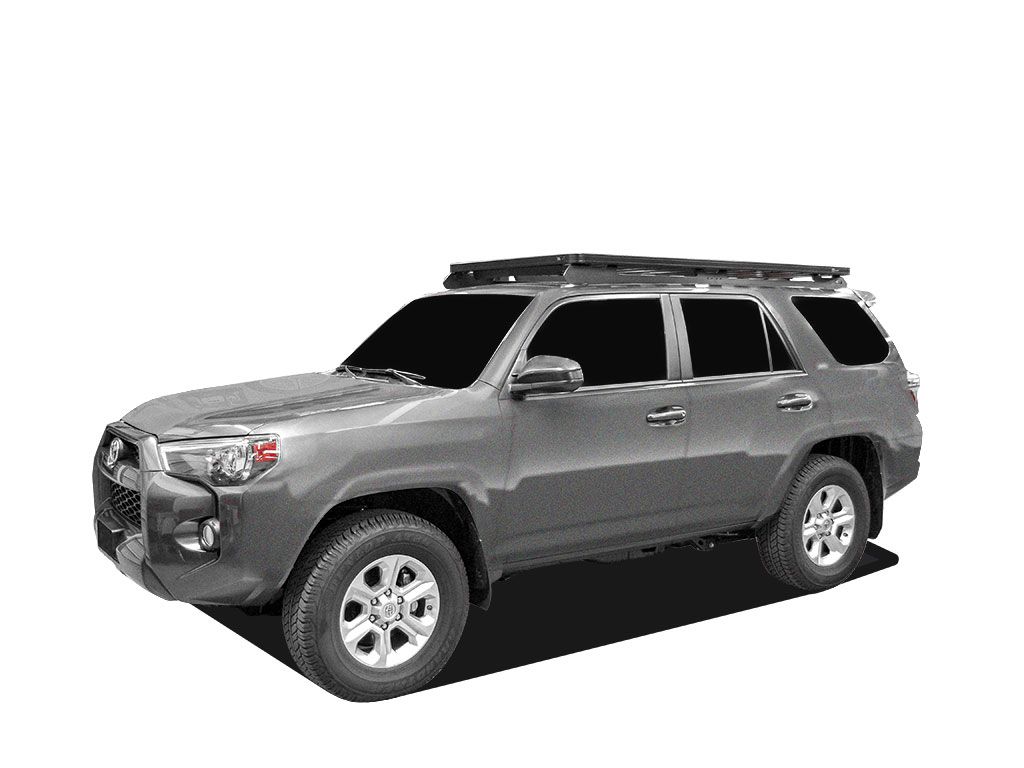

Gear up your 5th Gen Toyota 4Runner for your greatest adventures with this Slimline II Roof Rack Kit. The kit allows you to permanently install the rack, or mount it drill-free for easier removal when necessary.

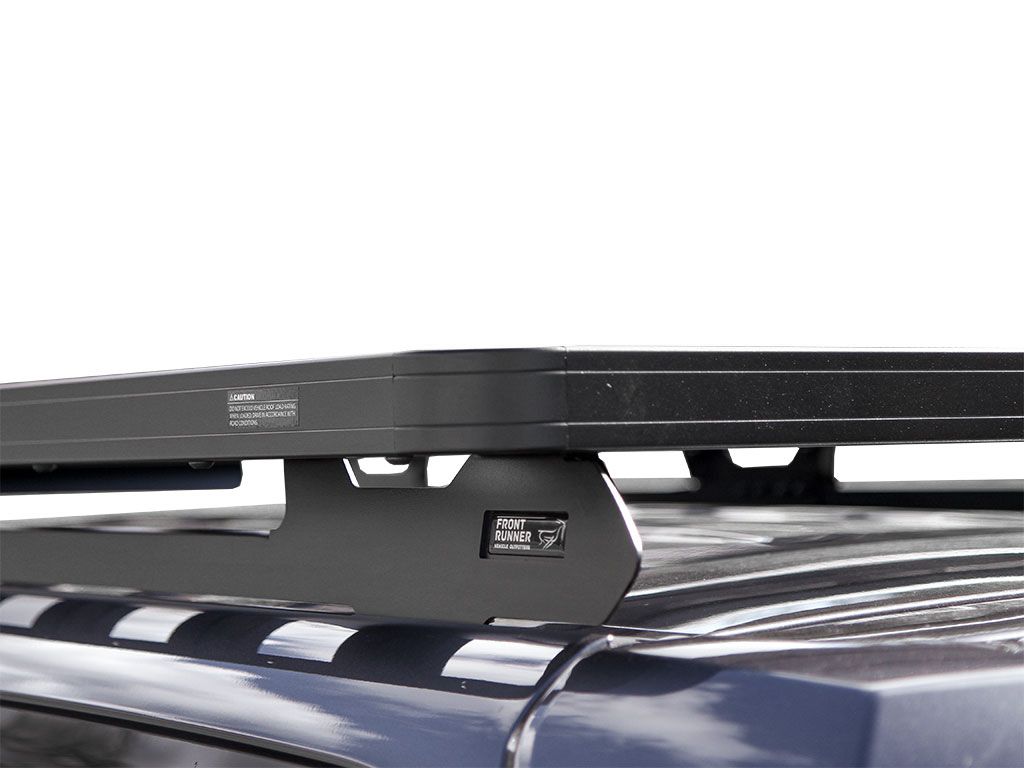

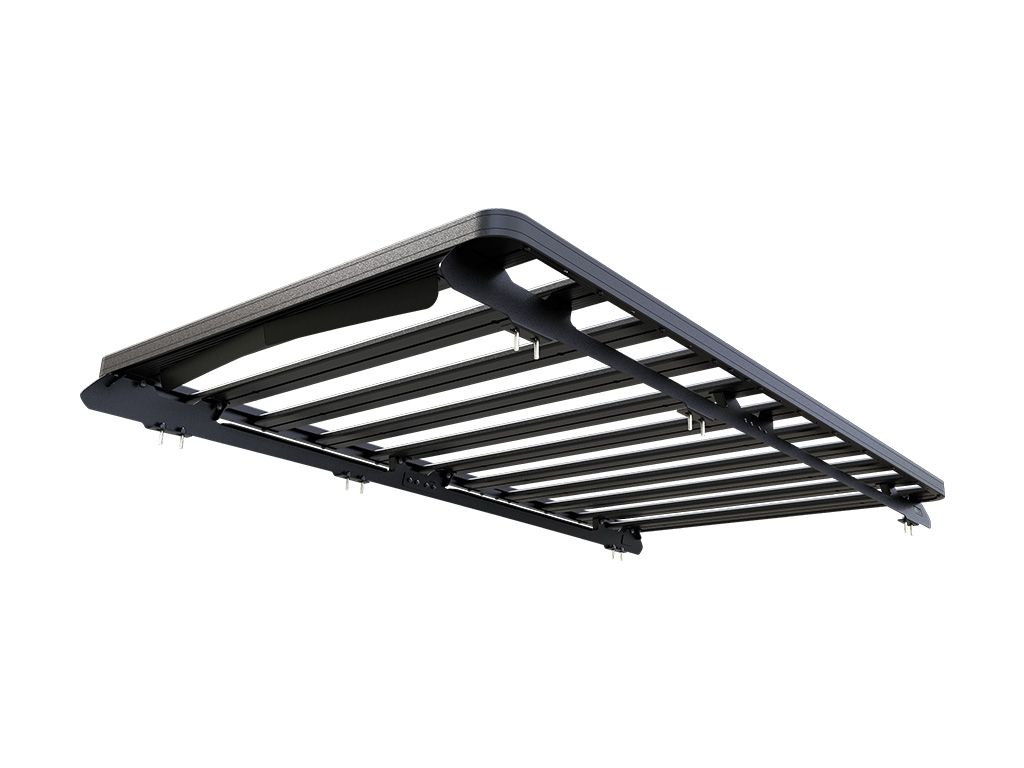

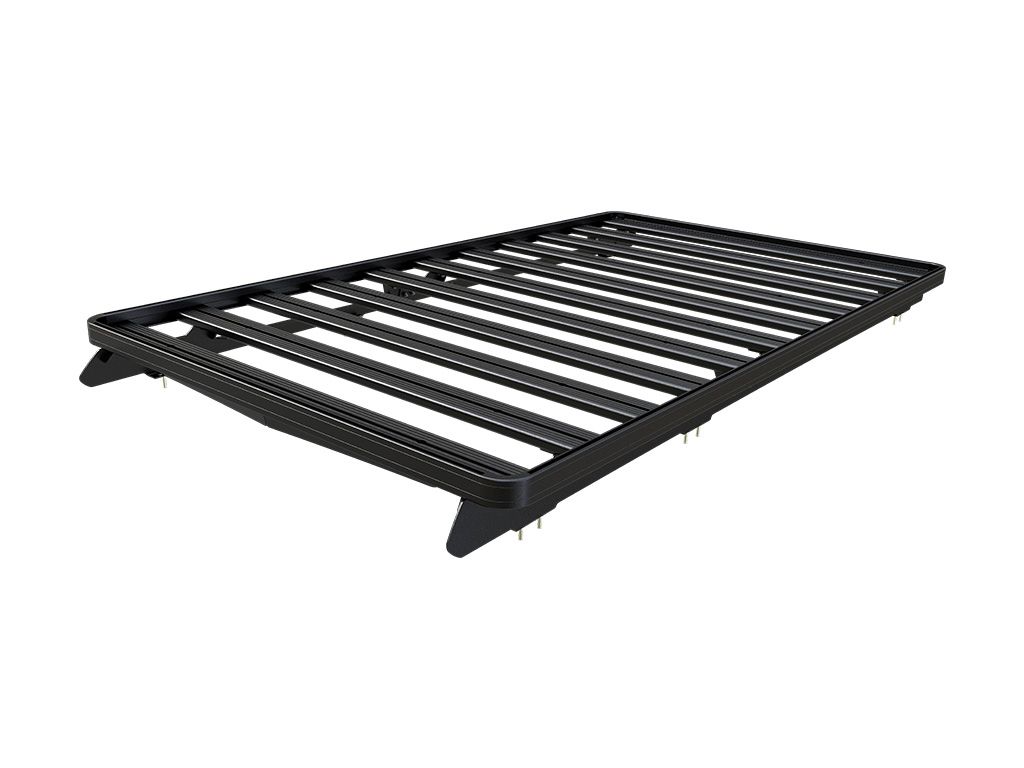

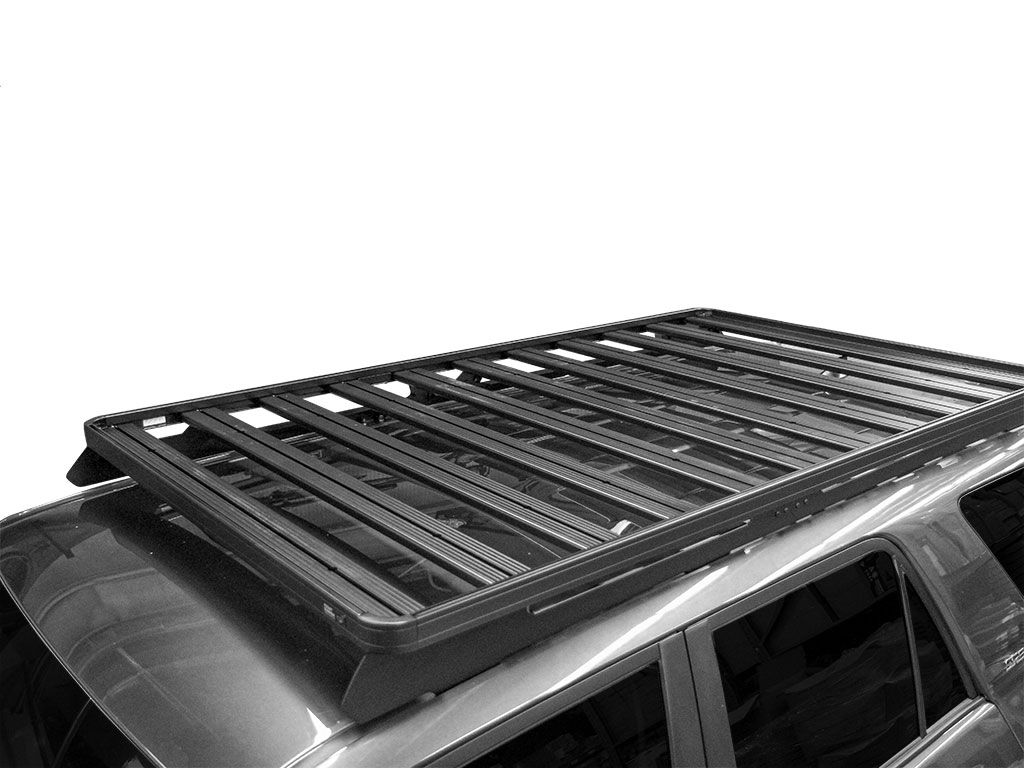

This 2166mm/85.3” full-size Slimline II Cargo Roof Rack Kit contains the Slimline II Tray, Wind Deflector and a set of Foot Rails to mount the Slimline II Tray to the 5th Gen Toyota 4Runner. Easily install using the eight existing factory mounting points. Drilling and no drilling mounting options are included to secure the front Foot Rails.

Consisting of:

1x FATF006 - Toyota 4runner (2009-Current) Full Rack Foot Rails
1x RRAC961 - Toyota 4Runner (5th Gen) No Drill Installation Kit
1x RRSTD11 - SLII Tray - 1255mm(W)X2166mm(L)

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 41.379kg (91.22lbs)

Specifications

KRTF054T - Toyota 4Runner 5th Gen (2010-2024) Slimline II Roof Rack Kit

Consisting of: 1

x FATF006 - Toyota 4runner (2010-2024) Foot Rails1

x RRAC961 - Toyota 4Runner (5th Gen) No Drill Installation Kit1x RRSTD11 - SLII Tray - 1255mm(W)X2166mm(L)

Material Used: Black epoxy powder - coated T6 aluminium

High strength steel

Approximate Installed

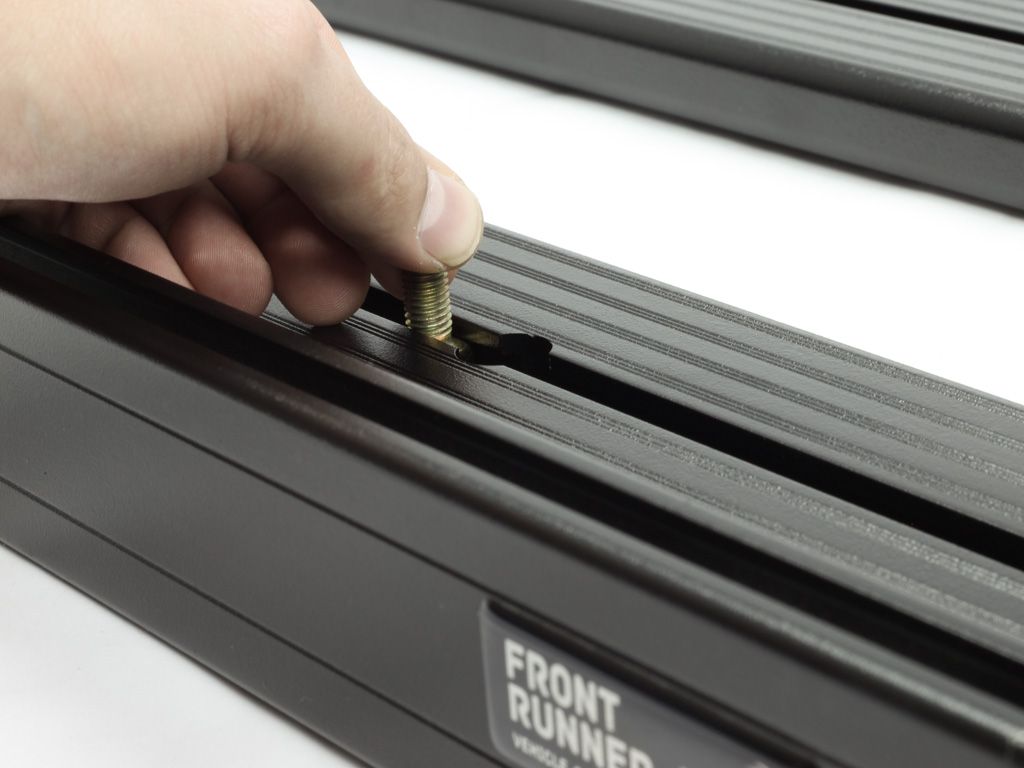

Weight: 41.379kg (91.22lbs) The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot or Grab-on Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2'') to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping

Dimensions: Width: 450mm (18'')Length: 1730mm (68'')Height: 140mm (6'')

Shipping

Weight:

Weight: 41.84kg (92lbs)

Kit Contents

• 1× FATF006 —
• 1× RRAC961 — Toyota 4Runner (5th Gen) No Drill Installation Kit
• 1× RRSTD11 —

Fitting Instructions

• FATF006 — Fitting instructions (PDF)
• RRAC961 — Toyota 4Runner (5th Gen) No Drill Installation Kit (PDF)
