20″ Titanium E-Marked Single Row - by Strands

20″ Titanium E-Marked Single Row - by Strands


Regular price $284.00 CAD
Regular price Sale price $284.00 CAD
Sale Sold out
Shipping calculated at checkout.

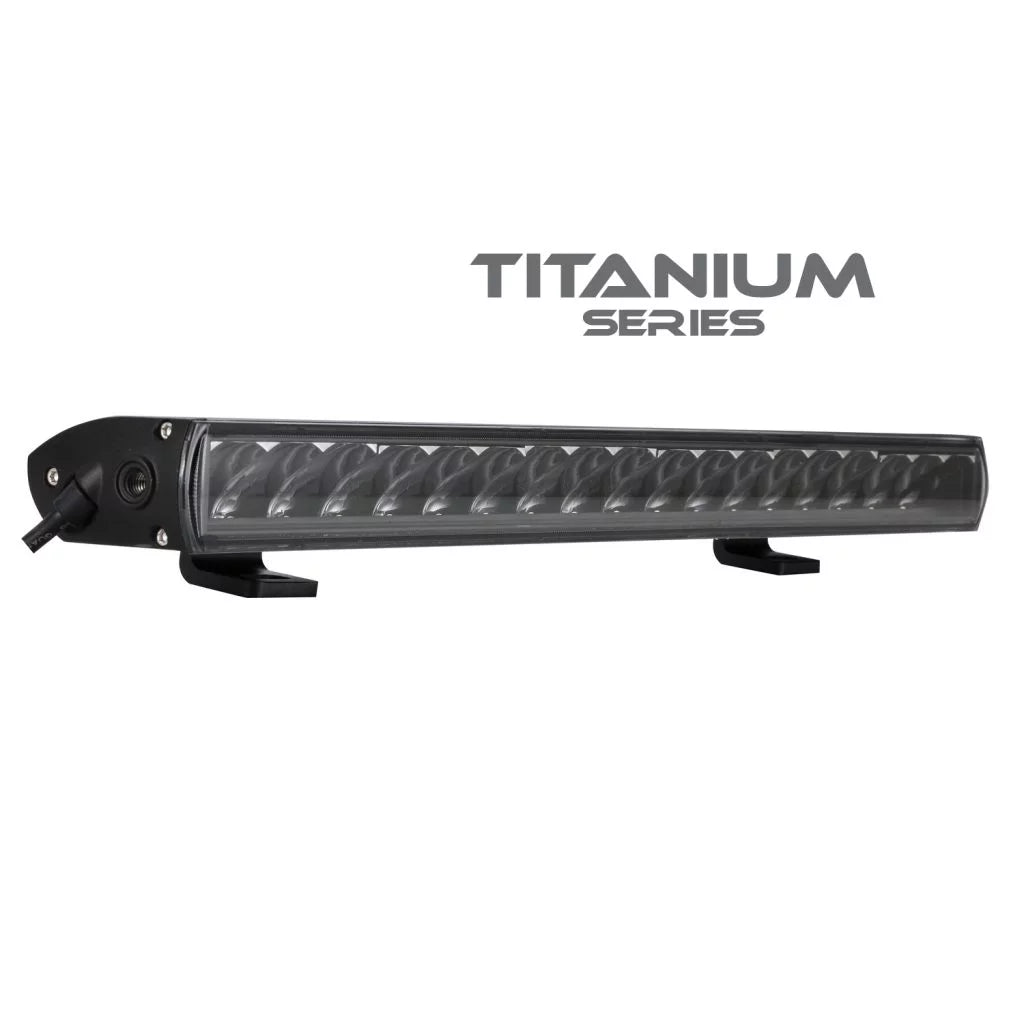

Our Titanium Series is our peak performance line. The concept is to combine a distinctive dark cosmetic lens and innovative housings with unmatched beam focus and stunning light output. These innovations are shaking up the traditional double row, forward-facing, LED light bar world.

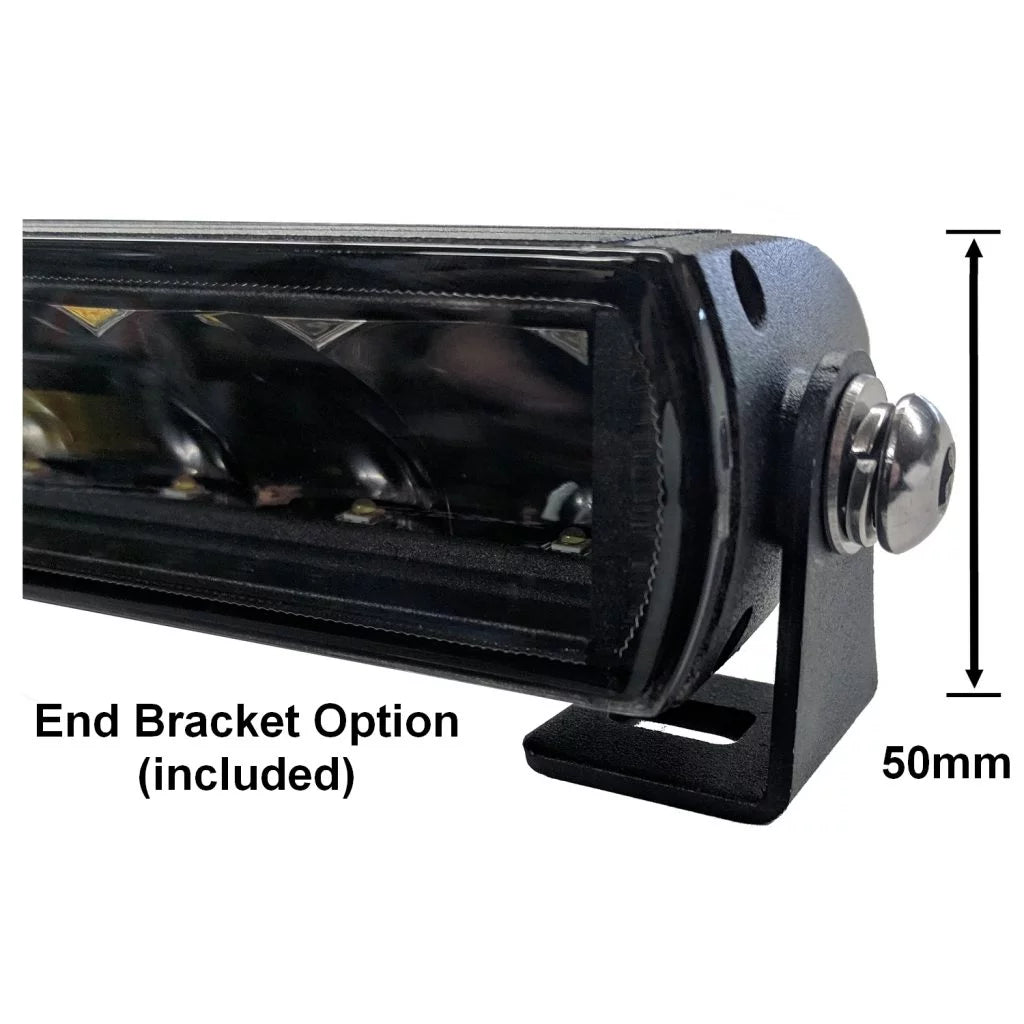

This light provides excellent focus and long-range visibility (1 lux at 448m), along with a slim profile and smoky lens are the key features in this 20” LED Light Bar. The E-Mark designates this lamp as street legal* for use as a high beam auxiliary driving light. Side and back mount brackets make for easier customized installations. A Centre Connect Kit (P/N 772000) is available to connect two lamps, which allows you to create the bar length you need.

E-Mark Street Legal*, Long Range Driving Light
Slim profile, smooth, clean look with no bezel housing
Dark lens cosmetic with stunning bright white output
Add a second light with the Centre-Connect kit
5 Year Limited Warranty


LED: 18 x 5W LG
Beam Pattern: E-Mark Combo Pattern
Colour Temperature: 6500K
Luminous Flux: 8100 lm (Raw) 6950 lm (Effective)

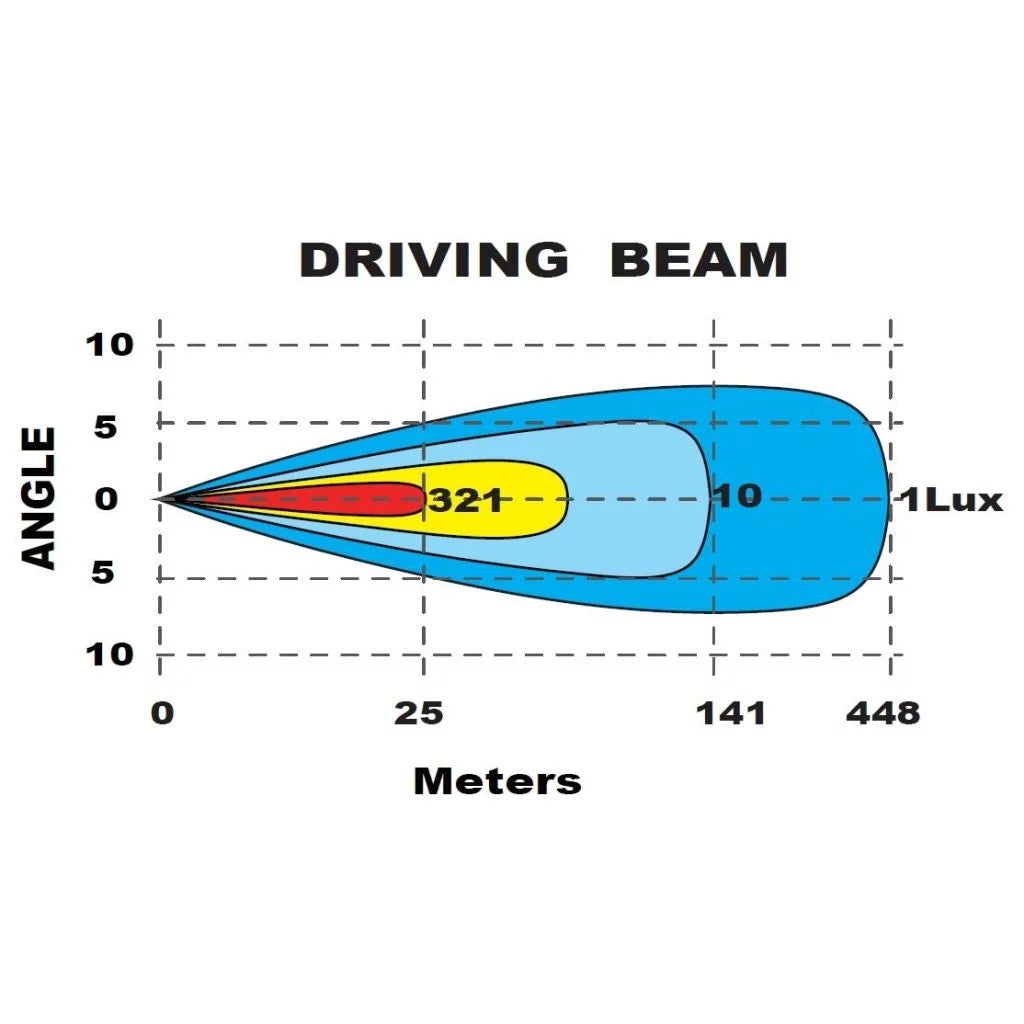

Lux: 1 Lux @ 448m
IP Rating: IP68 with Waterproof Breather
Voltage: DC9-30V
Wattage: 90W
Amperage 12V/24V: 6.2A/2.8A
Reverse Polarity Protection: Yes
Over-Under Volt. Protection: Yes
Electro Thermal Management: Yes
Side Reflecting Optic System: Yes
Housing Material: Aluminum with Anodized Polyester Powdercoat
Temperature Range: -40 – +60°C
Lens Material: Lexan Polycarbonate
Mounting Bracket: Side and Bottom

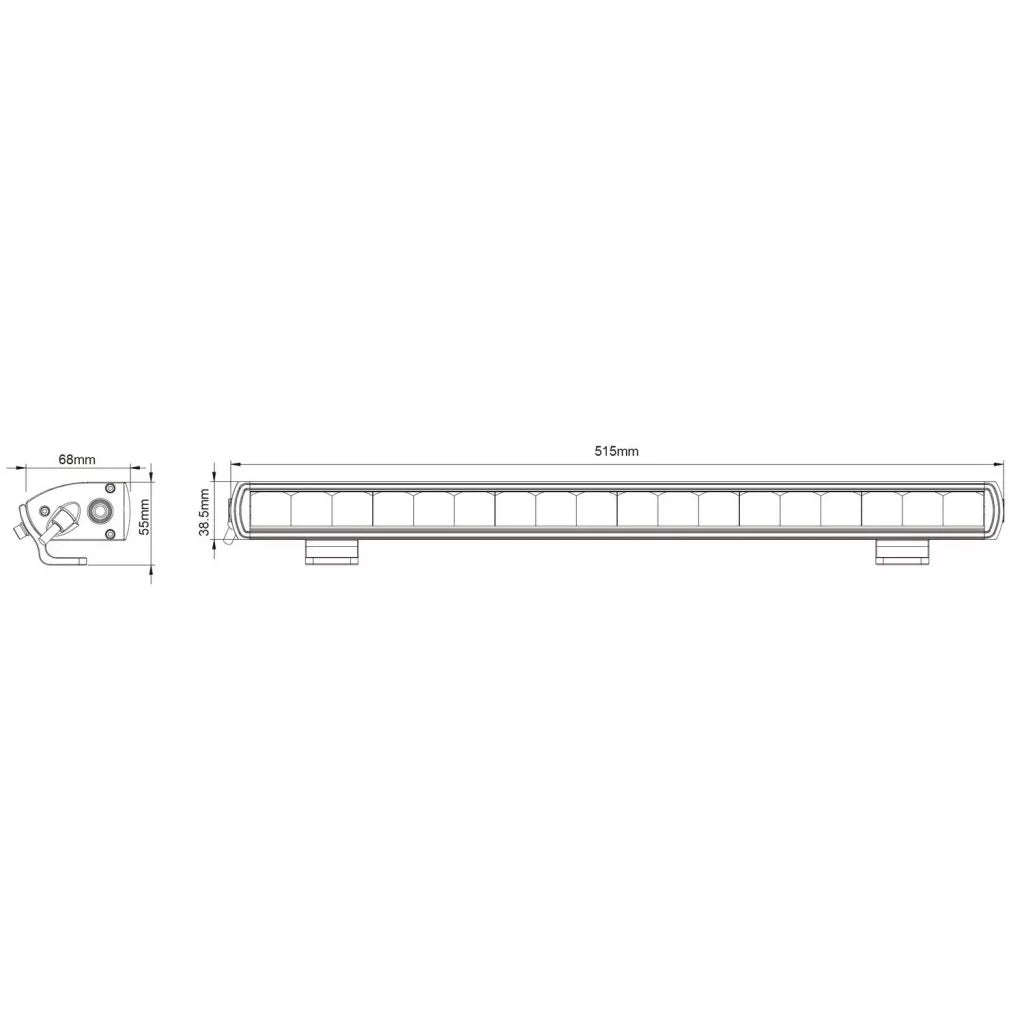

Dimensions: 515 x 38.5 x 68mm (20.3 x 1.5 x 2.7″)
Harness: For 1 Lamp, PN 72999; for 2 Lamps PN 73240
LED Lifespan: 50,000+ hrs
Certification: E-Mark ECE R112/R10, CE, RoHS
Warranty: 5 Year Limited

*Except AB, SK, MB and the U.S. Always check local laws for product installation requirements
