2.75 Driving Pattern Cube Light - by Brightsource

 ORDERED ON DEMAND

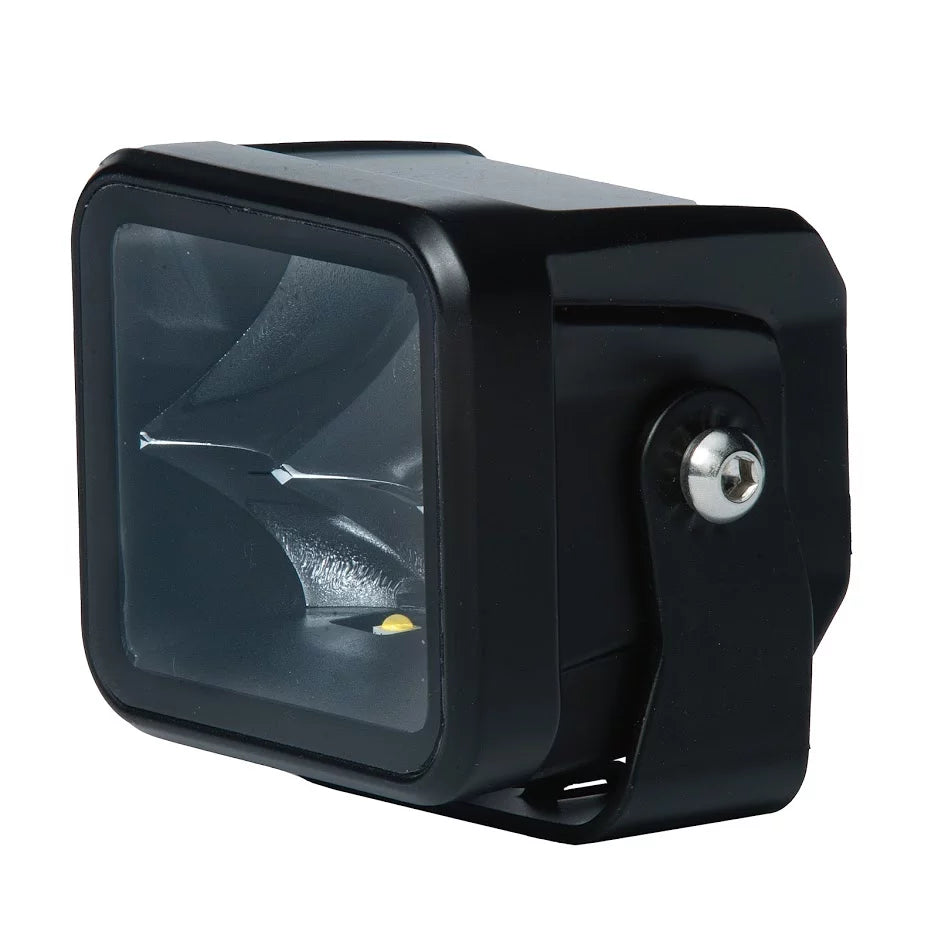

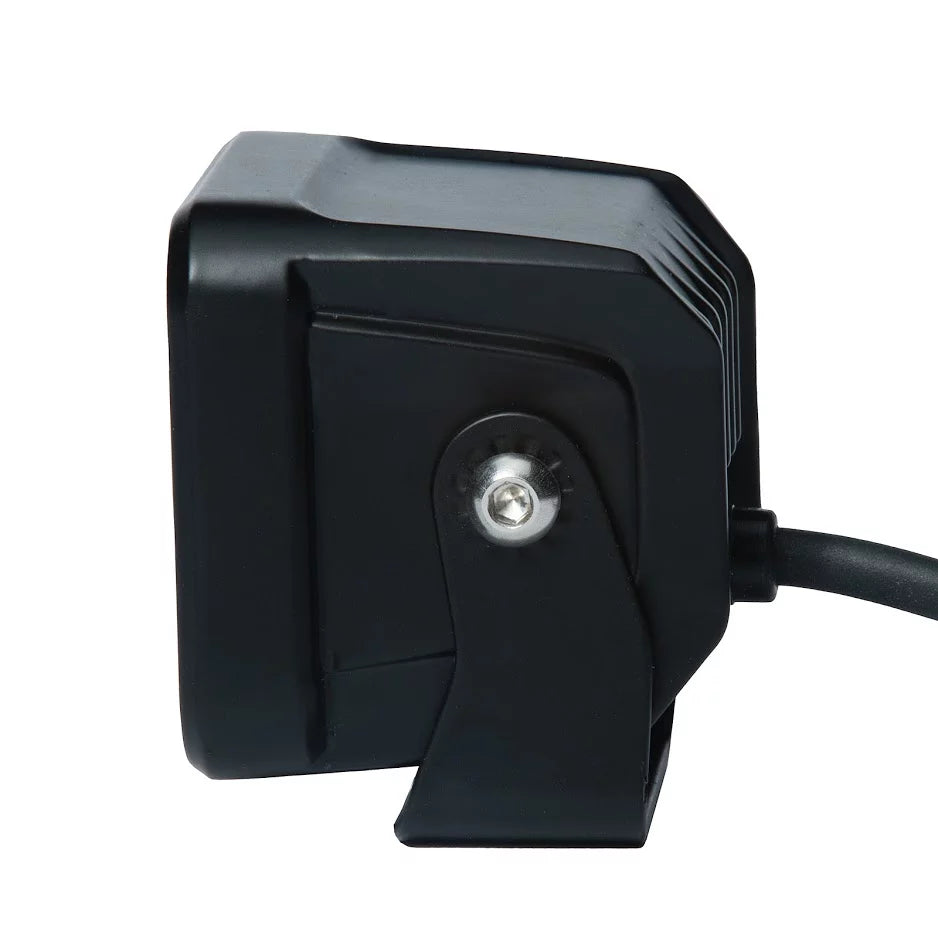

This new BrightSource RFB Cube Light has a fantastic design combination – unique Titanium Series styling and a power punch in light output. With a bezeless housing, this cube looks smaller than our older models – and it is – making for more individualistic install options. However, the actual size of the lens/reflector is the same size as our earlier cube’s lens/reflector unit – it is just a more efficient use of space. The dark cosmetics of these cubes are reminiscent of our Titanium Series light bar selection. Like those light bars, the cubes have a focused, long range light output. The 20W side-emitting Osram LED chips extend the visibility range to 252m! Ideal for all pick up trucks, Powersports vehicles, back up light functions, work light options – but please note, this is an Off-Road Auxiliary Light, not for highway use.

Specification:

LEDs: 4 x 5W Osram

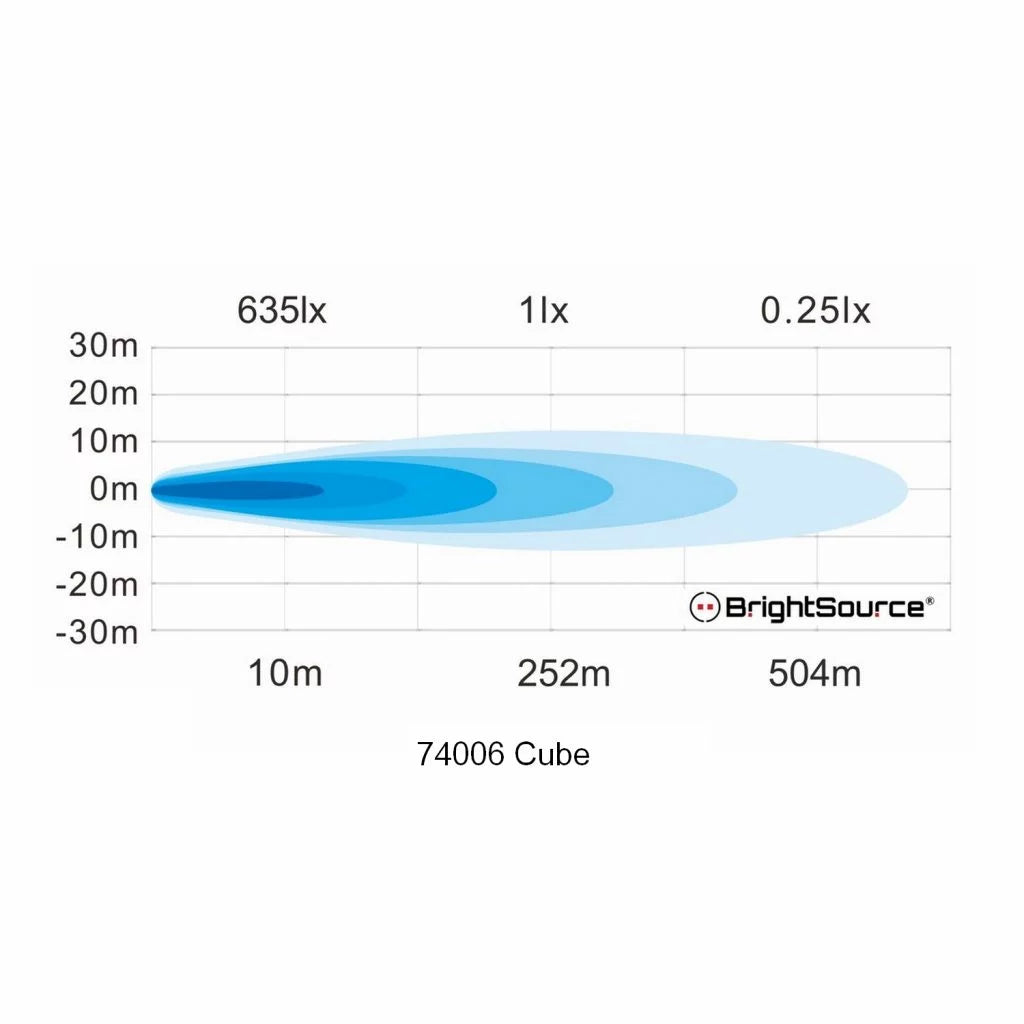

Beam Pattern: Driving
Colour Temperature: 5700K
Luminous Flux: 1920 lm (Raw) 1751lm (Effective)
Lux: 1 Lux @ 254m
IP Rating: IP67/69K with Waterproof Deutsch Connectors
Voltage: DC 10-30V
Wattage: 20W
Amperage 12V/24V: 1.5A/0.75A
Reverse Polarity Protection: Yes
Over/Under Voltage Protection: Yes
Harness: Integrated Relay/Switch/Deutsch Connectors, Plug and Play – Included
Temperature Range: -40 – + 60°C
Housing Material: Die-cast Aluminum with Powdercoat
Lens Material: Epoxy Encapsulated Polycarbonate
Mounting Bracket: Powder coated Steel bracket and 304 stainless steel hardware

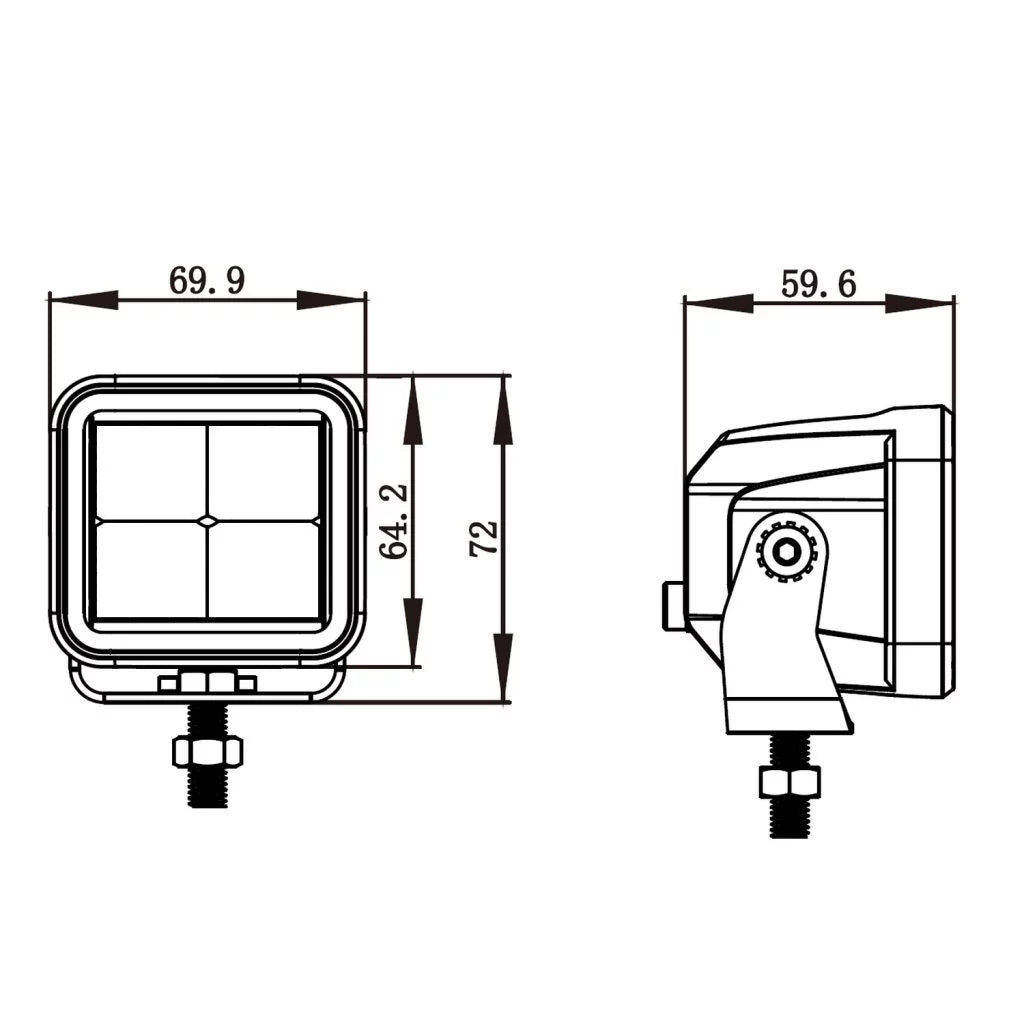

Size: 69.5 x 72 x 60 mm (2.7 x 2.8 x 2.4″)
LED Lifespan: 30,000+ hrs
Warranty: 5 Year Limited

What’s included: This kit includes two lamps and a harness
