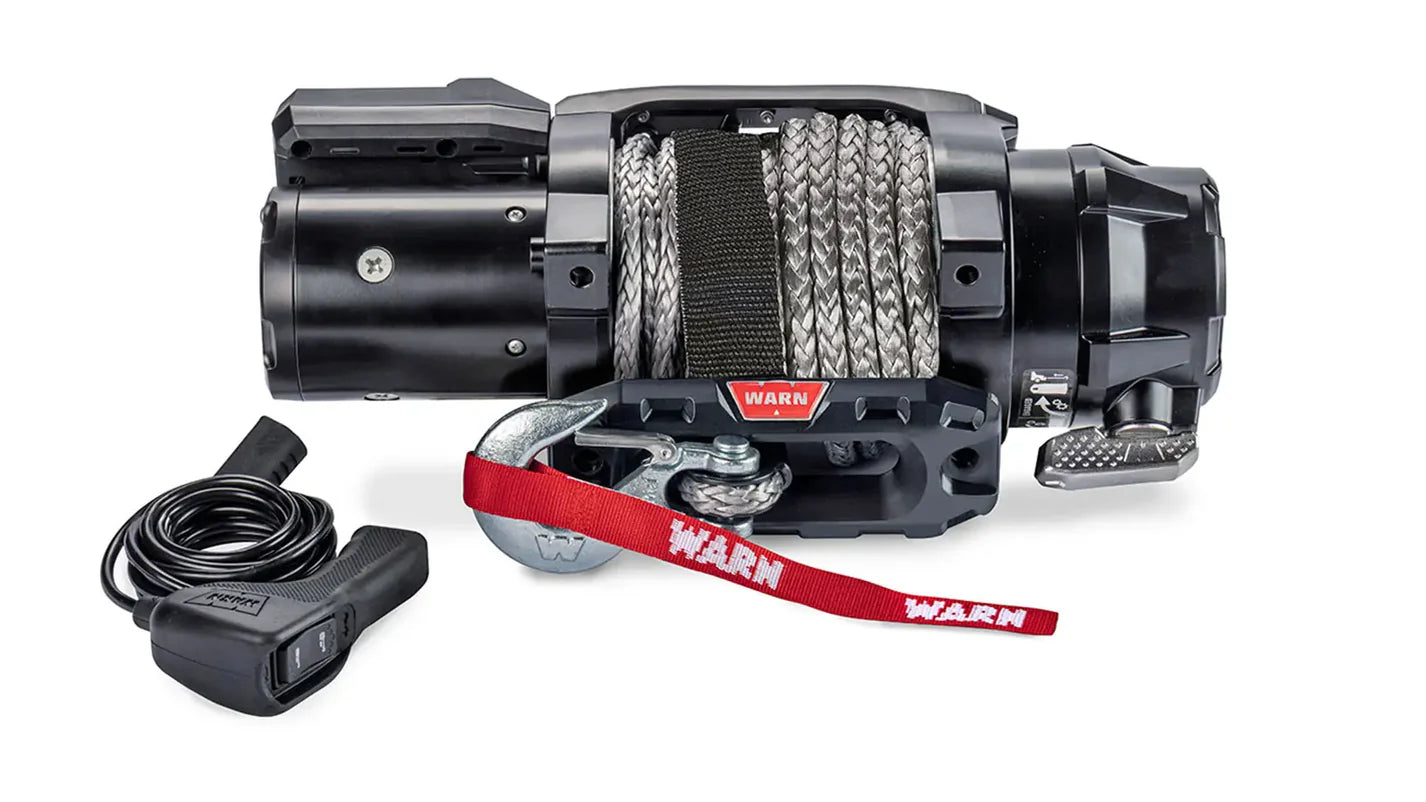

ZEON XC 12-S Winch for WARN Fully Hidden Kits - by WARN

ZEON XC 12-S Winch for WARN Fully Hidden Kits - by WARN

112356

$2,820.50 CAD
$2,820.50 CAD
Sale Sold out
Shipping calculated at checkout.

ORDERED ON DEMAND

Description

If you're buying a WARN Fully Hidden Kit, this is the winch to use. The ZEON XC 12-S For Fully Hidden Kit offers 12,000 lbs. of pulling capacity in a narrow, short-drum configuration. It offers many of the features of the ZEON XD, such as IP68/IP69k waterproofing and excellent performance and efficiency, but with less size, weight, and a low-profile control box. Plus, it's designed, engineered, and assembled in the USA.

Based on the proven foundation of ZEON XD, the ZEON XC delivers ultimate performance in a low-profile, compact package, giving users greater flexibility for mounting applications. The ZEON XC offers the unmatched capability with best-in-class line speed and capacity, superior durability, and the industry’s leading warranty. Every ZEON XC is meticulously engineered, rigorously tested, and expertly assembled in Clackamas, Oregon, USA.

  • Short drum version of ZEON XC 12-S with the transmission rotated forward 144 degrees

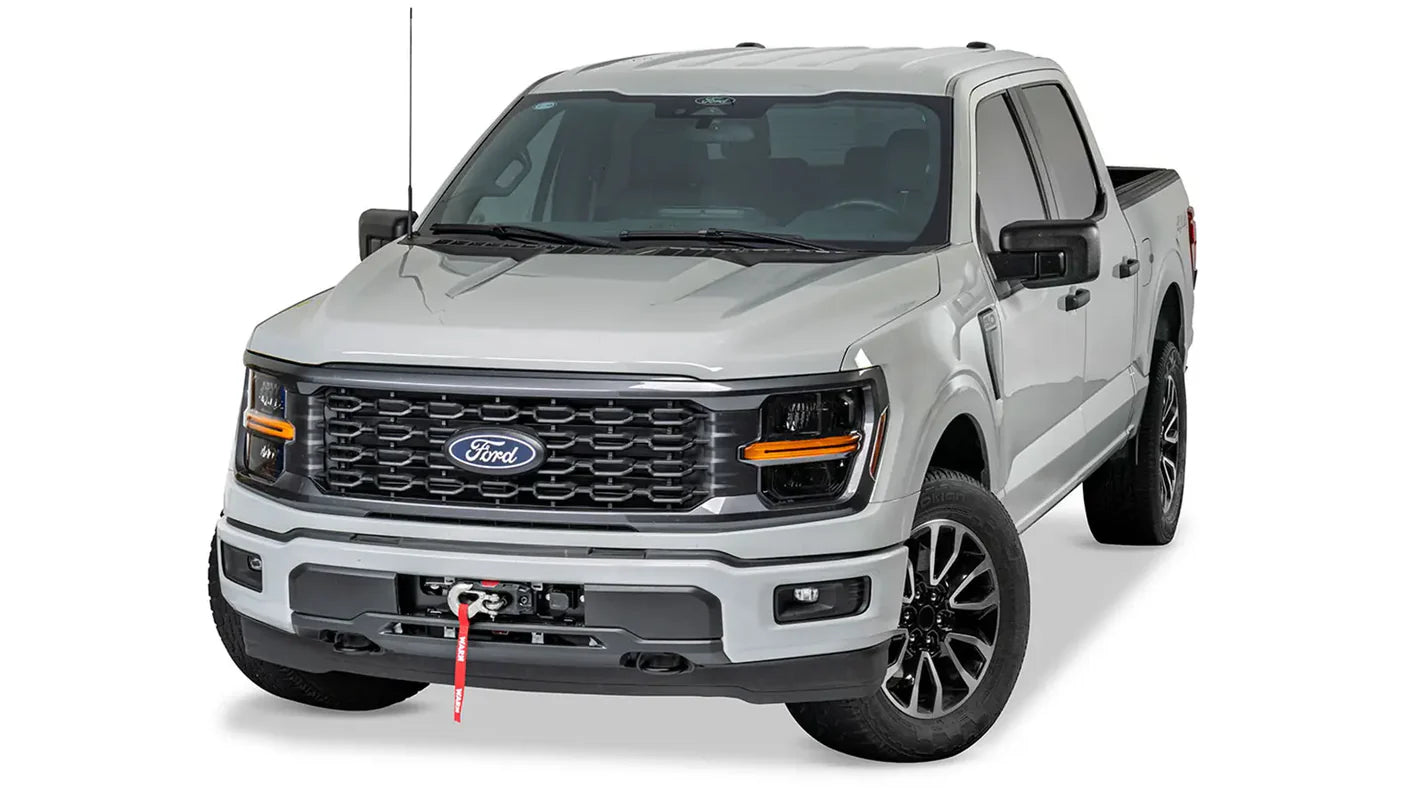

  • Small size makes it the perfect winch for the WARN Fully Hidden Kit winch mounts
  • Comes with 6' remote socket relocation harness, allowing the remote socket to stay accessible even when the winch is hidden behind the bumper
  • Compact, low profile design: the entire control pack sits below the top of the tie plate, making it possible to mount this winch in the tightest applications
  • Ultimate performance and durability: best-in-class line speed, superior durability, and pulling capacity
  • Fully waterproof: IP68 submersion and IP69K spray rated achieved through the use of automotive-grade O-ring seals
  • OEM grade corrosion resistance: OE-grade paint and fasteners increase resistance to fading and corrosion, ensuring ZEON XP stays pristine for years to come
  • 70' of lightweight, easy-to-handle 3/8" Spydura Pro synthetic rope and a large-radius black aluminum hawse fairlead
  • Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network.
  • Designed, engineered, and assembled in the USA
