Yellow 3" Cube Fog Light SAE/DOT Compliant - by Strands

Yellow 3" Cube Fog Light SAE/DOT Compliant - by Strands


Regular price $259.00 CAD
Regular price Sale price $259.00 CAD
Sale Sold out
Shipping calculated at checkout.



Regular Mount Yellow Fog

LEDs: 5 x 5W Phillips
Beam Pattern: SAE/DOT Compliant, Yellow Fog pattern
Colour Temperature: 3000K
Luminous Flux: 1350 lm (Raw) / 762.3 lm (Effective)
Lux: 1 Lux @ 54m
IP Rating: IP6K9K with Waterproof Deutsch Connectors
Operating Voltage: DC 10-30V
Wattage: 25W / Amperage 12V/24V: 1.625A/0.8125A
Temperature Range: -40 – + 50°C
EMC Grade: EMC R10
Housing Material: Die-cast Aluminum with Powder coat
Lens Material: Anti-UV PC
Mounting Bracket: Powder coated stainless steel bracket and hardware

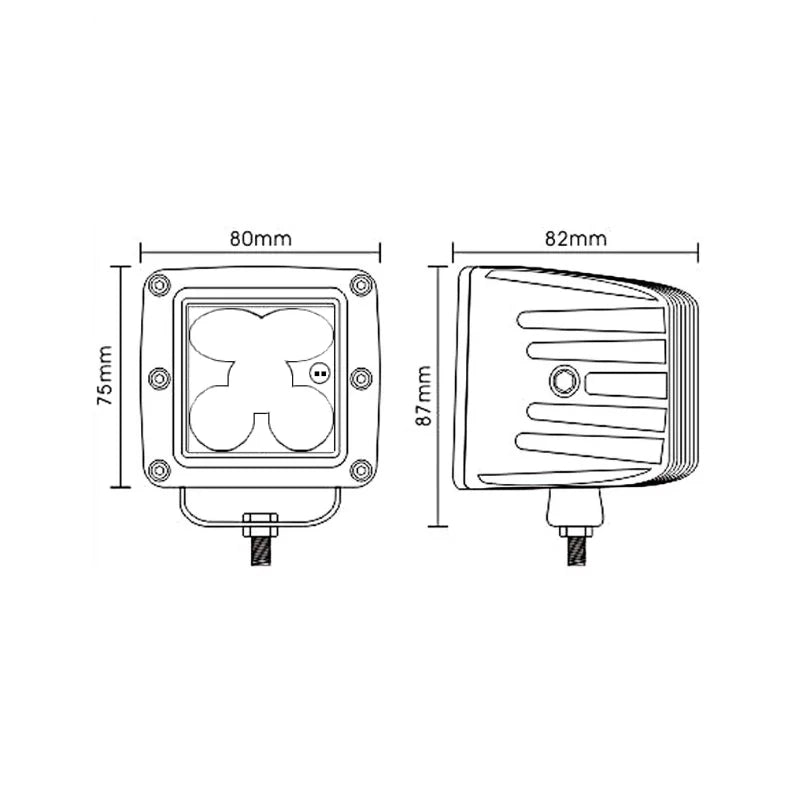

Dimensions: 80 x 87 x 80mm (3 x 3.5 x 3″)
Harness: Fully integrated harness with relay and switch
LED Lifespan: 30,000+ hrs
Certification: SAE/DOT J583-2005
Warranty: 5 Year Limited

These lamps are SAE/DOT compliant. Always check with Provincial, State or local authorities for laws governing usage and proper mounting of your new lights.

What’s included: This kit includes two lamps and a harness
