Work Bar Strobe 15 - LED Mini Bar
Work Bar Strobe 15 - LED Mini Bar
SKU:BB6011B
Couldn't load pickup availability

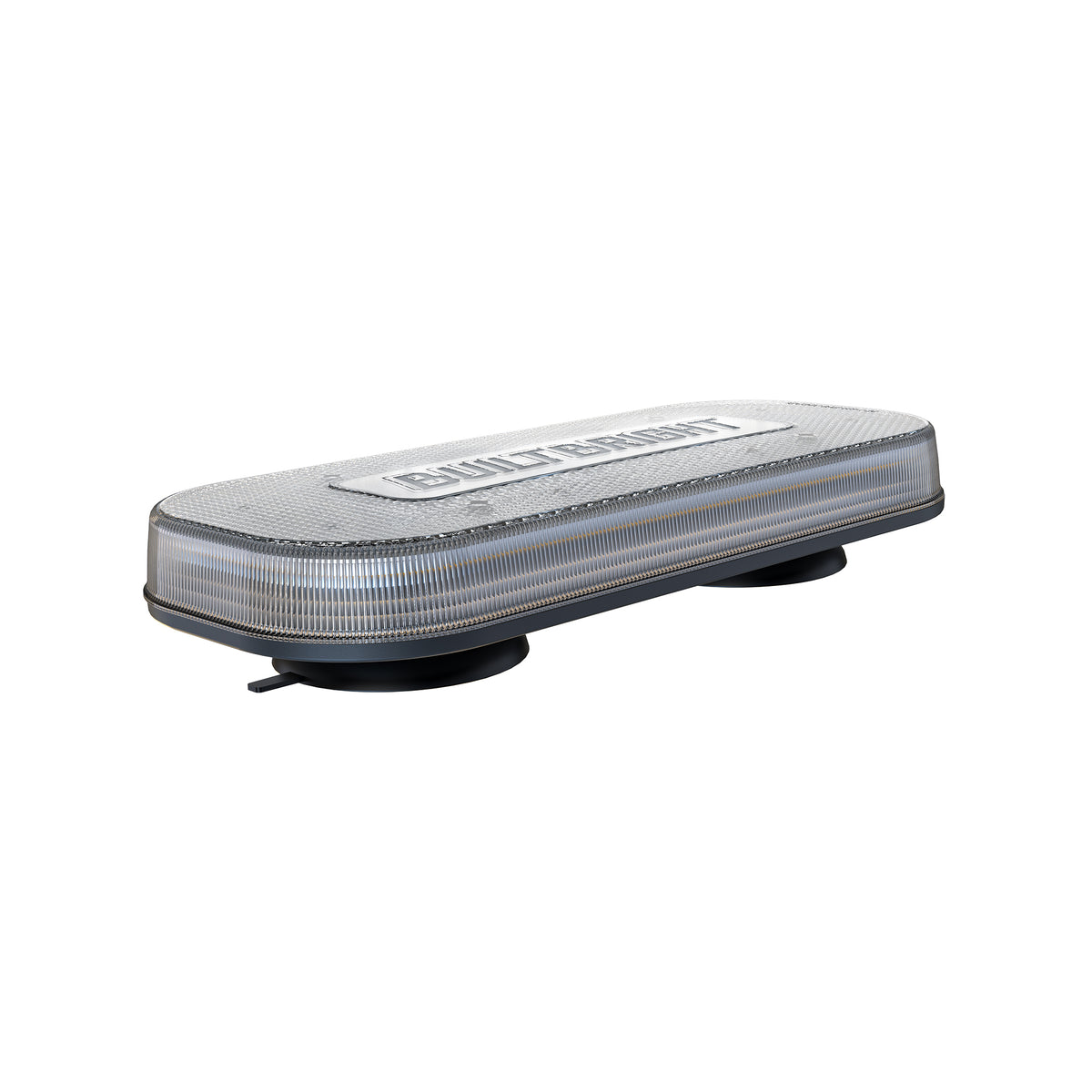

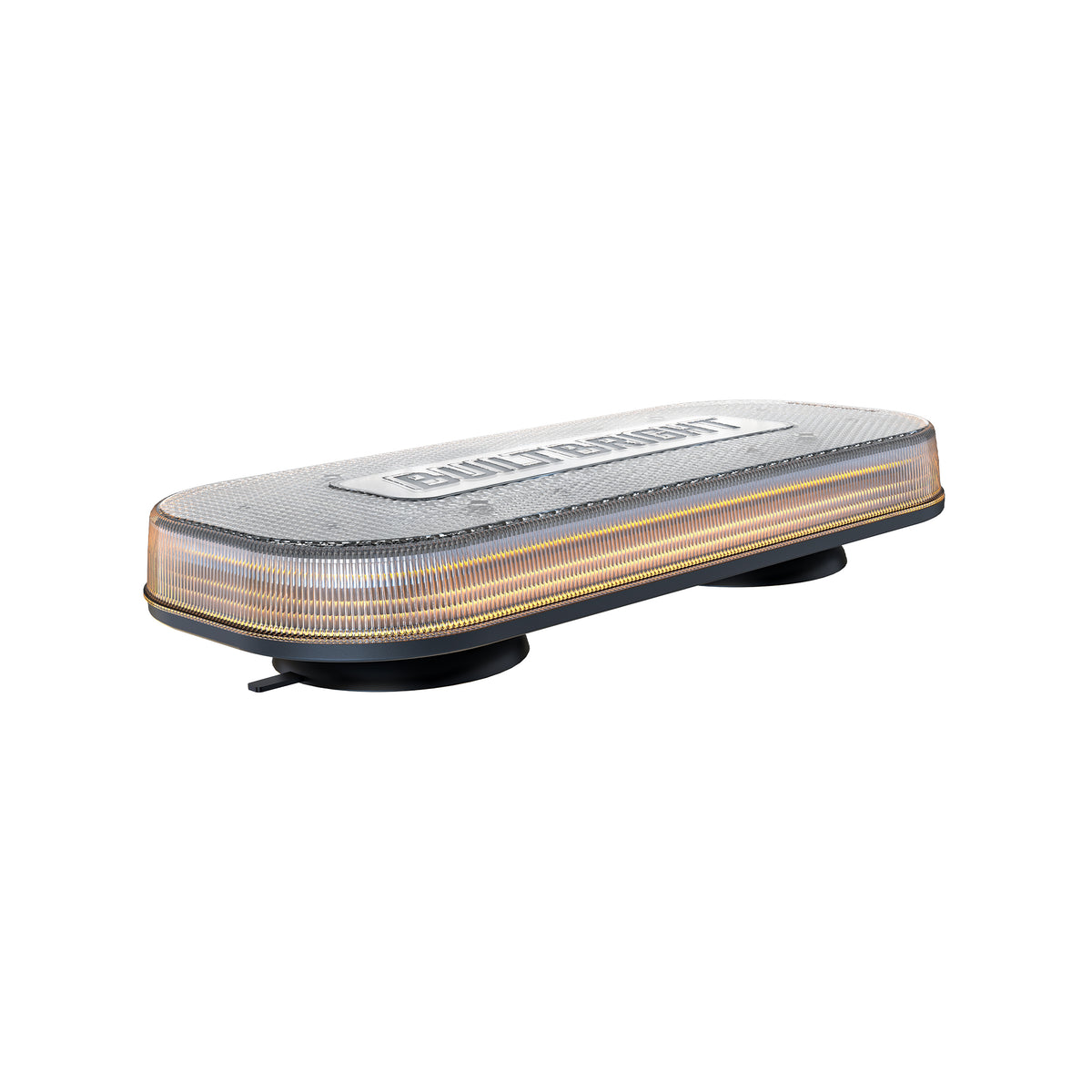

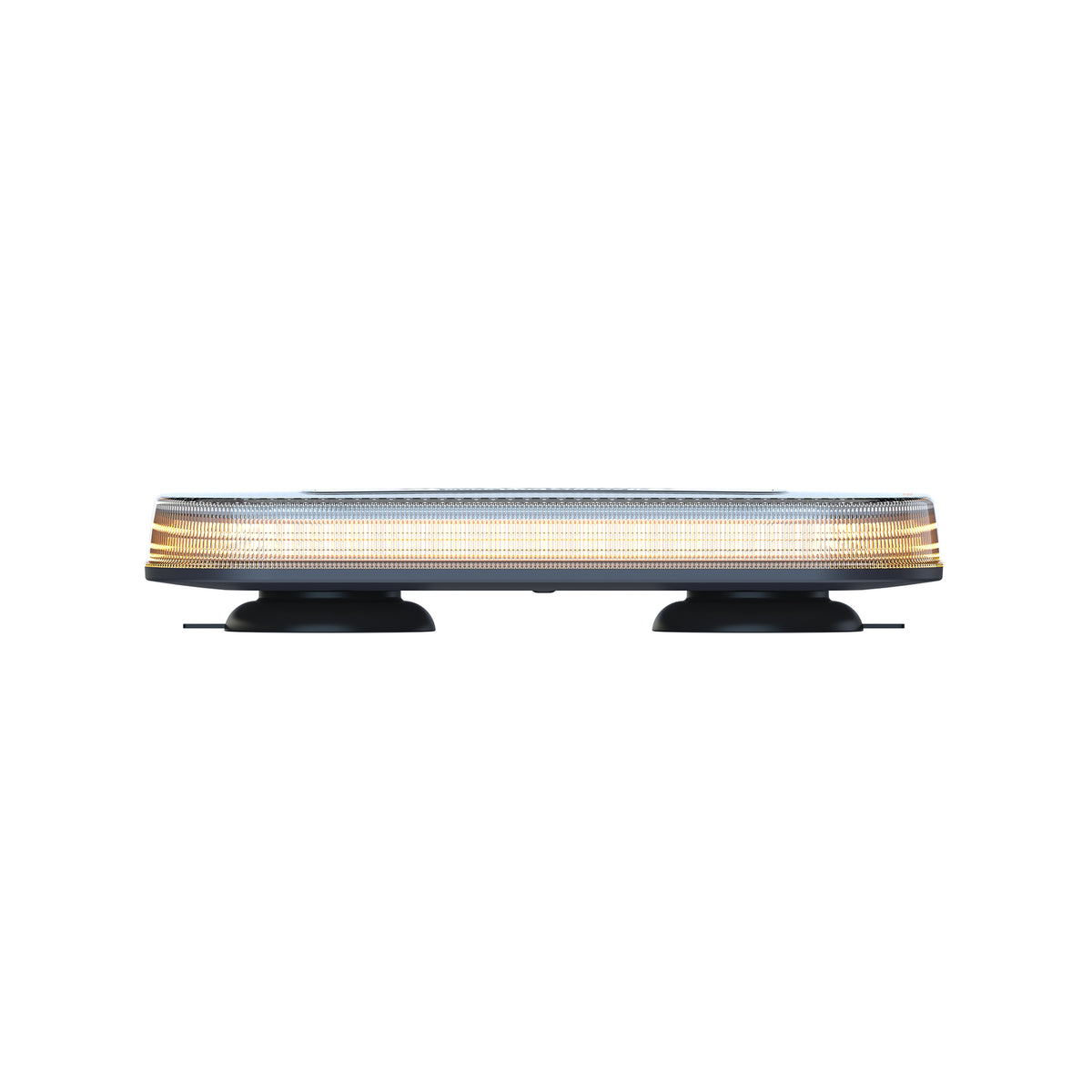

Work Bar Strobe 15 is the SAE-certified LED strobe mini bar engineered to demand awareness. With 144 amber and white LEDs and 78 flash patterns packed into a space-efficient design, this mini bar delivers standout visibility in any environment.

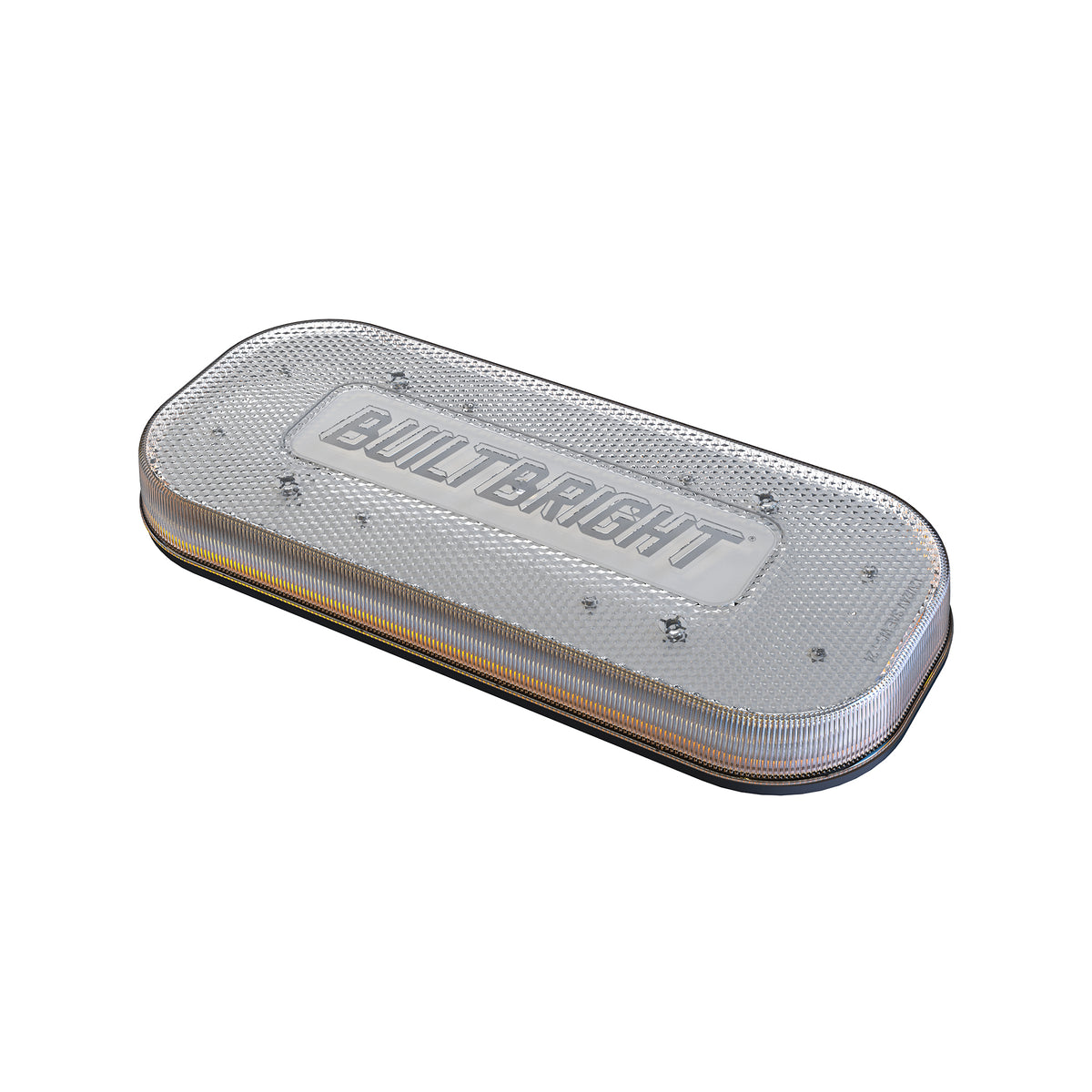

The mini bar is constructed with a durable polycarbonate housing and features a high-strength, UV-stabilized Makrolon® polycarbonate lens to resist yellowing and maintain optical clarity. Each light includes both magnetic suction mounts and permanent stud mounts for installation versatility. A 12V cigarette lighter switch is also included. Work Bar Strobe 15 carries an IP69K weatherproof rating and is backed by a 5-year warranty, so the mini bar is built to last and BUILTBRIGHT® stands behind it.
This mini bar packs exceptional performance and build quality, but it truly shines when integrated with the patented StrobeLink® system. Each light features a waterproof connector that connects directly to the StrobeLink® harness for simple plug-and-play installation. No cutting, splicing, or prefabrication required. Simply route the harness underneath the vehicle, plug in your lights, connect to power, program your patterns, and you’re ready to go. If you choose to use the mini bar with a traditional wiring setup, a pigtail connector is included in every box.
Work Bar Strobe 15 also pairs perfectly with StrobeLink® stainless steel mounting brackets. For the roof, BUILTBRIGHT® offers a comprehensive lineup of third brake light brackets for most work vehicles in use today. These brackets enable leak-free, integrated mounting without drilling a single hole. Universal StrobeLink® headache rack brackets are also available.
Features
- SAE-Certified Warning Light - Built to deliver road-ready visibility and dependable performance
- Space-Efficient Mini Bar Design - Compact footprint maximizes mounting flexibility without sacrificing visibility
- 78 Flash Patterns - Multiple strobe modes offer flexible warning and signaling options
- Durable Polycarbonate Construction - Tough housing built to withstand demanding work environments
- Makrolon® Polycarbonate Lens - UV-stabilized for lasting clarity and resistance to yellowing

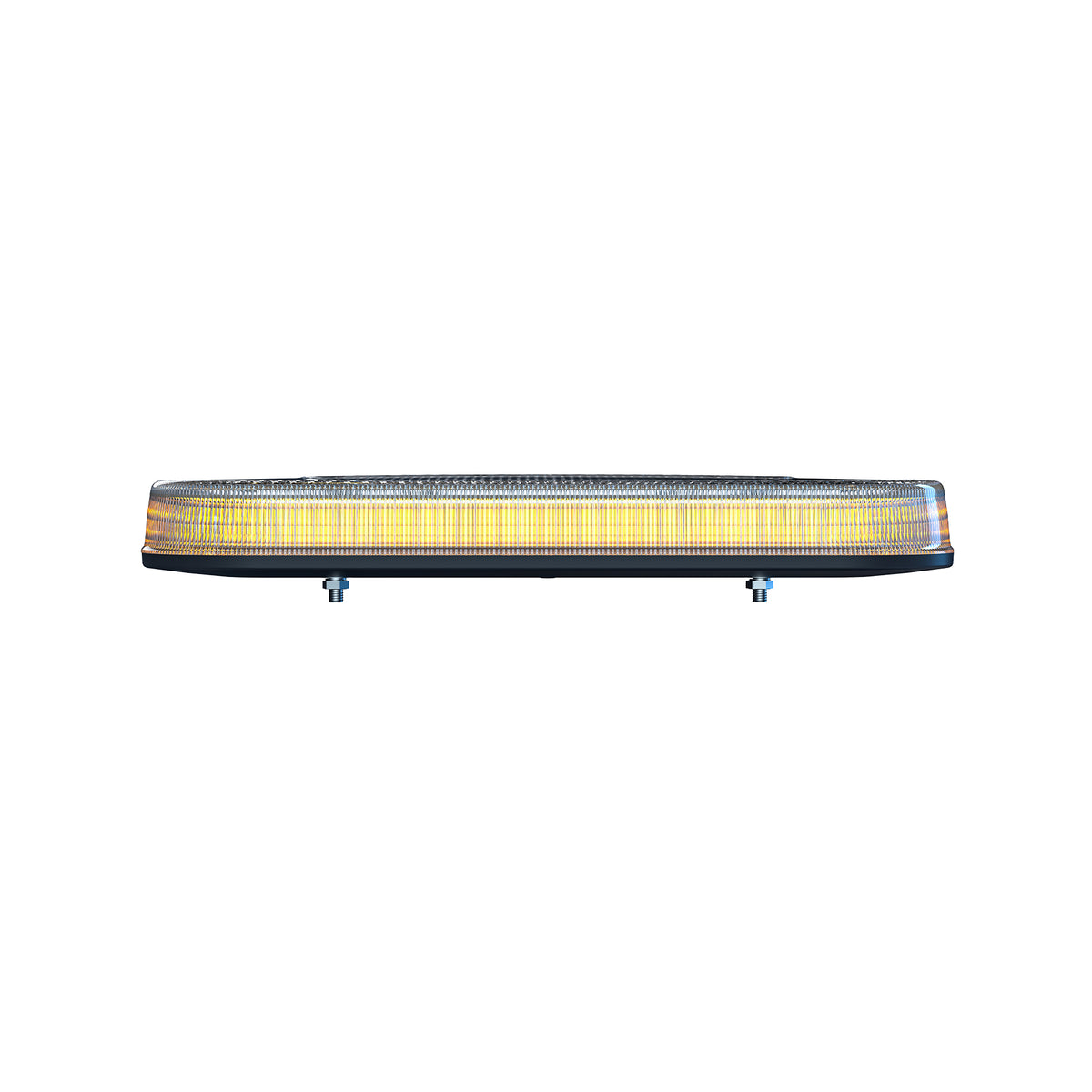

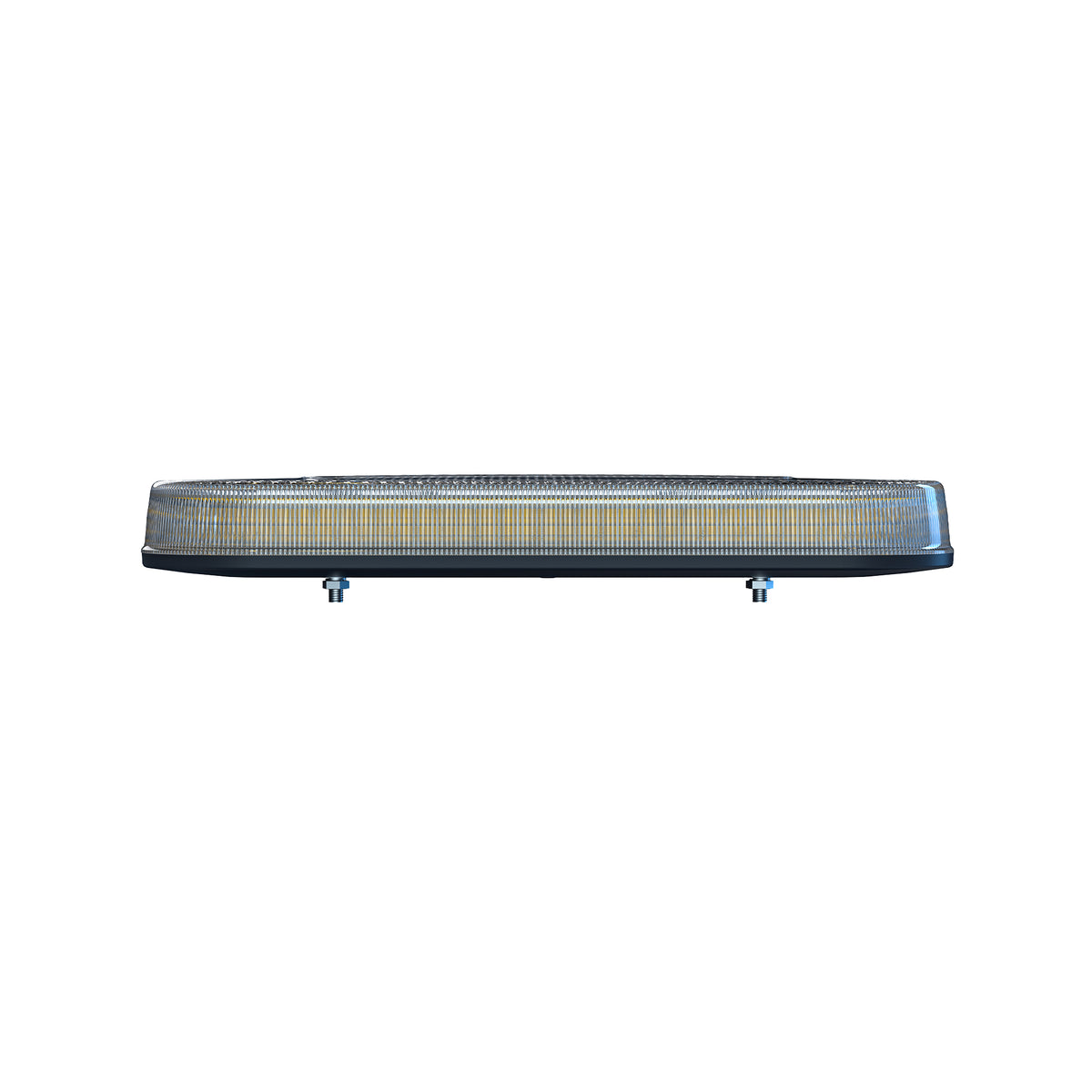

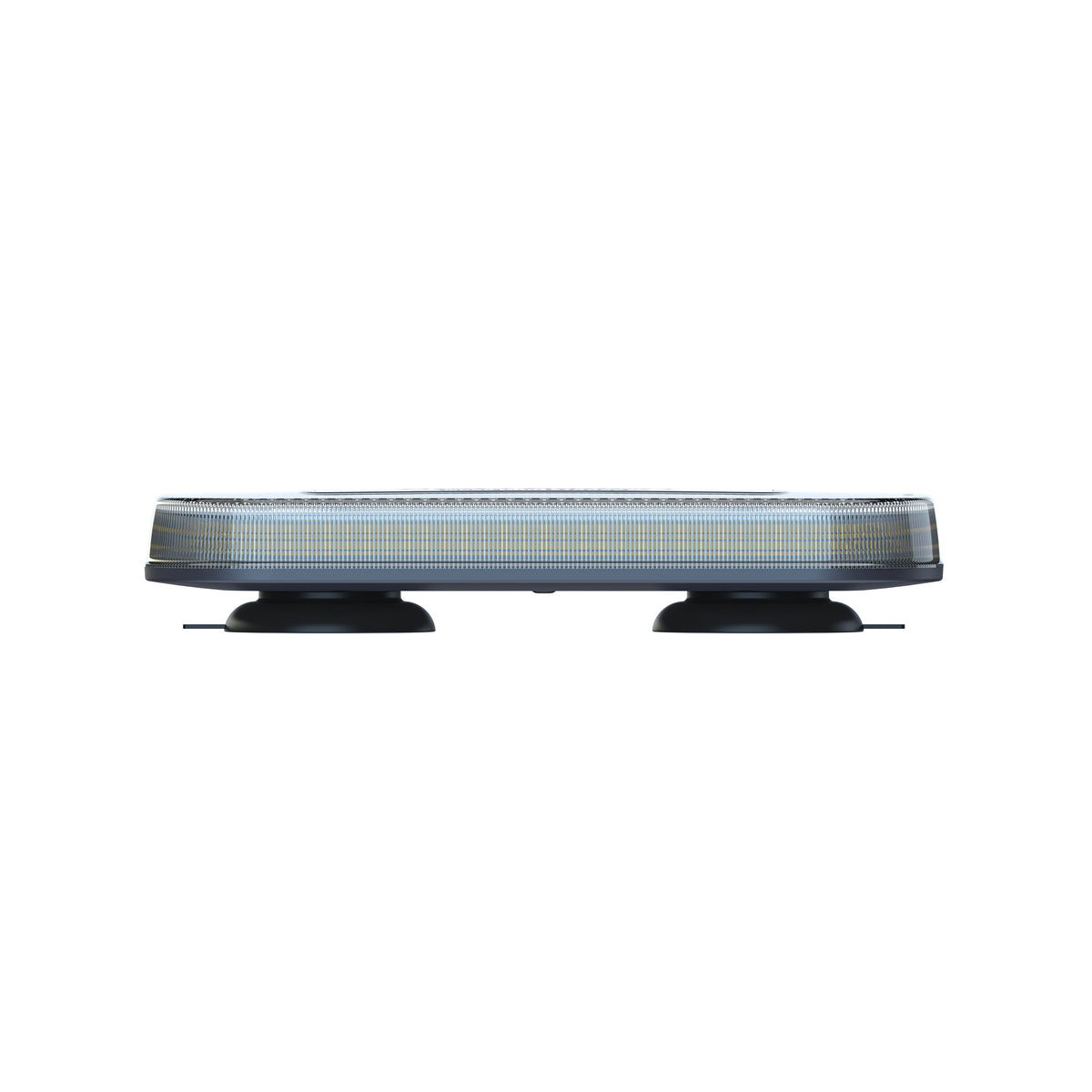

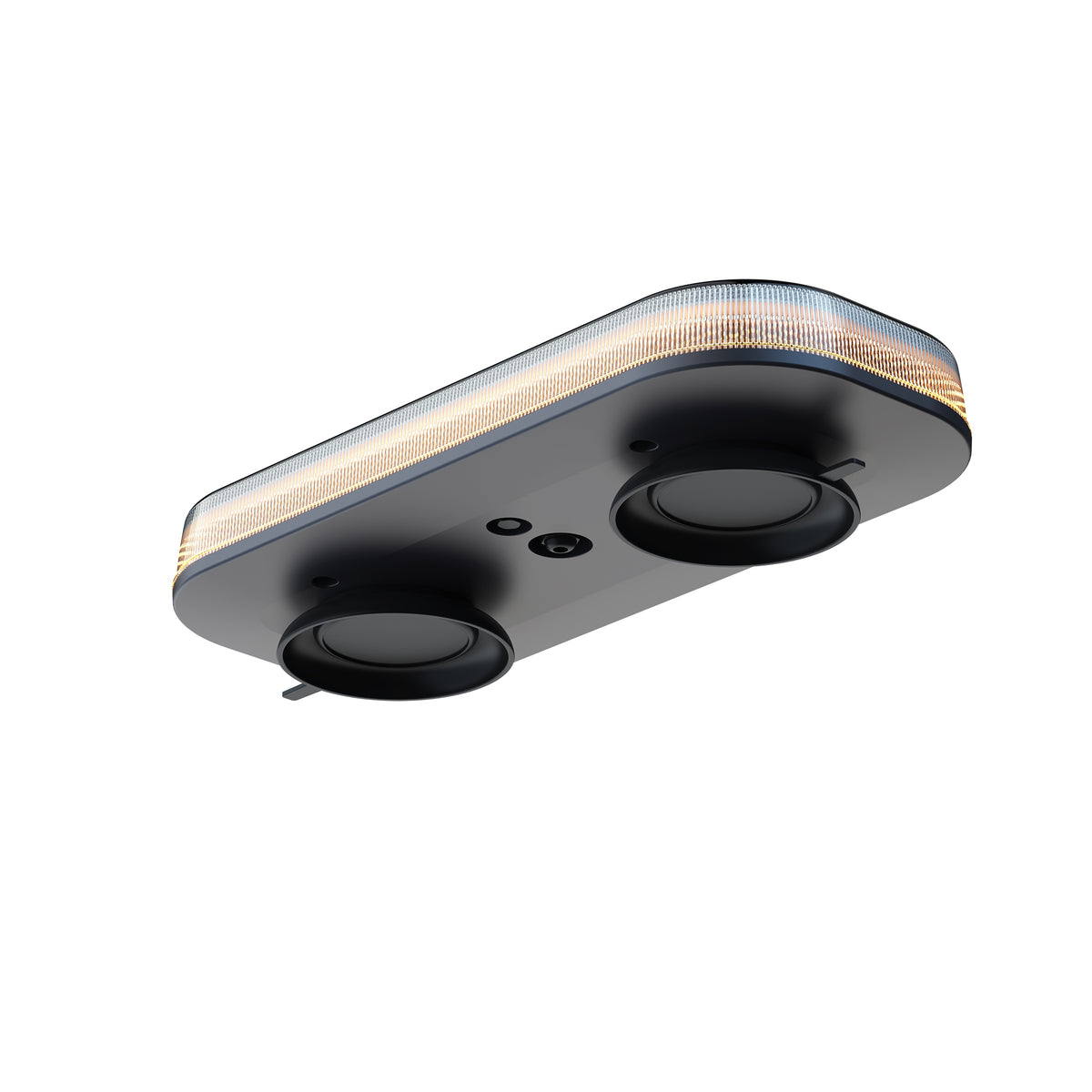

- Flexible Mounting Options - Includes magnetic suction mounts and permanent stud mounts
- No-Drill Mounting Solutions - Compatible with third brake light and headache rack brackets
- Built for StrobeLink® - Waterproof connector plugs directly into the StrobeLink® system
- Backed by a 5-Year Warranty - Built to last with confidence from BUILTBRIGHT®
By variant
| SKU | Variant-specific |
|---|---|
| BB6011B |
|
| BB6011C |
|
| BB6011D |
|
What's Included
- 1x LED Mini Bar
- 2x Magnetic Suction Mounts
- 2x Permanent Stud Mounts
- 1x Foam Gasket
- 1x 12V Cigarette Lighter Switch
- 1x 16' Extension Cable
- 1x Pigtail Connector
- Mounting Hardware
Specifications
| BB6011B | BB6011C | BB6011D | |
|---|---|---|---|
| Compliance | SAE J845 Class 1, California Title 13, ECE R10 | SAE J845 Class 1, California Title 13, ECE R10 | SAE J845 Class 1, California Title 13, R10 |
| LED Count | 144 | 144 | 144 |
| Flash Patterns | 78 | 78 | 78 |
| Voltage | 10-30V DC | 10-30V DC | 10-30V DC |
| Avg. Current | 5.5A @12V DC (Varies by Flash Pattern) | 5.5A @12V DC (Varies by Flash Pattern) | 5.5A @12V DC (Varies by Flash Pattern) |
| Avg. Power | 70W (Varies by Flash Pattern) | 70W (Varies by Flash Pattern) | 70W (Varies by Flash Pattern) |
| Max. Current | 6A @12V DC | 6A @12V DC | 6A @12V DC |
| Max. Power | 76W | 76W | 76W |
| Wire Length (Light Bar to Connector) | 16' | 16' | 16' |
| Wire Length (Connector to 12V Cigarette Plug) | 5' | 5' | 5' |
| Recommended Fuse | 10A | 10A | 10A |
| Lens Color | Clear | Clear | Clear |

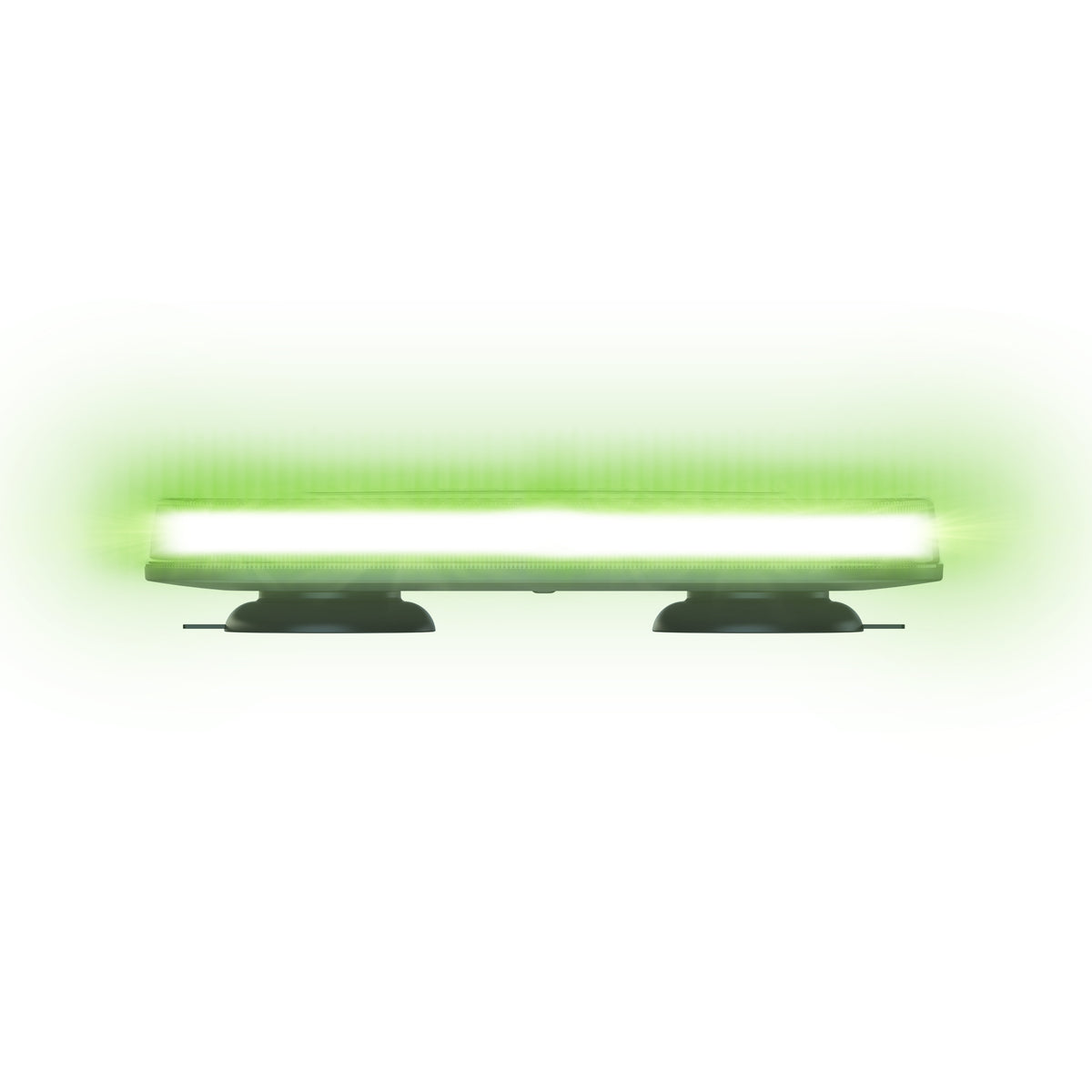

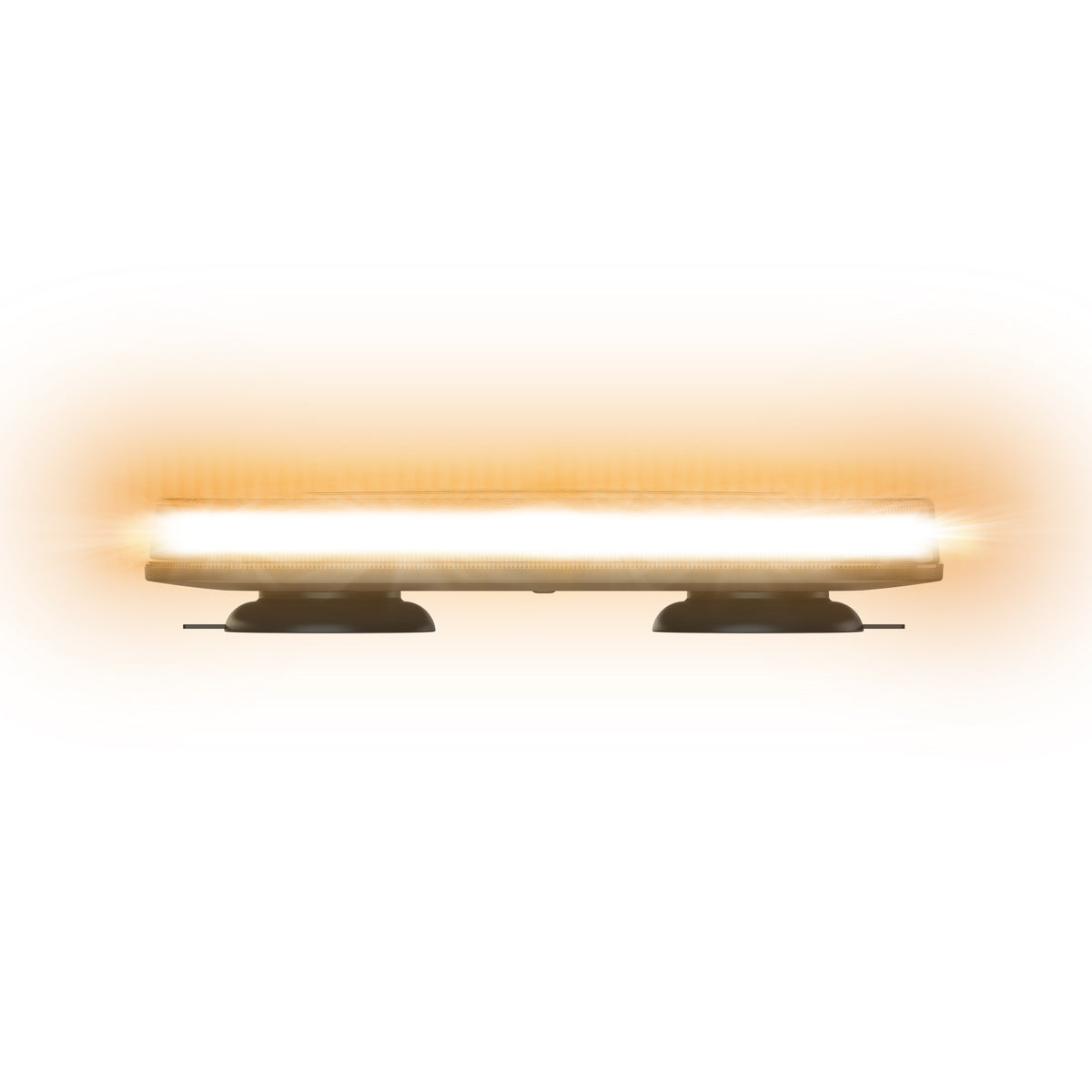

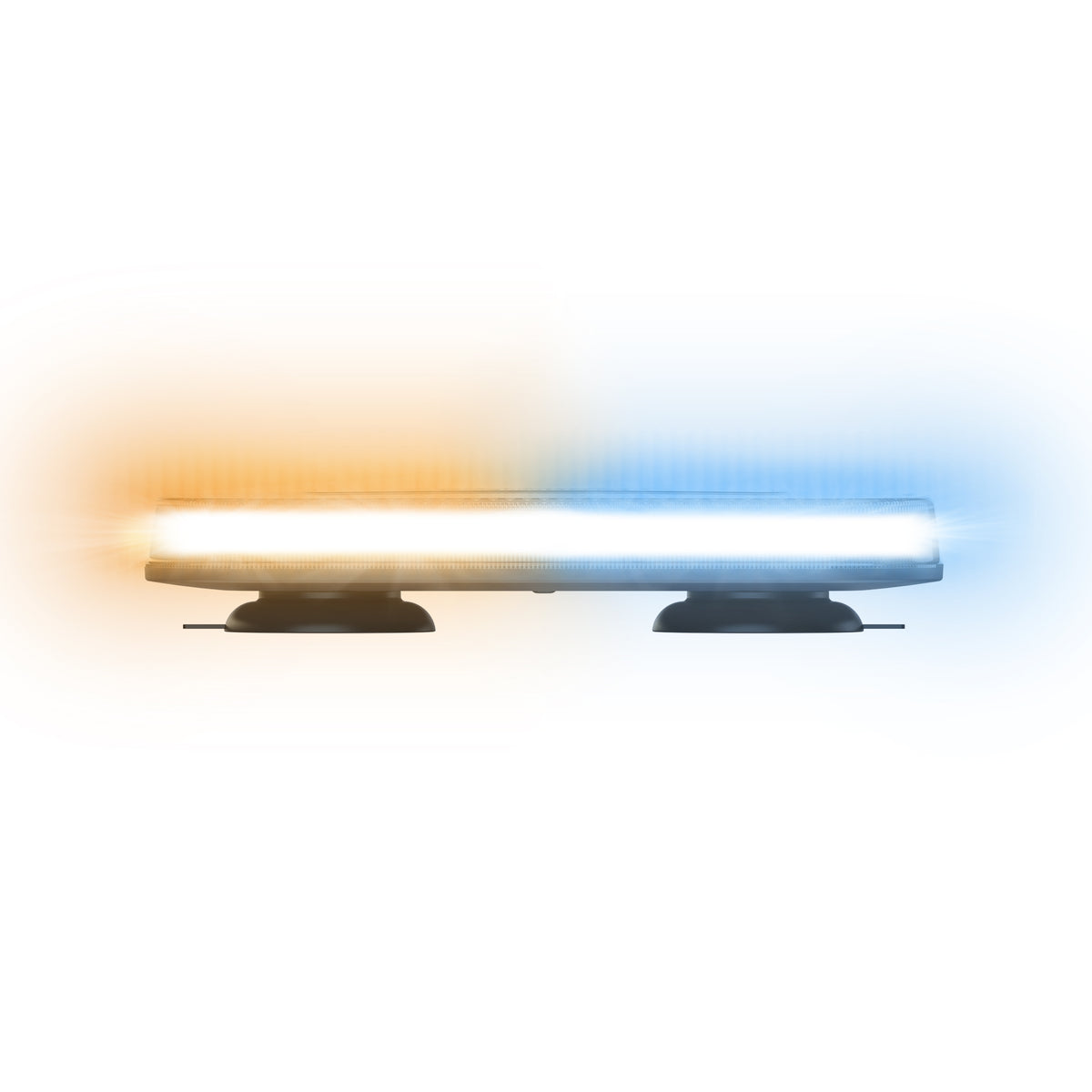

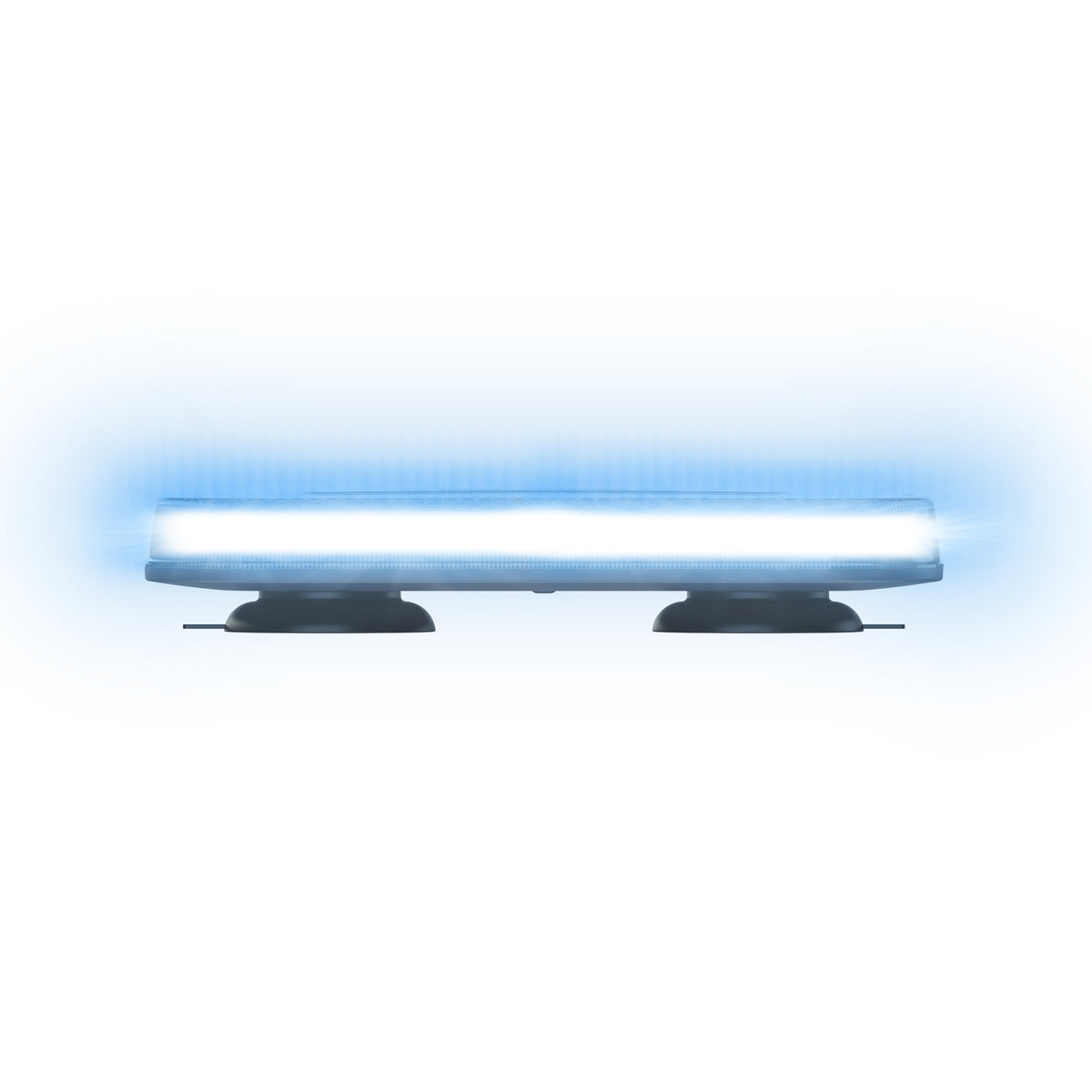

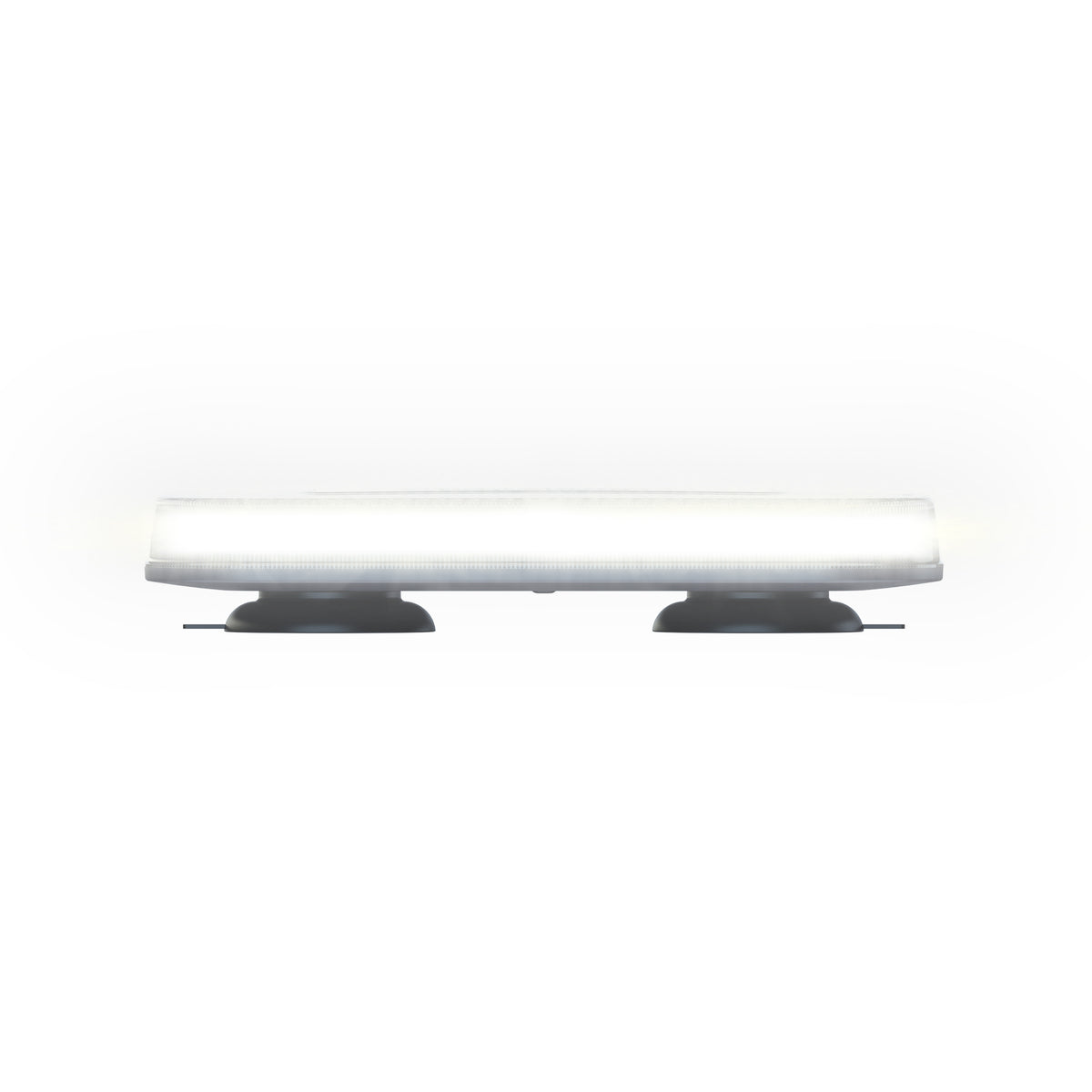

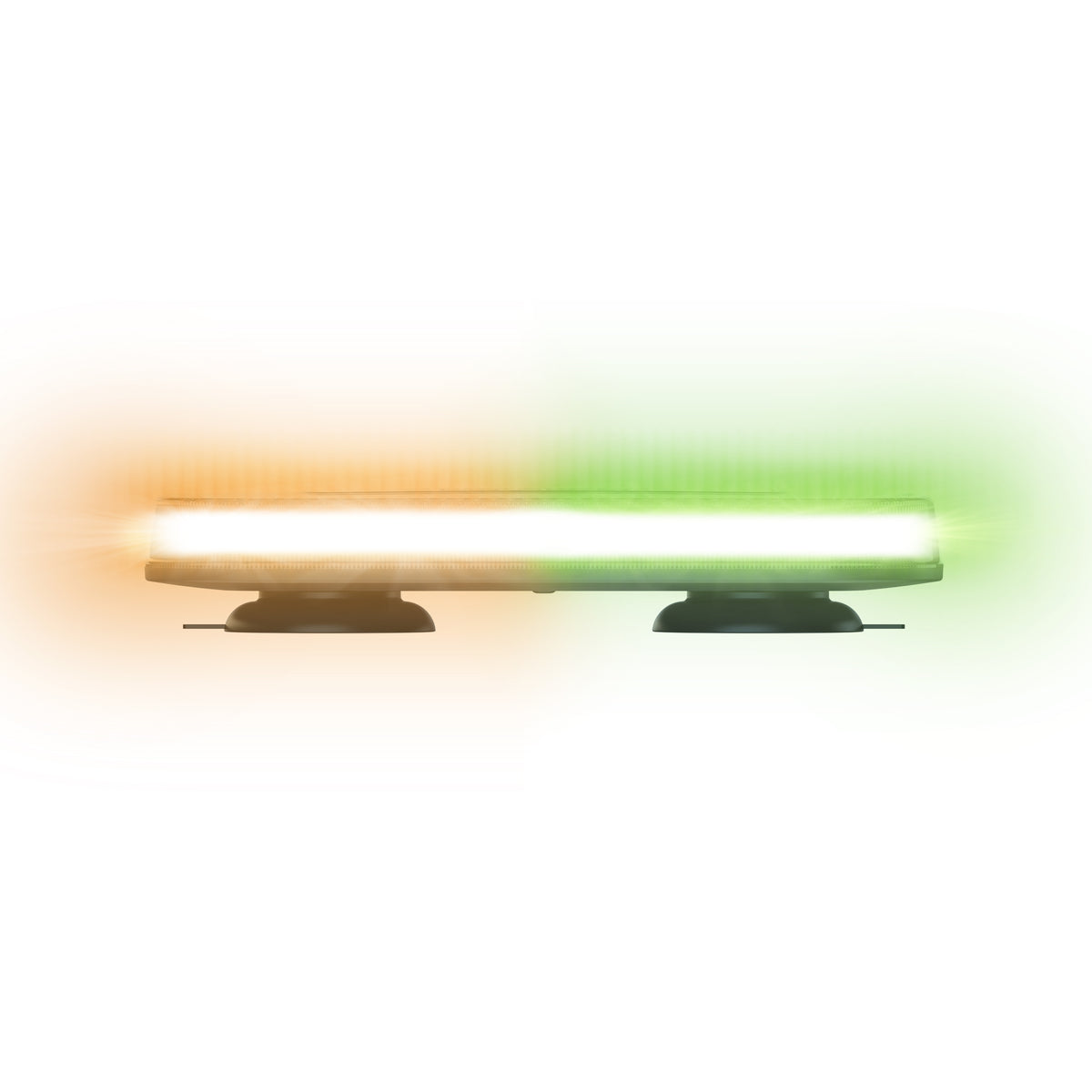

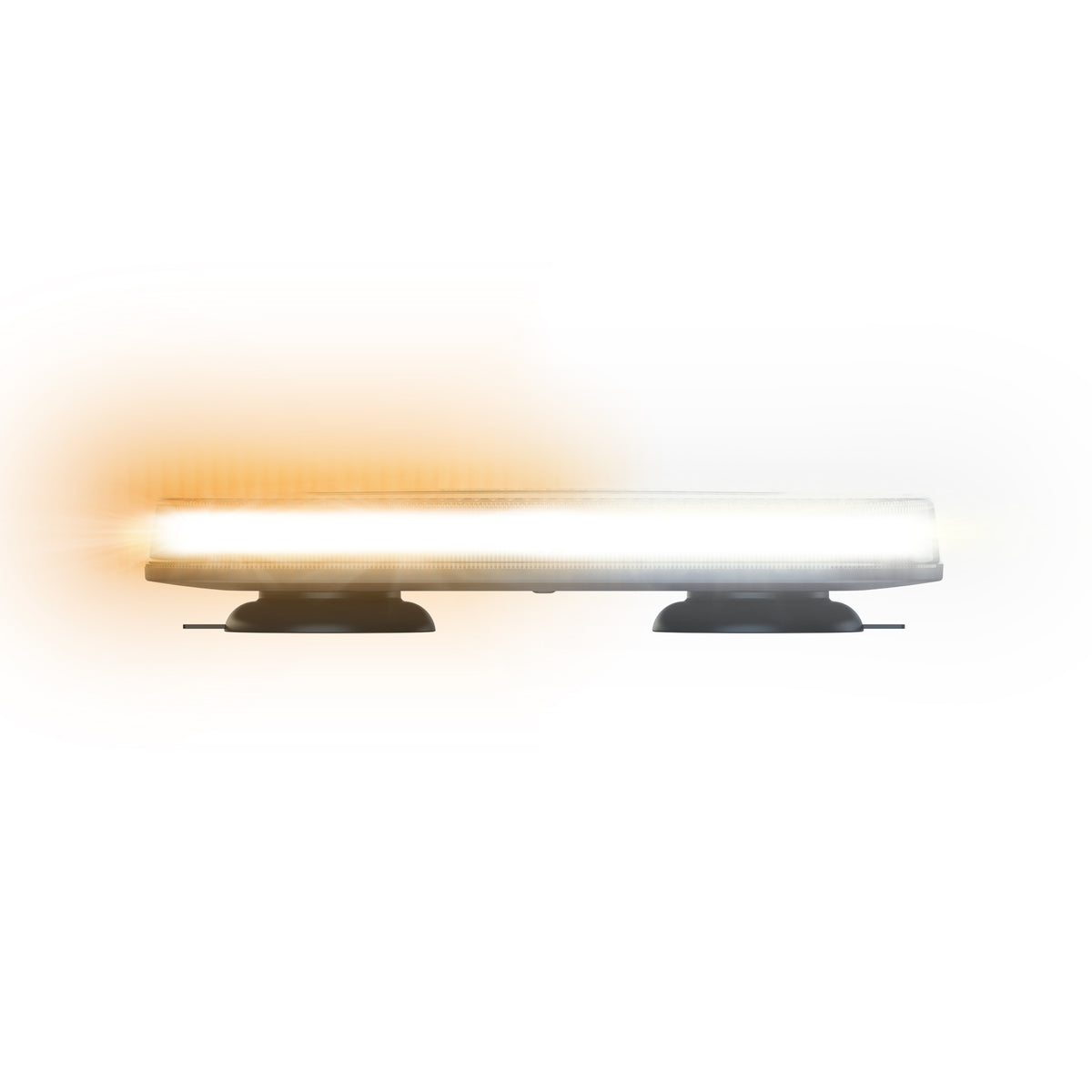

| LED Colors | Amber, White | Amber, Blue | Amber, Green |
| Operating Temperature | -40°F to +149°F | -40°F to +149°F | -40°F to +149°F |
| Weatherproof Rating | IP69K | IP69K | IP69K |

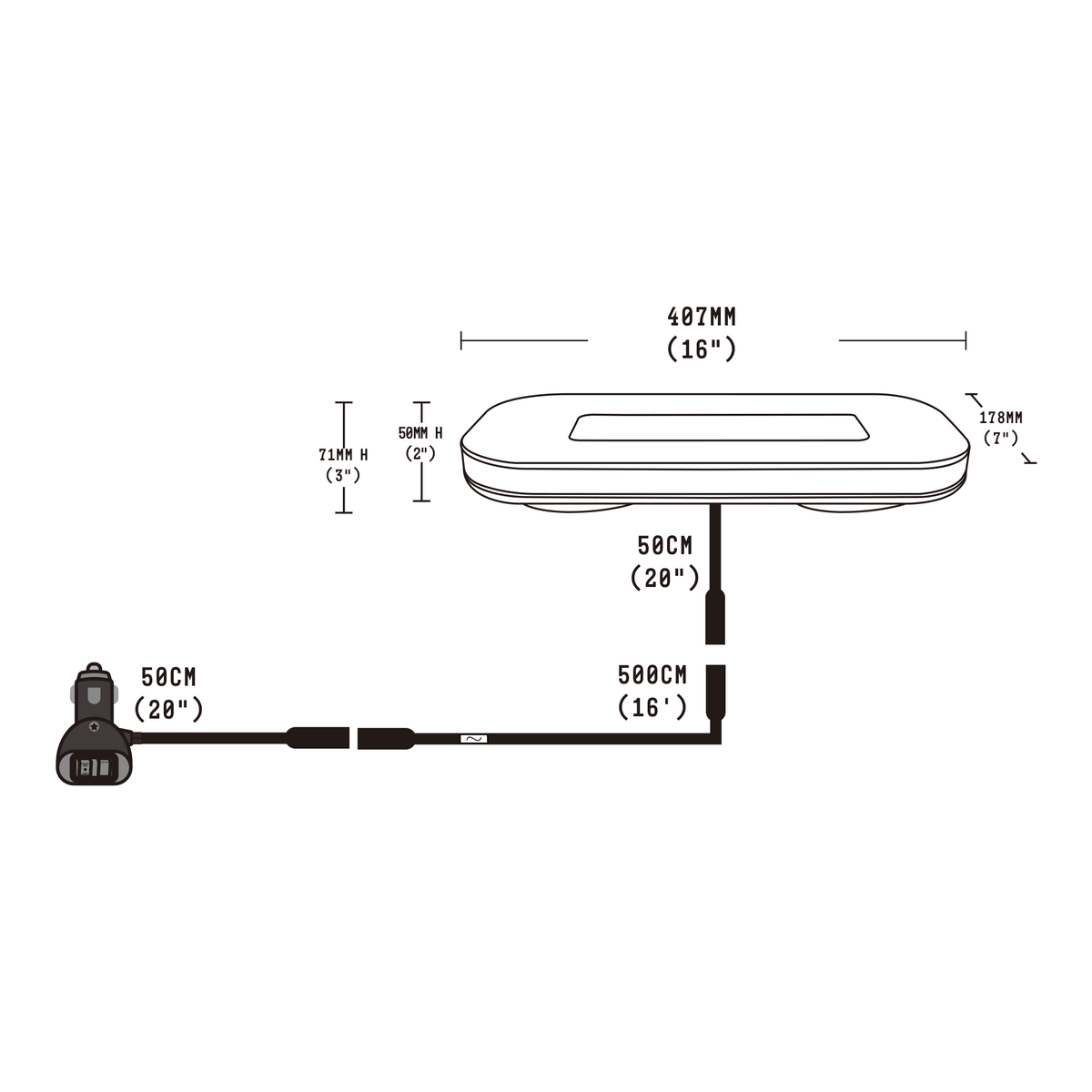

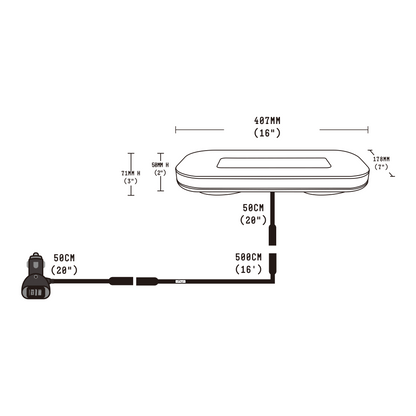

| Dimensions | 2" H x 7" W x 16" L | 2" H x 7" W x 16" L | 2" H x 7" W x 16" L |
| Connector | Circular Waterproof Connector | Circular Waterproof Connector | Circular Waterproof Connector |
| Lens Material | Makrolon® High-Strength, UV-Stabilized Polycarbonate | Makrolon® High-Strength, UV-Stabilized Polycarbonate | Makrolon® High-Strength, UV-Stabilized Polycarbonate |
| Housing Material | Polycarbonate | Polycarbonate | Polycarbonate |
| Hardware Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Warranty | 5-Year Warranty | 5-Year Warranty | 5-Year Warranty |
