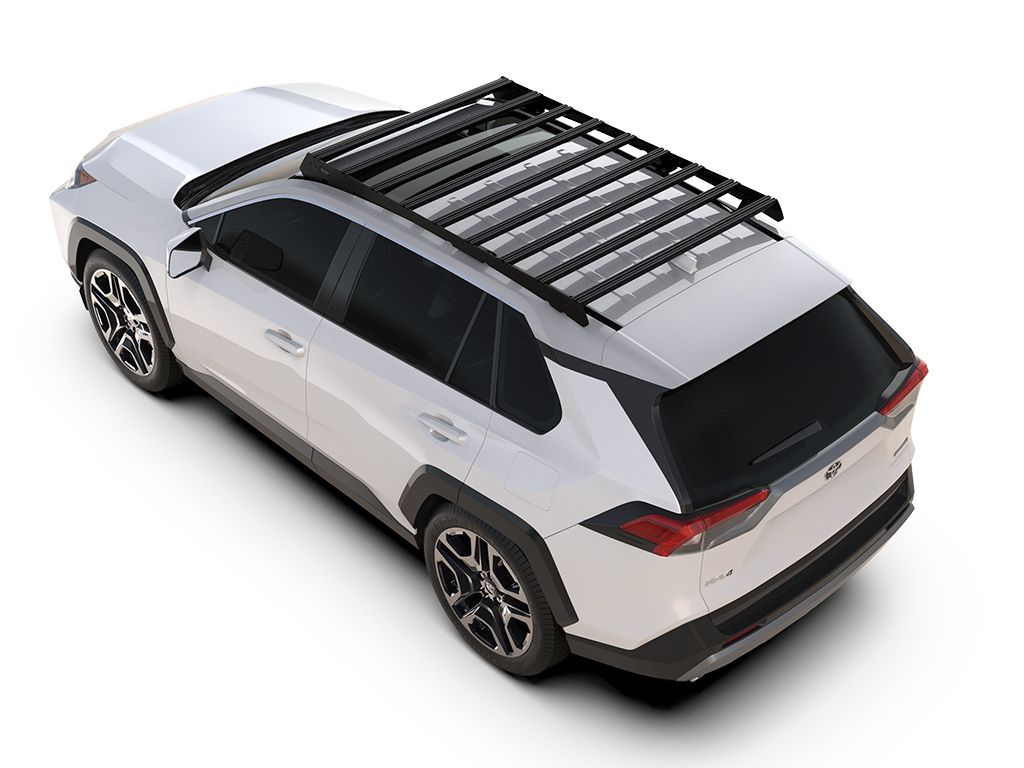

Toyota RAV4 (2019-Currnet) Slimsport Roof Rack - by Front Runner

ORDERED ON DEMAND

CONTACT US FOR INSTALL QUOTES

Gear up your Toyota Rav4 (2019-Current) for any adventure with the Slimsport Roof Rack Kit. The Slimsport was designed for activity-focused drivers that do not require an expedition-grade build. It has a low-profile and is compatible with over 55 Front Runner accessories.

• This low-profile flat deck Slimsport rack has a load-carrying area of 1676mm (66") x 1175mm (46.3").
• The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
• The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories.
• Effortlessly access your Slimsport cargo with the Handle/Light Slimsport Rack Bracket Handle/Light Slimsport Rack Bracket.
• Easily add on the Slimsport/Slimpro Van Side Mount Accessory Bracket / Small for most Front Runner side mount accessories (sold separately).
• The included standard full fairing with rubber edge trim, makes the rack ultra-quiet.
• Need a lightbar? The optional lightbar fairing Toyota Rav4 (2019-Current) Slimsport Rack 40" Light Bar Wind Fairing (sold separately) has a 40" cutout to allow use of 40" LED Slim Light Bar VX1000-CB SM / 12V/24V / Single Mount (sold separately), and allows full operation of the moon roof.
• Fitment guide and all mounting hardware included.
• 6"/T30 Torx Allen Key for Slimsport Rack is required for installation.
• Note: Drilling required for installation.
• Note: Under Rack Tables and some side mount accessories such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets are not compatible with the Slimsport rack kit range.

Assembled Rack Dimensions:

1676mm (66") L x 1175mm (46.3") W x 135mm (5.3") H

Approximate Installed Weight: 34.74kg (76.59lbs)

Note: Additional drilling is required for the RAV4 LE models.
Note: The panoramic glass roof is not operational when this Rack Kit is installed. For panoramic glass roof the Toyota Rav4 (2019-Current) Slimline II Roof Rack Kit is suited, or Toyota Rav4 Adventure / TRD-Offroad (2019-Current) Slimline II Roof Rack Kit for adventure model.

Specifications

STR003T - Toyota Rav4 (2019-Current) Slimsport Roof Rack Kit

Consisting of: 1

x KSTR001 - Toyota Rav4 (2019-Current) Slimsport Roof Rack1

x RRAC238 - Toyota Rav4 (2019-Current) Slimsport Rack Wind Fai

Material Used: Black epoxy powder - coated T6 aluminium

High strength steelAssembled Rack

Dimensions: 1676mm (66'') L x 1175mm (46.3'') W x 135mm (5.3'') H

Approximate Installed

Weight: 35kg (77.16lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4''-2.8'') to the highest point of your roof.

Shipping

Dimensions: Width: 330mm (13'')Length: 1705mm (67'')Height: 220mm (9'')

Shipping

Weight:

Weight: 35kg (77lbs)

Kit Contents

• 1× KSTR001 —
• 1× RRAC238 — Toyota Rav4 (2019-Current) Slimsport Rack Wind Fairing

Fitting Instructions

• KSTR001 — Fitting instructions (PDF)
• RRAC238 — Toyota Rav4 (2019-Current) Slimsport Rack Wind Fairing (PDF)
