Stage Series LED Bed Light Kit For 2024 Toyota Tacoma - by Diode Dynamics

Ordered On Demand

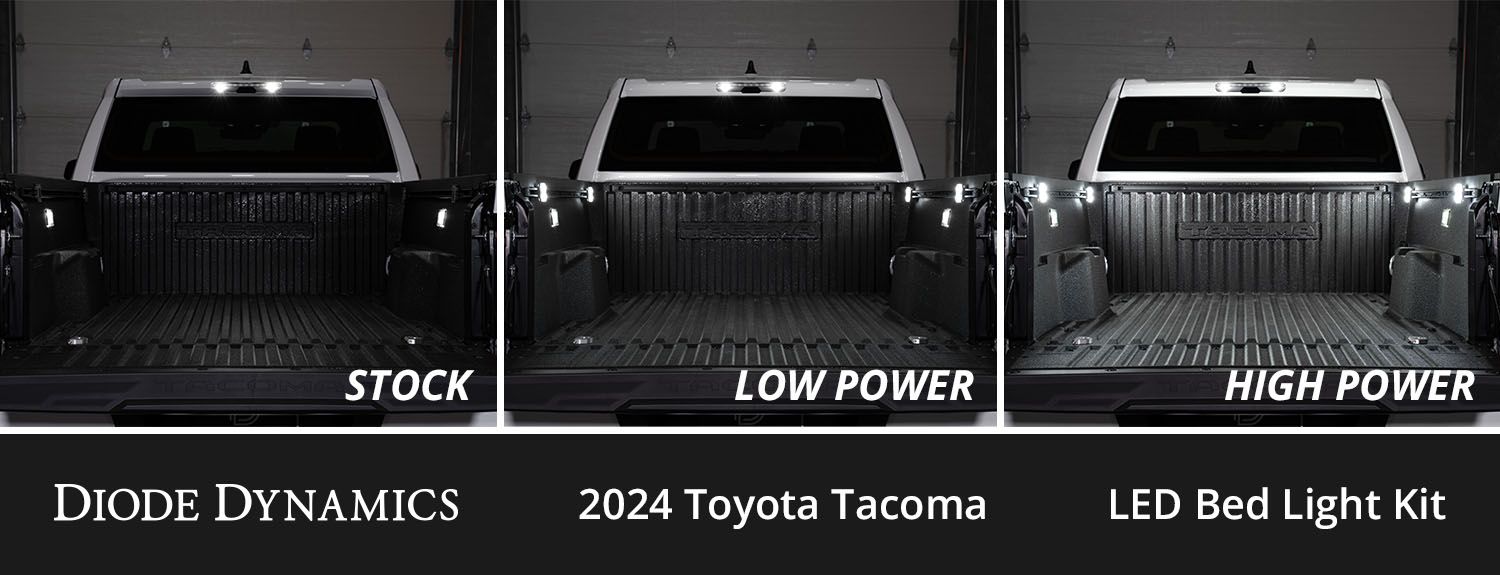

Add significantly more light output to your truck bed at night with our Stage Series LED Bed Light Kit for the Toyota Tacoma!

Features

• Direct fitment on the 2024+ Toyota Tacoma.

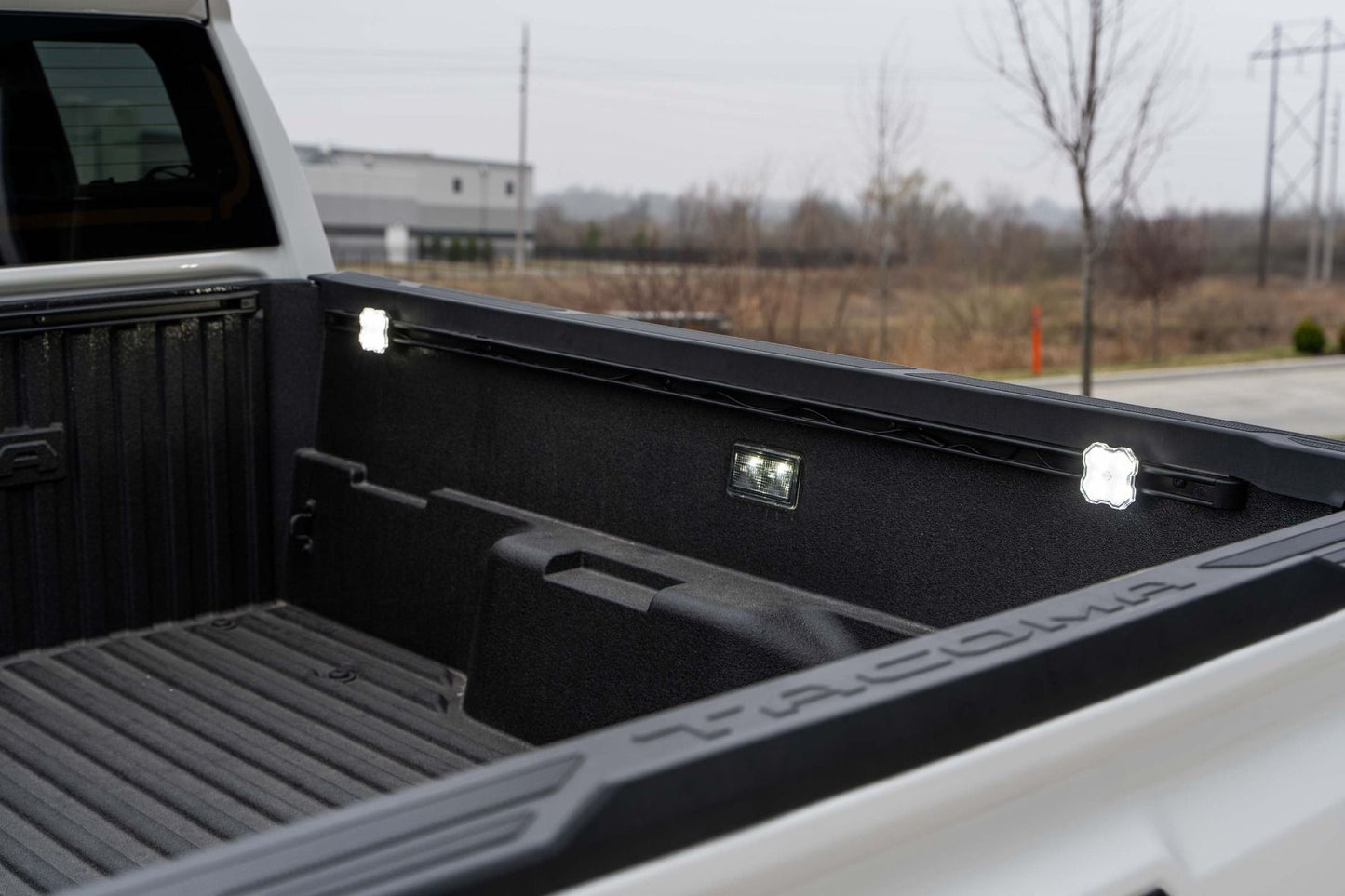

• Allows you to mount four LED rock lights in your truck bed.
• 10-watt, 800 lumen peak output.
• Plug-and-play, simple installation.
• Engineered and Assembled in USA.

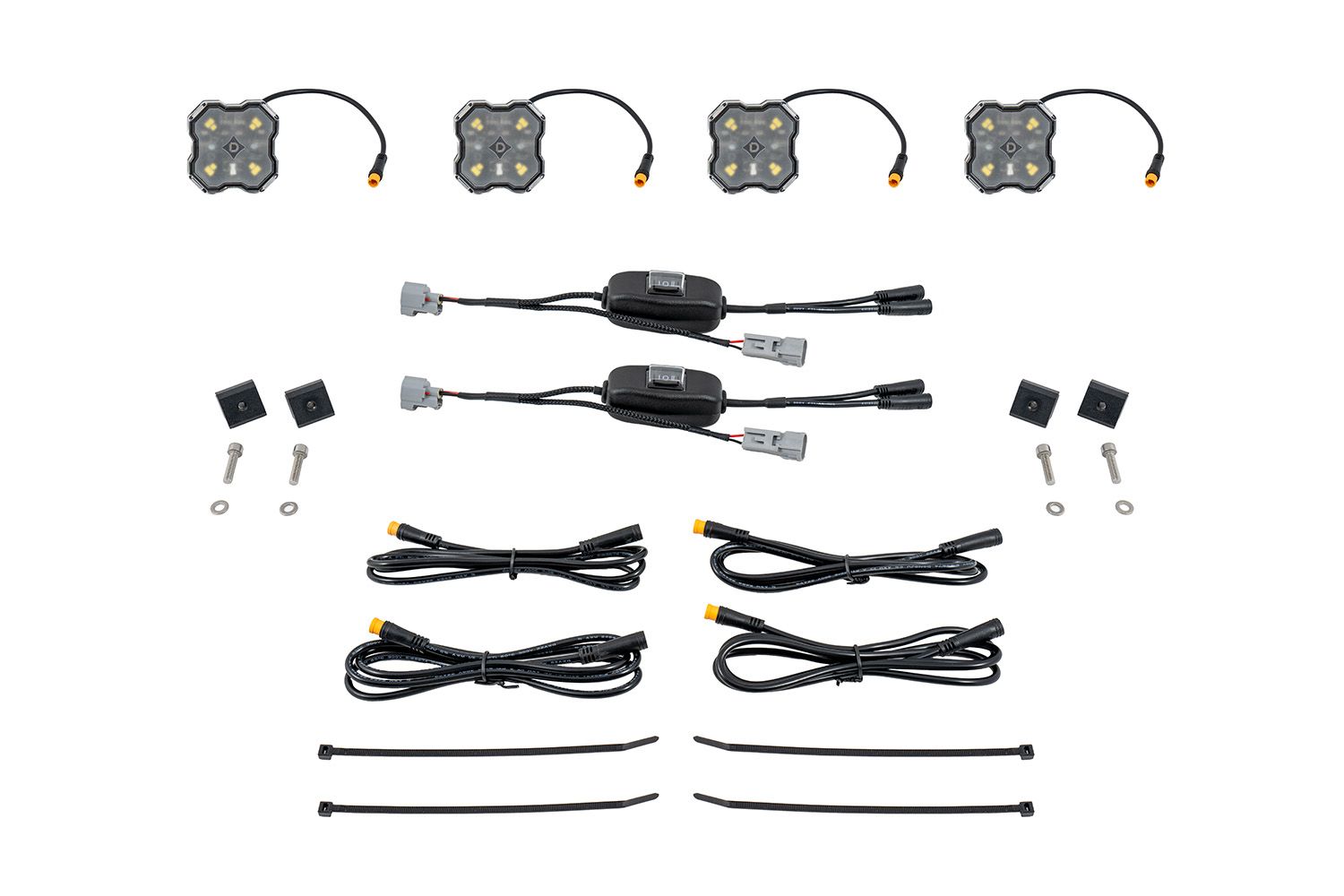

In The Box

• Four (4) Stage Series Rock Lights
• One (1) Stage Series Bed Light Wiring Kit
• Four (4) T-Slot Nuts
• Mounting Hardware
• Installation guide

Specifications

• Measured Lumens: 800
• Intensity (cd): 300
• Color Temp (CCT): 5700K
• Beam Angle: Round, 60°
• Current (amps @ 13.2V): 1.1
• Wire Size: 28AWG
• Polarity: Polarity Specific
• Operating Temperature: -40C to 85C (-40F to 185F)
• LED Emitter: Lumileds Z ES
• Driver Features: Linear Regulated
• Materials: UV Coated Polycarbonate Lens, Powdercoated Aluminum
• Cooling: Passive, Pin-Fin heatsink
• Intrusion Ratings: IP68 Waterproof
• Unit Weight (lb): 0.7
