SSC1 LED Headlight Kit For 2017-2025 Can-Am Maverick X3 - by Diode Dynamics

SSC1 LED Headlight Kit For 2017-2025 Can-Am Maverick X3 - by Diode Dynamics

SKU:DD7887

Regular price $1,140.00 CAD
Regular price Sale price $1,140.00 CAD
Sale Sold out
Shipping calculated at checkout.
Item is brought in from manufacturer after order is placed. Lead times vary as some manufacturers build on-order. Contact us for timing
Style

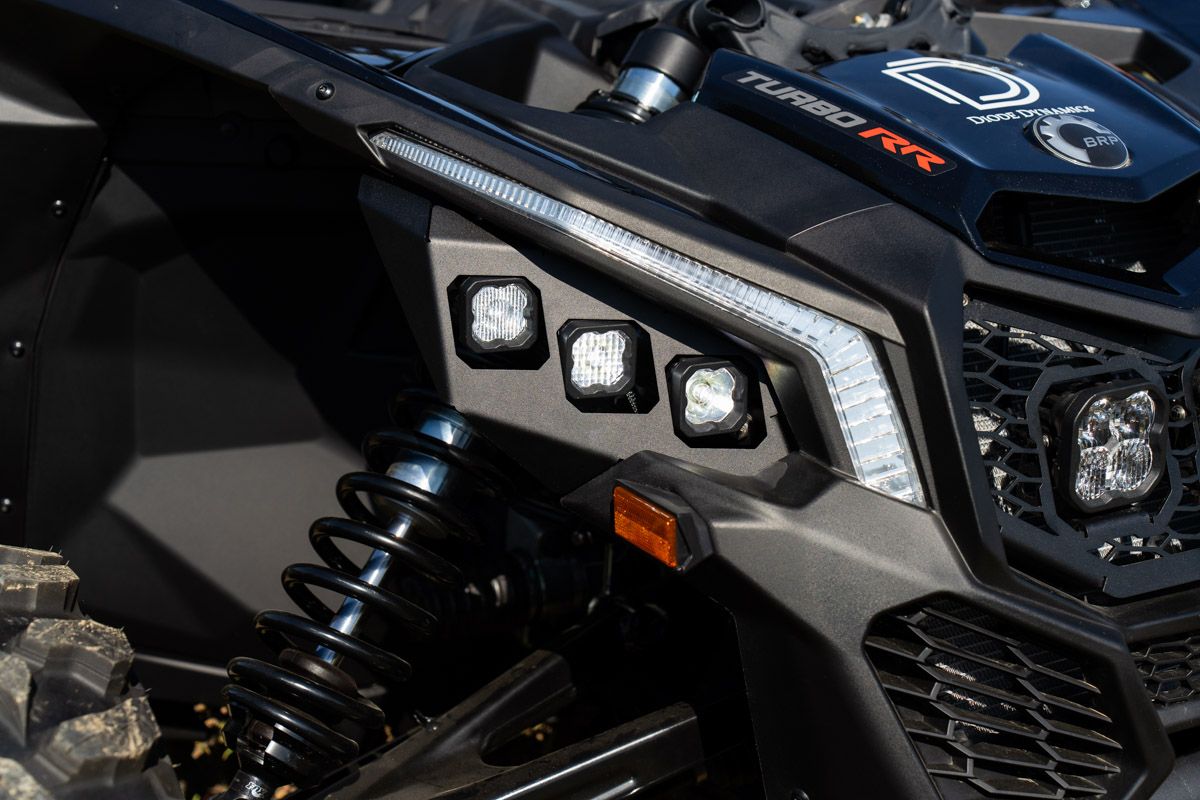

Using custom brackets this kit allows you to mount six SSC1 LED pods in place of your factory headlights.

Features

  • Direct replacement for the factory headlights on the 2017-2025 Can-Am Maverick X3.
  • Increased light output, with more functionality.
  • Plug-and-play, bolt-on installation.
  • Highly durable powder-coated stainless steel bracket and polycarbonate lenses.
  • Engineered and assembled in the USA.

In the Box

  • Two (2) Can-Am Maverick X3 Headlight Wiring Harnesses
  • Two (2) Can-Am Maverick X3 Headlamp Brackets
  • Two (2) C1 SAE White Fog LED Pods
  • Two (2) C1 Sport or Pro White Wide LED Pods
  • Two (2) C1 Sport or Pro White Spot LED Pods

Specifications

Main Beam Power (watts): Sport: 12.8, Pro: 19
Backlight Power (watts): 0.3
Main Beam Current (amps @ 12.8V): Sport: 1, Pro: 1.5
Backlight Current (amps @ 12.8V): 0.024
Measured Lumens: 2,300 lm
Intensity (cd): Wide: 5,400 cd, Spot: 23,000 cd
Color Temp (CCT): 6000K
Beam Angle: Wide, 100°x8°, Spot, 6°x6°, Fog, 98°x9°
Power (watts): Main Beam: 19, Backlight: 0.3
Operating Voltage: 9-16V
Current (amps @ 12.8V): Main Beam: 1.5, Backlight: 0.024
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Cree XHP50
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP67 Weatherproof
Unit Weight (lb): 3.2
Product Weight (lb): 6.4
