Diode Dynamics

Stage Series C1 Infrared (IR) LED Pod - by Diode Dynamics

SKU:DD8835P

$556.00 CAD

Sale Sold out

Shipping calculated at checkout.

Wavelength 940nm 850nm

Power & Beam Sport Flood Sport Spot Sport Wide Pro Flood Pro Spot Pro Wide

Quantity Pair Single

Product variants

Quantity

Features

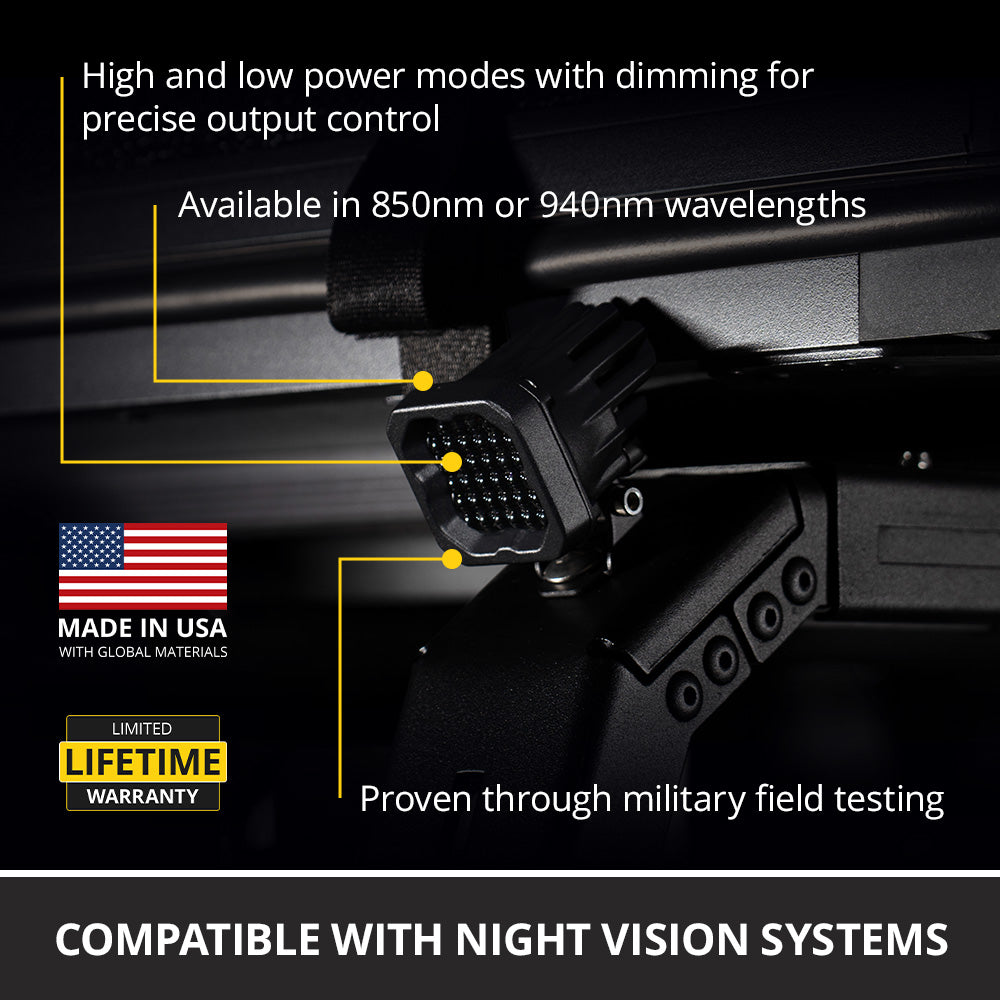

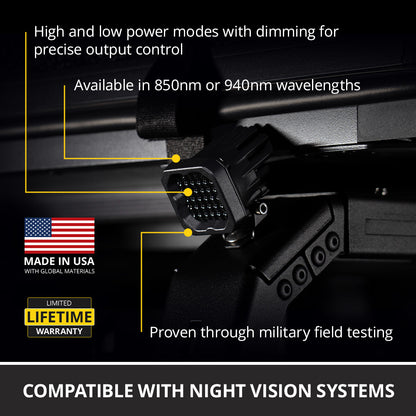

High and low IR modes with PWM and variable-voltage dimming
OSRAM IR emitters and an IR-filtering lens for night vision use
Made in USA with Global Materials

By variant

SKU / Variant	Variant-specific
DD8835P 940nm / Sport Flood / Pair	940nm infrared illumination in a compact C1 pod Sport power level with flood beam pattern
DD8834P 940nm / Sport Spot / Pair	940nm infrared illumination in a compact C1 pod Sport power level with spot beam pattern
DD8833P 940nm / Sport Wide / Pair	940nm infrared illumination in a compact C1 pod Sport power level with wide beam pattern
DD8927P 940nm / Pro Flood / Pair	940nm infrared illumination in a compact C1 pod Pro power level with flood beam pattern
DD8927S 940nm / Pro Flood / Single	940nm infrared illumination in a compact C1 pod Pro power level with flood beam pattern
DD8926P 940nm / Pro Spot / Pair	940nm infrared illumination in a compact C1 pod Pro power level with spot beam pattern
DD8926S 940nm / Pro Spot / Single	940nm infrared illumination in a compact C1 pod Pro power level with spot beam pattern
DD8925P 940nm / Pro Wide / Pair	940nm infrared illumination in a compact C1 pod Pro power level with wide beam pattern
DD8925S 940nm / Pro Wide / Single	940nm infrared illumination in a compact C1 pod Pro power level with wide beam pattern
DD8924P 850nm / Sport Flood / Pair	850nm infrared illumination in a compact C1 pod Sport power level with flood beam pattern
DD8924S 850nm / Sport Flood / Single	850nm infrared illumination in a compact C1 pod Sport power level with flood beam pattern
DD8923P 850nm / Sport Spot / Pair	850nm infrared illumination in a compact C1 pod Sport power level with spot beam pattern
DD8923S 850nm / Sport Spot / Single	850nm infrared illumination in a compact C1 pod Sport power level with spot beam pattern
DD8922P 850nm / Sport Wide / Pair	850nm infrared illumination in a compact C1 pod Sport power level with wide beam pattern
DD8922S 850nm / Sport Wide / Single	850nm infrared illumination in a compact C1 pod Sport power level with wide beam pattern
DD8930P 850nm / Pro Flood / Pair	850nm infrared illumination in a compact C1 pod Pro power level with flood beam pattern
DD8930S 850nm / Pro Flood / Single	850nm infrared illumination in a compact C1 pod Pro power level with flood beam pattern
DD8929P 850nm / Pro Spot / Pair	850nm infrared illumination in a compact C1 pod Pro power level with spot beam pattern
DD8929S 850nm / Pro Spot / Single	850nm infrared illumination in a compact C1 pod Pro power level with spot beam pattern
DD8928P 850nm / Pro Wide / Pair	850nm infrared illumination in a compact C1 pod Pro power level with wide beam pattern
DD8928S 850nm / Pro Wide / Single	850nm infrared illumination in a compact C1 pod Pro power level with wide beam pattern

Overview

Build infrared lighting into tighter spaces with the Diode Dynamics SSC1 IR LED Pod. Its compact C1 platform gives custom night vision setups a dedicated source of IR illumination, with beam patterns suited to different lighting positions.

Built for Your Setup. The light operates on 9-16V systems and uses a Deutsch DT 4-Pin connection. Two pods supplied in this package.

Night Vision Compatibility. Match the wavelength to your equipment. 850nm may show a more noticeable red glow; 940nm offers a lower visible signature.

Proven Reliability. Developed through military field testing. Made in USA with Global Materials.

Infrared Safety. Infrared output may not be visible to the naked eye. Do not look directly into an operating infrared light.

Experience. For more than 20 years, Diode Dynamics has developed purpose-built automotive lighting, engineered, tested, and assembled by our team in the United States.

Specifications

	DD8835P 940nm / Sport Flood / Pair	DD8834P 940nm / Sport Spot / Pair	DD8833P 940nm / Sport Wide / Pair	DD8927P 940nm / Pro Flood / Pair	DD8927S 940nm / Pro Flood / Single	DD8926P 940nm / Pro Spot / Pair	DD8926S 940nm / Pro Spot / Single	DD8925P 940nm / Pro Wide / Pair	DD8925S 940nm / Pro Wide / Single	DD8924P 850nm / Sport Flood / Pair	DD8924S 850nm / Sport Flood / Single	DD8923P 850nm / Sport Spot / Pair	DD8923S 850nm / Sport Spot / Single	DD8922P 850nm / Sport Wide / Pair	DD8922S 850nm / Sport Wide / Single	DD8930P 850nm / Pro Flood / Pair	DD8930S 850nm / Pro Flood / Single	DD8929P 850nm / Pro Spot / Pair	DD8929S 850nm / Pro Spot / Single	DD8928P 850nm / Pro Wide / Pair	DD8928S 850nm / Pro Wide / Single
Wattage	High: 1.4, Low: 1.0	High: 1.4, Low: 1.0	High: 1.4, Low: 1.0	High: 3.0, Low: 2.0	High: 3.0, Low: 2.0	High: 3.0, Low: 2.0	High: 3.0, Low: 2.0	High: 3.0, Low: 2.0	High: 3.0, Low: 2.0	High: 1.5, Low: 1.0	High: 1.5, Low: 1.0	High: 1.5, Low: 1.0	High: 1.5, Low: 1.0	High: 1.5, Low: 1.0	High: 1.5, Low: 1.0	High: 3.3, Low: 2.0	High: 3.3, Low: 2.0	High: 3.3, Low: 2.0	High: 3.3, Low: 2.0	High: 3.3, Low: 2.0	High: 3.3, Low: 2.0
Warranty	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime
Country of Origin	US	US	US	US	US	US	US	US	US	US	US	US	US	US	US	US	US	US	US	US	US
Prop 65	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y
UPC	195995150516	195995150509	195995144324	195995150721	195995150738	195995150707	195995150714	195995150684	195995150691	195995150660	195995150677	195995150646	195995150653	195995150622	195995150639	195995150783	195995150790	195995150769	195995150776	195995150745	195995150752
