SS5 Grille CrossLink Light Kit for 2024 Tacoma - by Diode Dynamics

SS5 Grille CrossLink Light Kit for 2024 Tacoma - by Diode Dynamics

SKU:DD8027

Regular price $1,382.00 CAD
Regular price Sale price $1,382.00 CAD
Sale Sold out
Shipping calculated at checkout.
Style

ORDERED ON DEMAND

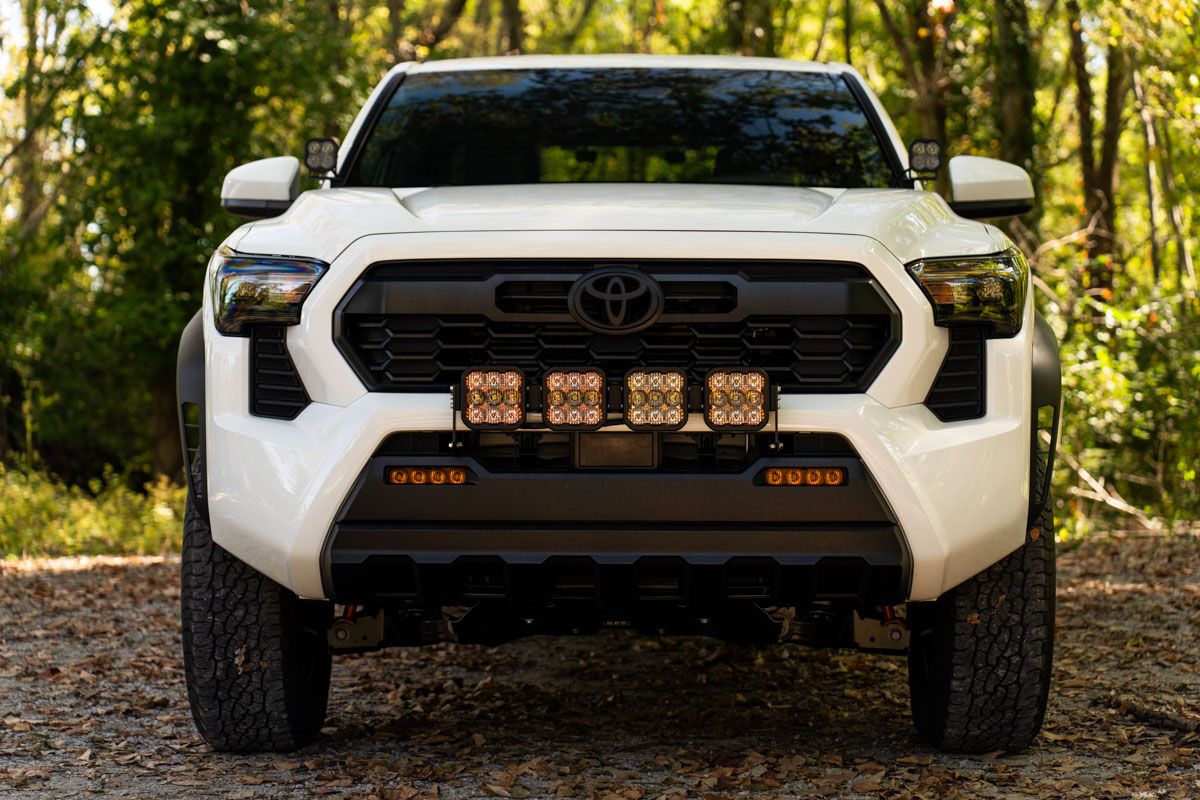

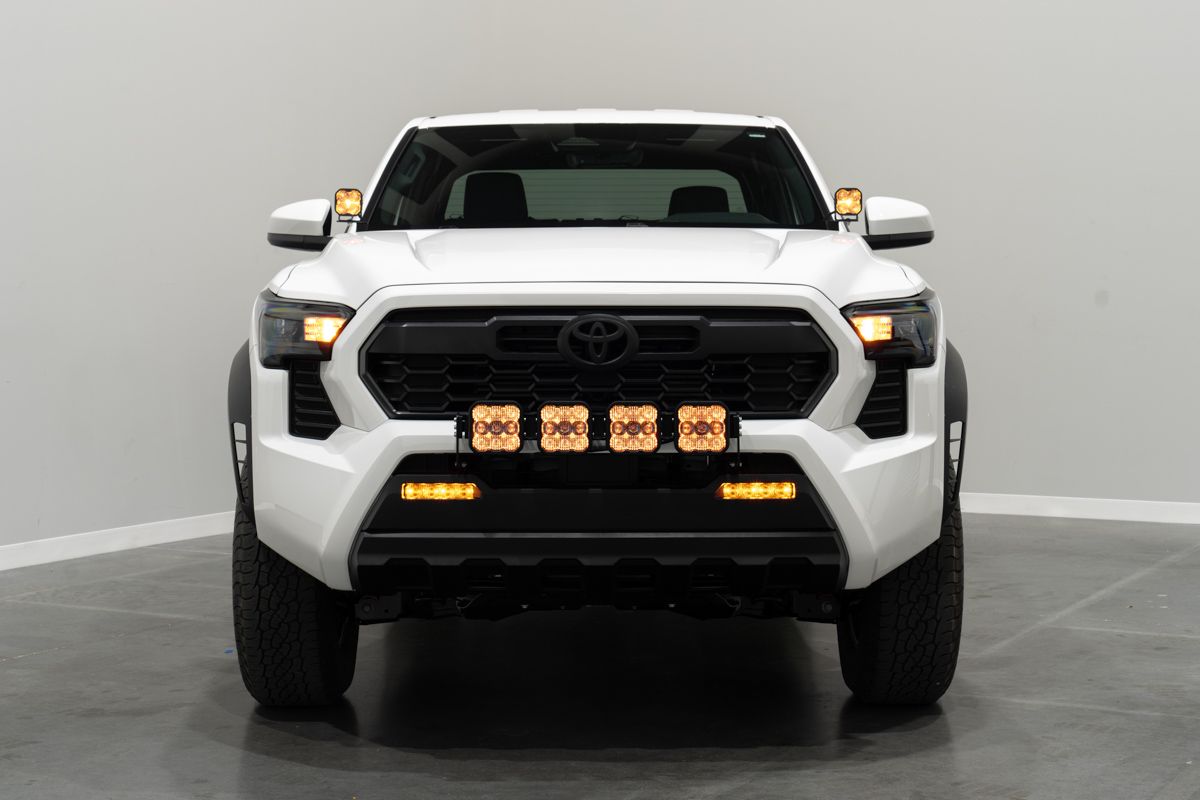

This kit allows you to mount four SS5 LED Pods in front of the factory grille.

Features

  • Bolt-on fitment on 2024 Toyota Tacoma.

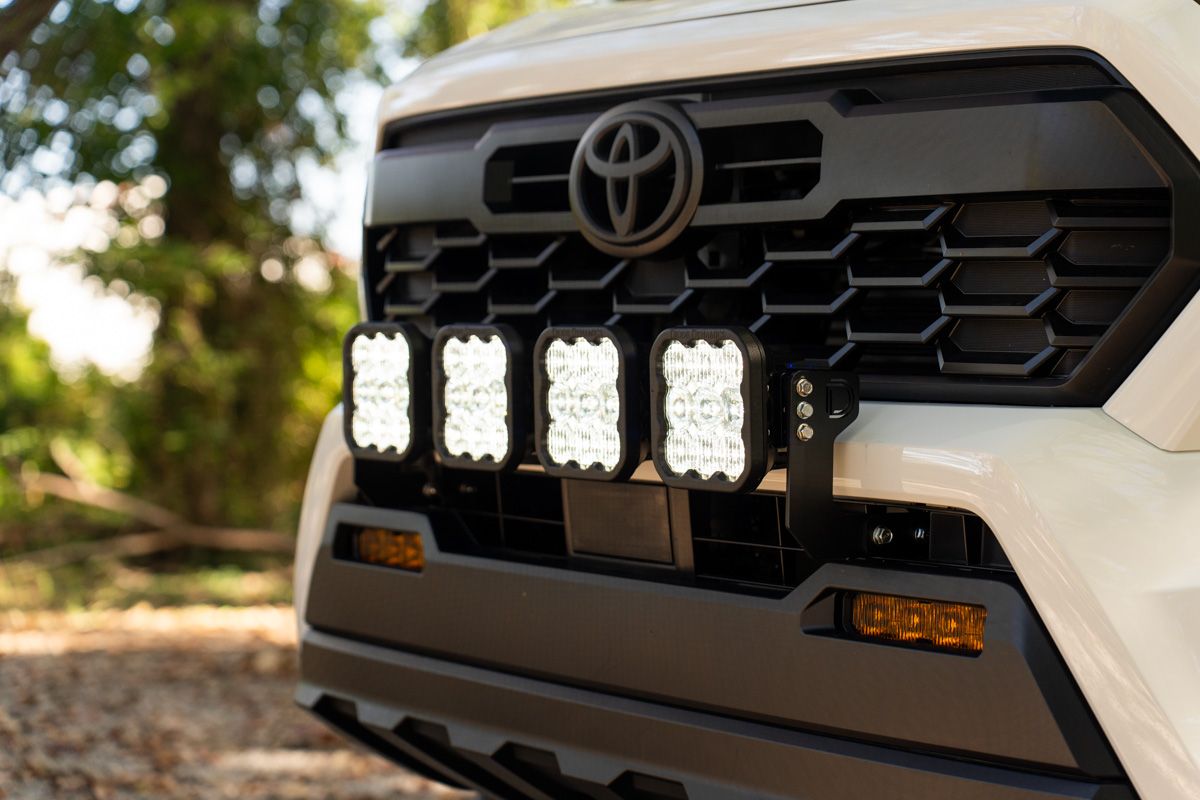

  • Allows you to mount a four-pod CrossLink lightbar across the grille.
  • Ultra-high intensity, with custom-engineered TIR optics.

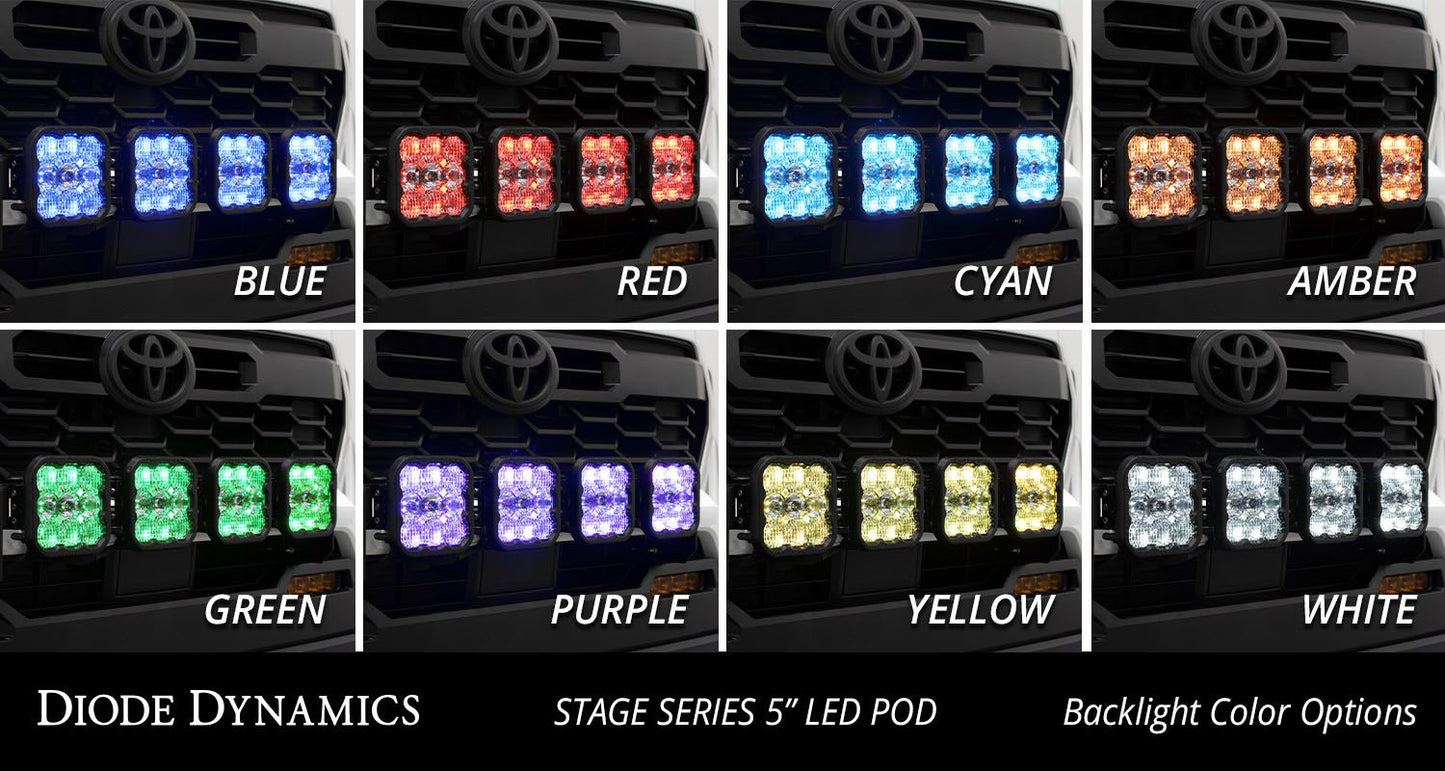

  • Selectable backlight color, with eight color options.
  • Control through factory aux switch bank using the included harness.
  • Utilizes existing mounting points for easy installation.
  • Assembled in USA.

In The Box

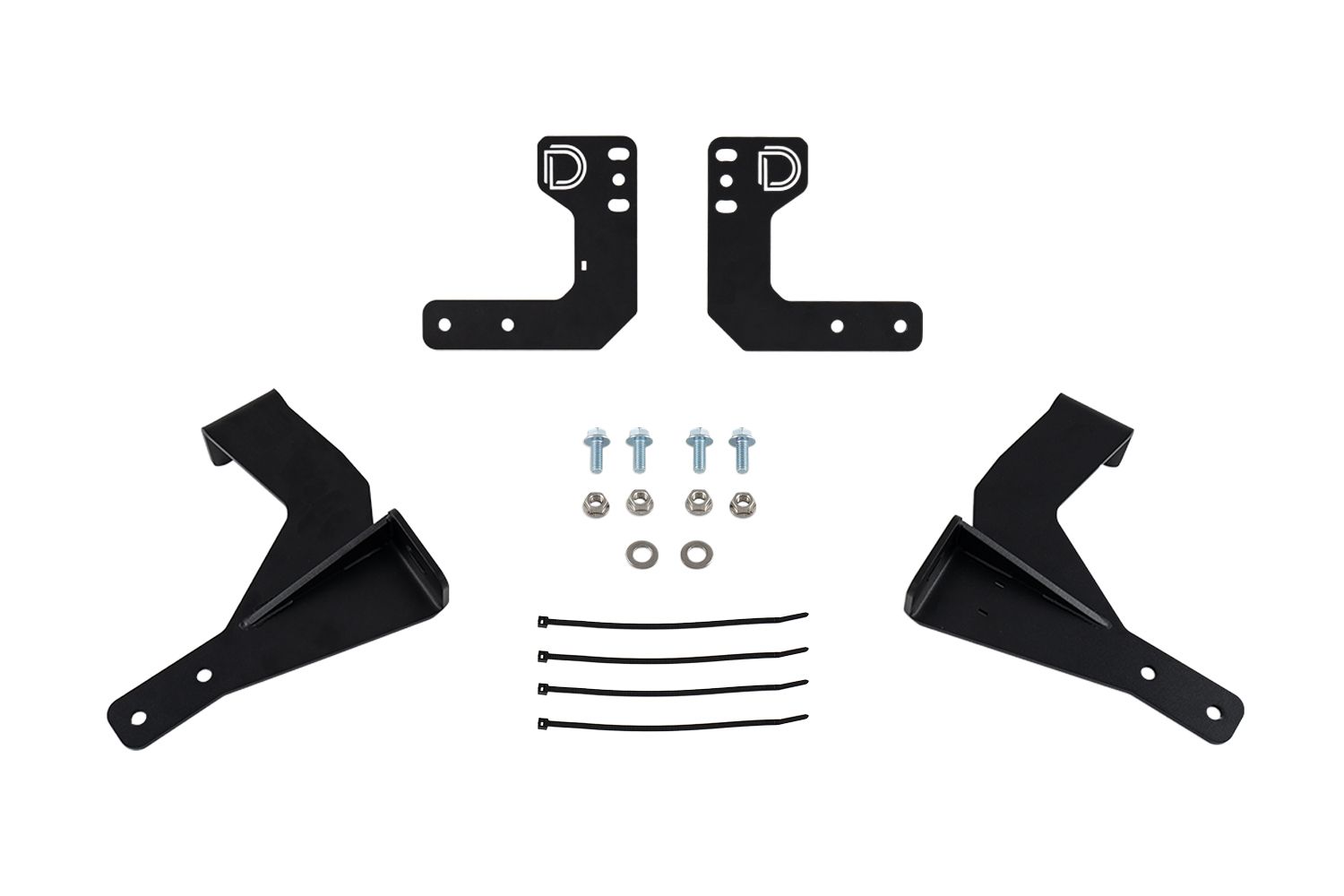

  • Four (4) Application-specific heavy-duty steel brackets for installation on 2024 Toyota Tacoma
  • Four (4) SS5 LED Pods
  • Three (3) CrossLinks with hardware
  • One (1) CrossLink endmount kit
  • One (1) DT 4-Pod connecting harness
  • One (1) Heavy Duty single-output harness
  • Installation Guide

Specifications

Main Beam Power (watts): Sport: 40, Pro: 90
Backlight Power (watts): White: 3.17, Yellow: 3.07
Main Beam Current (amps @ 12.8V): Sport White: 2.75, Sport Yellow: 2.8, Pro: 6
Backlight Current (amps @ 12.8V): White: 0.25, Yellow: 0.24
Color Temp (CCT): 3000K, 6000K
Beam Angle: Combo -  Driving and Flood
Operating Voltage: 9-16V
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP69K Waterproof, High Pressure
Product Weight (lb): 18
