Stage Series 3" Infrared (IR) LED Pod - by Diode Dynamics

SKU:DD7774P

$834.00 CAD

Sale Sold out

Shipping calculated at checkout.

Wavelength 940nm 850nm

Power Level Sport Pro

Quantity Pair Single

Product variants

Quantity

Features

High and low IR modes with PWM and variable-voltage dimming

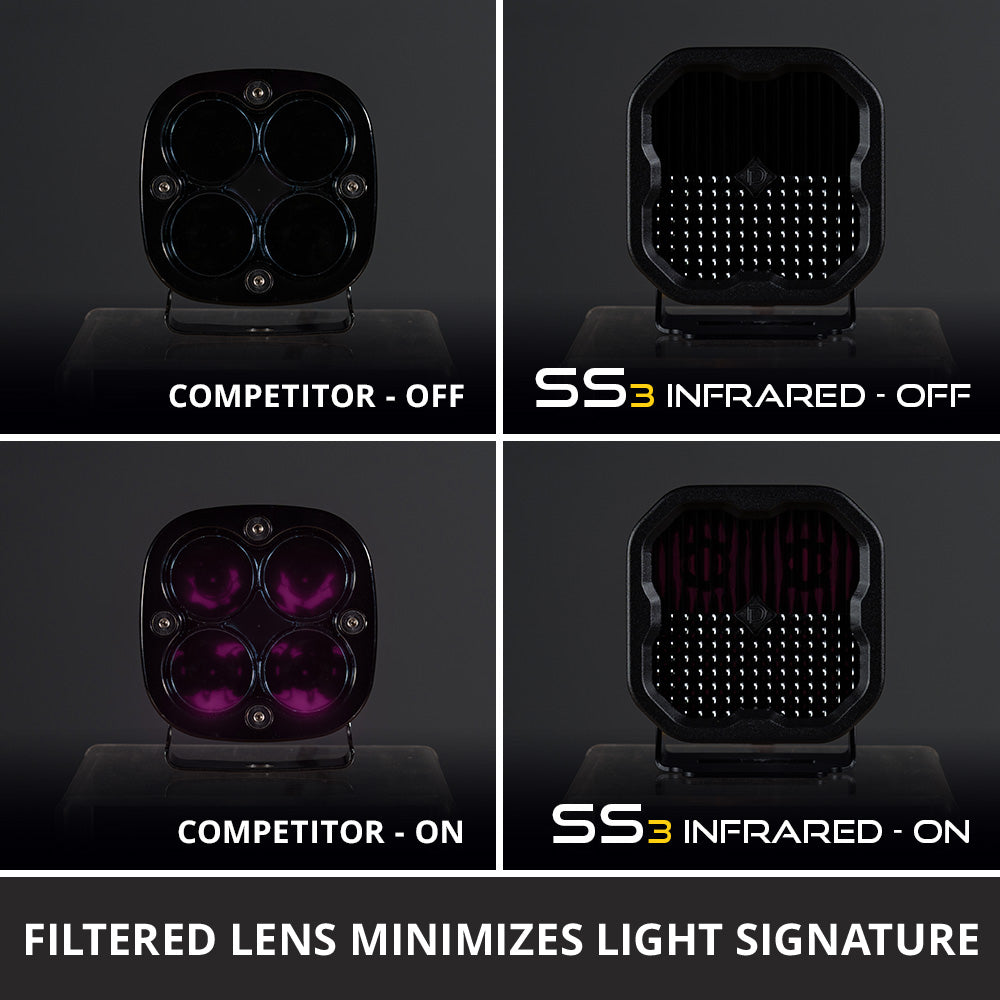

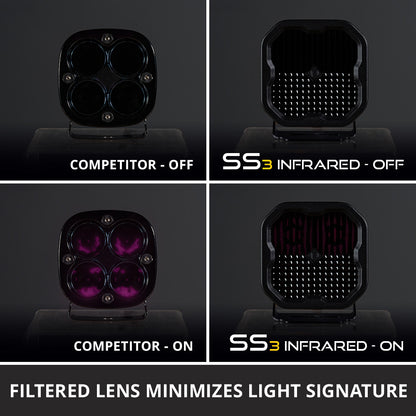

OSRAM IR emitters and an IR-filtering lens to reduce visible signature
Made in USA with Global Materials

By variant

SKU / Variant	Variant-specific
DD7774P 940nm / Sport / Pair	940nm infrared illumination for compatible night vision equipment Sport power level with a Combo beam for width and distance
DD7774S 940nm / Sport / Single	940nm infrared illumination for compatible night vision equipment Sport power level with a Combo beam for width and distance
DD8919P 940nm / Pro / Pair	940nm infrared illumination for compatible night vision equipment Pro power level with a Combo beam for width and distance
DD8919S 940nm / Pro / Single	940nm infrared illumination for compatible night vision equipment Pro power level with a Combo beam for width and distance
DD8918P 850nm / Sport / Pair	850nm infrared illumination for compatible night vision equipment Sport power level with a Combo beam for width and distance
DD8918S 850nm / Sport / Single	850nm infrared illumination for compatible night vision equipment Sport power level with a Combo beam for width and distance
DD8920P 850nm / Pro / Pair	850nm infrared illumination for compatible night vision equipment Pro power level with a Combo beam for width and distance
DD8920S 850nm / Pro / Single	850nm infrared illumination for compatible night vision equipment Pro power level with a Combo beam for width and distance

Overview

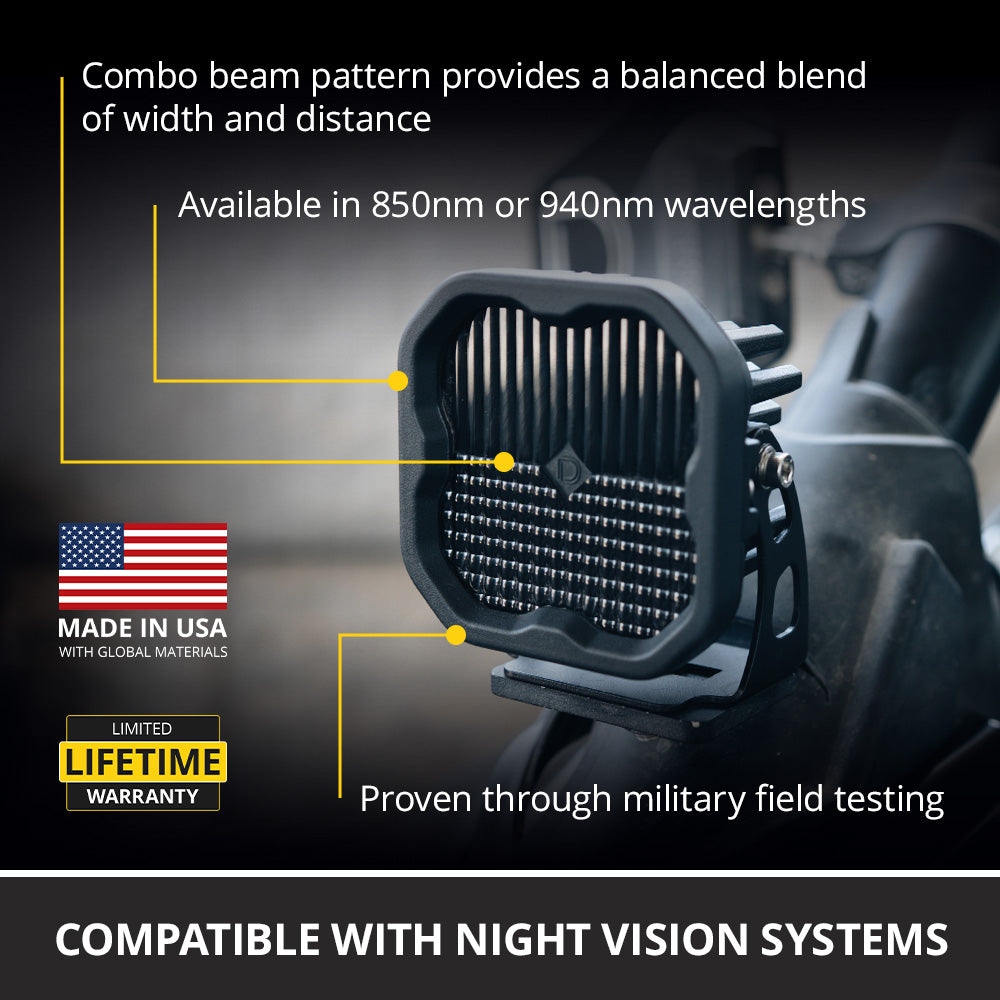

Add purpose-built infrared illumination to your night vision setup with the Diode Dynamics SS3 IR LED Pod. Its Combo beam balances width and distance for forward illumination, with selectable high and low output to suit the scene ahead.

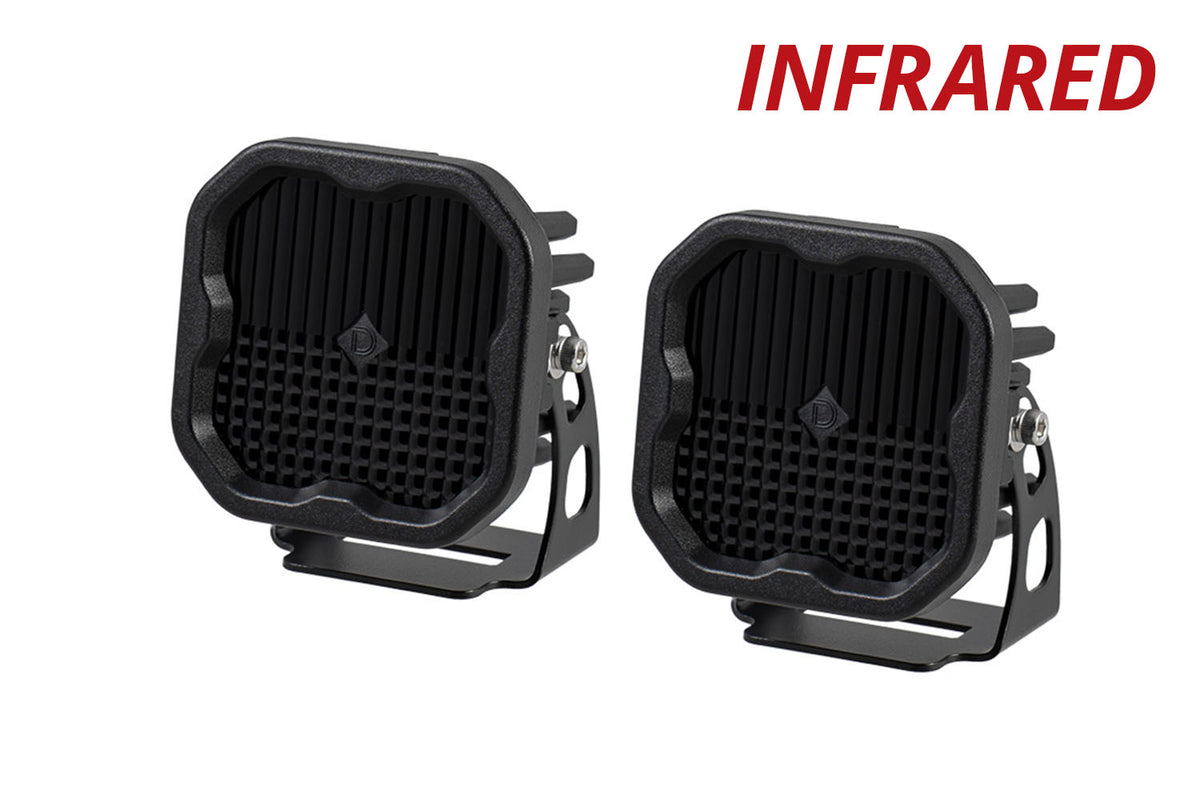

Built for Your Setup. The light operates on 9-16V systems and uses a Deutsch DT 4-Pin connection. Two pods supplied in this package. The red wire controls high IR output, and the blue wire controls low IR output.

Night Vision Compatibility. Match the wavelength to your equipment. 850nm may show a more noticeable red glow; 940nm offers a lower visible signature.

Proven Reliability. Developed through military field testing. Made in USA with Global Materials.

Infrared Safety. Infrared output may not be visible to the naked eye. Do not look directly into an operating infrared light.

Experience. For more than 20 years, Diode Dynamics has developed purpose-built automotive lighting, engineered, tested, and assembled by our team in the United States.

Specifications

	DD7774P 940nm / Sport / Pair	DD7774S 940nm / Sport / Single	DD8919P 940nm / Pro / Pair	DD8919S 940nm / Pro / Single	DD8918P 850nm / Sport / Pair	DD8918S 850nm / Sport / Single	DD8920P 850nm / Pro / Pair	DD8920S 850nm / Pro / Single
Wattage	High: 8, Low: 2	High: 8, Low: 2	High: 13.4, Low: 3.3	High: 13.4, Low: 3.3	High: 8.6, Low: 2.2	High: 8.6, Low: 2.2	High: 14.2, Low: 3.6	High: 14.2, Low: 3.6
Warranty	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime	Lifetime
Country of Origin	US	US	US	US	US	US	US	US
Prop 65	Y	Y	Y	Y	Y	Y	Y	Y
UPC	195995150424	195995150448	195995150561	195995150578	195995150547	195995150554	195995150585	195995150592
