Siberia QB Cube Light - by Strands

ORDERED ON DEMAND - Sold Individually

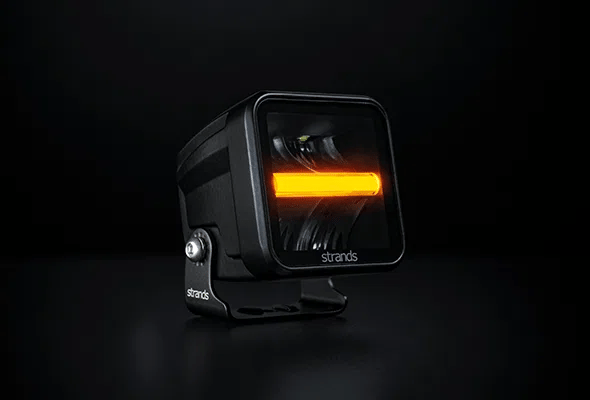

The Siberia Qube light is re-defining the traditional cube light segment.  This compact, powerful cube incorporates 2 separate lighting functions – a driving/work light and a centrally located position light.

The combo driving light pattern provides exceptional range from this small housing. The combination pattern delivers both long range and side-of-the-road illumination, allowing you to see objects sooner, improving road/trail/work area safety.  The compact size makes it an ideal option for ATVs, Sport Bikes and other off-road adventure vehicles. The second feature is a dual colour position light, which illuminates with your choice of output – a cool white or rich amber colour.  This feature gives you the option of linking to daytime running lights, flashers or other functions and customizes the appearance of your vehicle.  Pair the Qube with your Siberia Light Bars or Night/Bush Ranger round lights for flexible, functional performance.

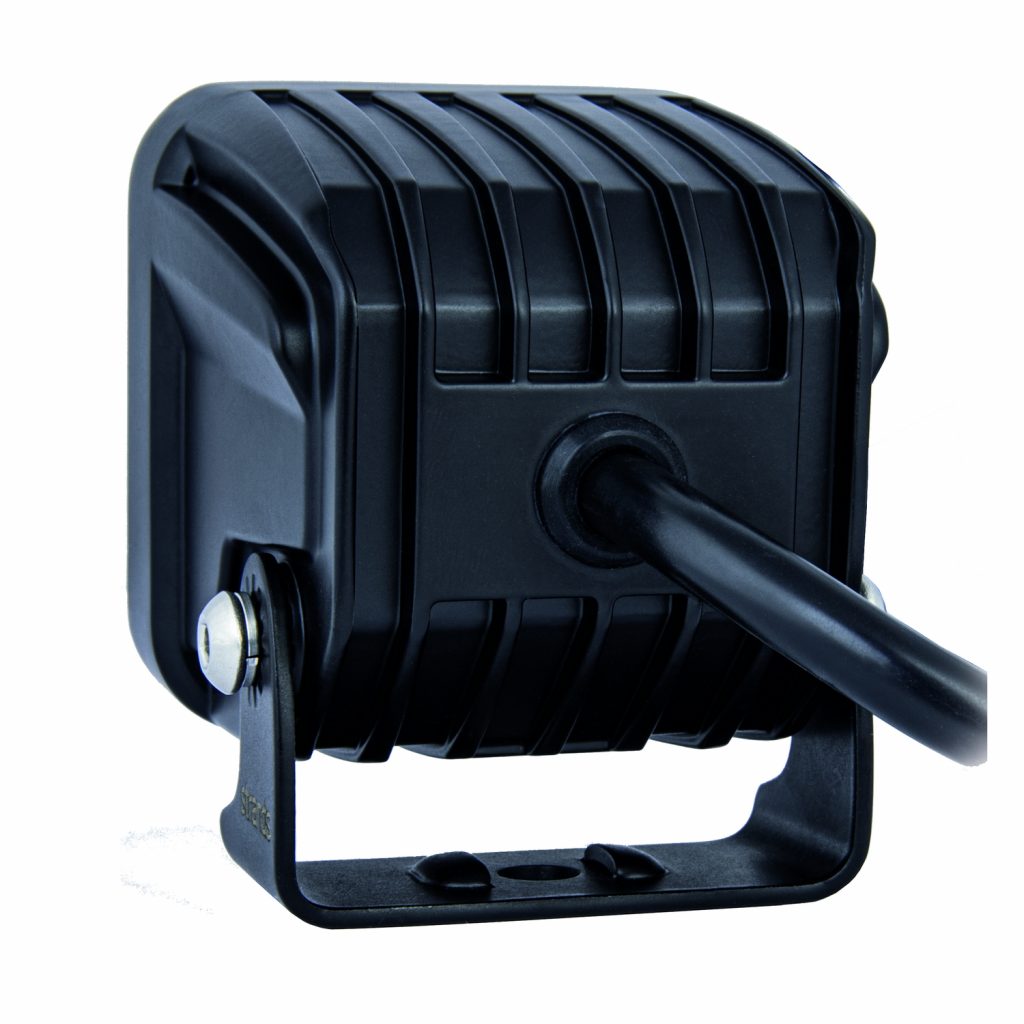

Included in the package are heavy duty brackets and stainless hardware to ensure ease of installation.  Harness adapters (PN270438) are required to seamlessly integrate the lamp’s DT4 connector with the DT2 connector on our harnesses.  (one harness adapter required per lamp). See below for details.

Features:

Compact Size

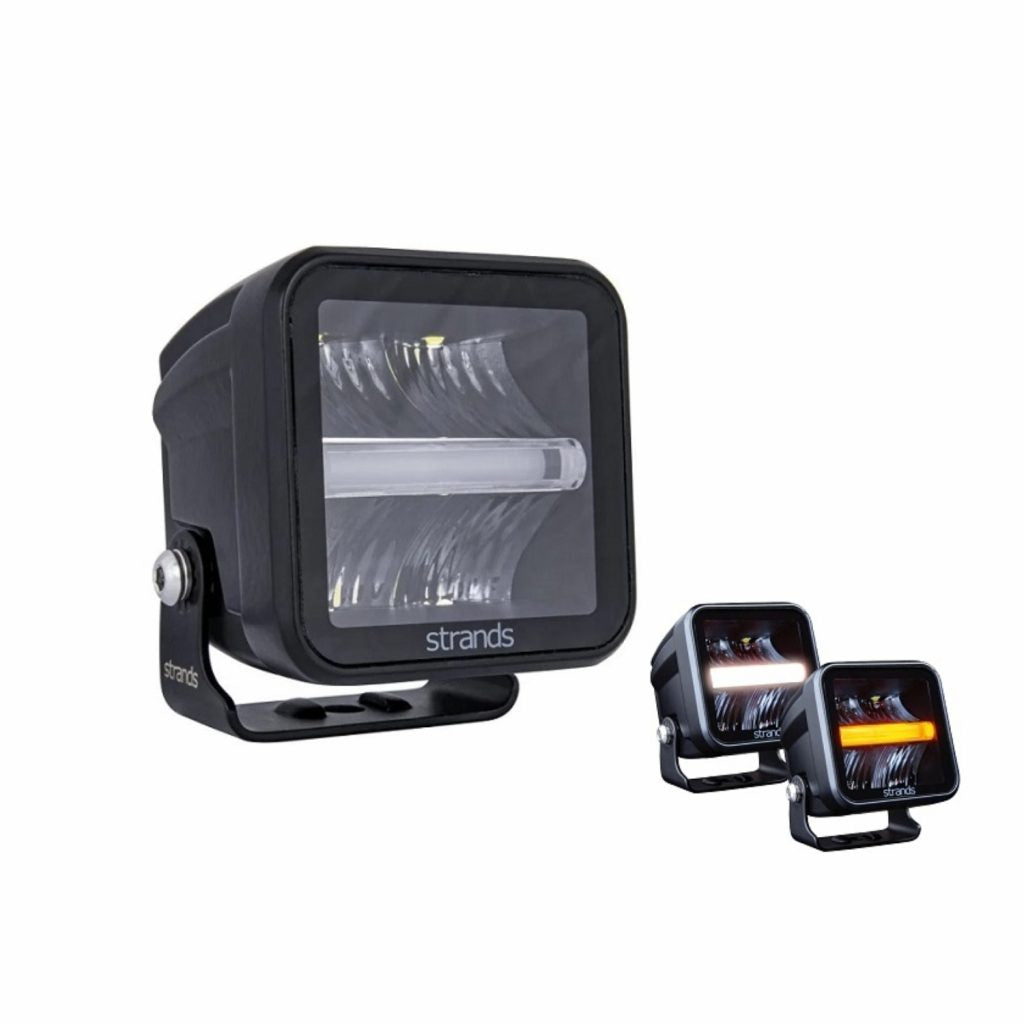

Dual Position Light (White & Amber)
4800Lm

Specifications:

• Type of lamp LED
• Type of LED Osram
• PCS LED´s 4
• Voltage (V DC) 9-32V DC
• Theoretical effect (w) 12V 40
• Theoretical effect (w) 24V 40
• Consumption (w) 12V 37.1
• Consumption (w) 24V 36.5
• Functions Temperature control system
• Theoretical lumen 4800
• Actual lumen 2949

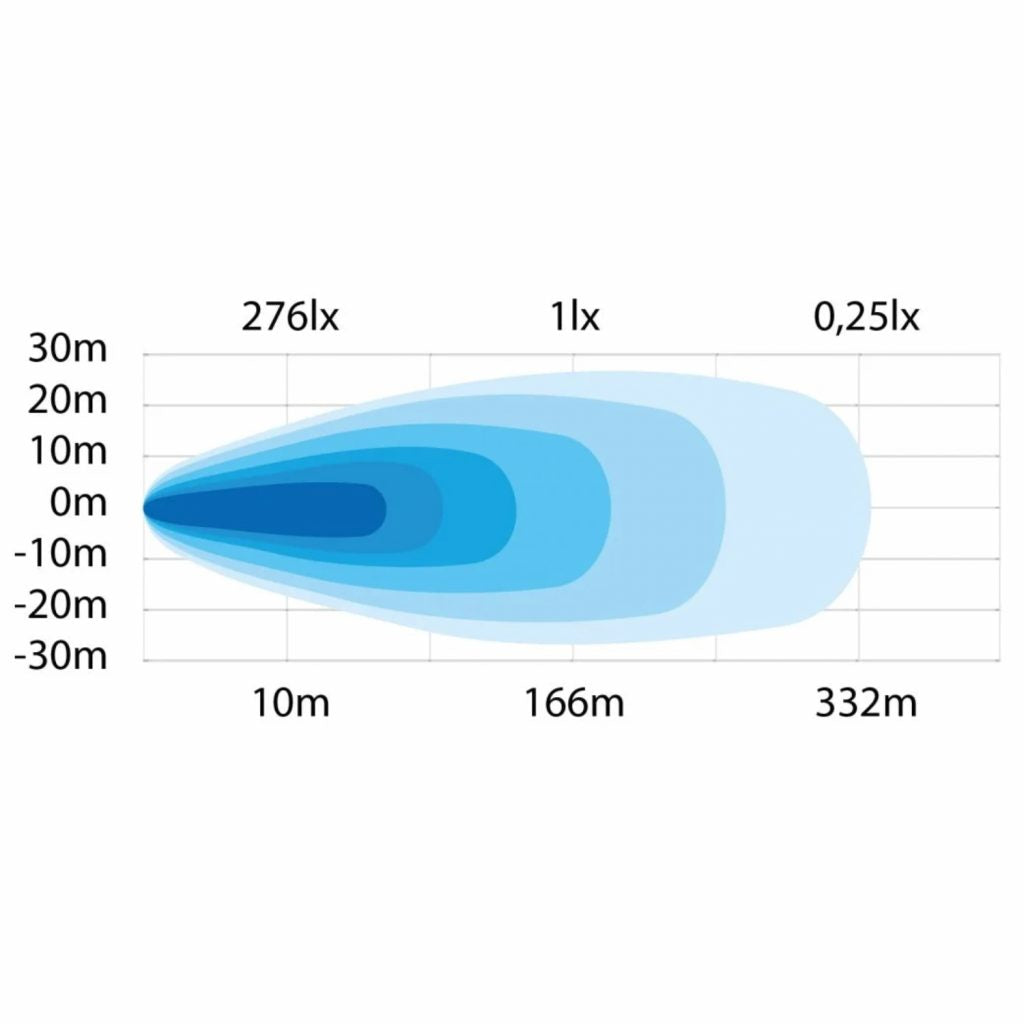

• 1 LUX @ m 166
• Kelvin 6000
• IP-class 67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s Amber
• Beam pattern Flood
• Position light Yes amber and white
• Connection DT-4
• Cable length (mm) 500
• Material bracket Stainless steel
• Material housing/chassis Aluminum
• Material lens Polycarbonate
• Length (mm) 72
• Depth (mm) 72
• Height (mm) 72
• Height including bracket (mm) 81.5
• Operating temperature -20°C – +45°C
• ADR-approved No
• E-approved  No
• EMC ECE R10
• 3 Year Function Warranty
