Vision (3-4P RTT) - by James Baroud

James Baroud Vision 180 Soft Roof Tent

The James Baroud Vision 180 soft roof tent takes family camping to the next level. Thanks to its gas strut-assisted opening, it deploys in just seconds. Spacious yet compact when closed, it fits perfectly on both small cars and more rugged vehicles. This makes it ideal for Canadian adventures, whether it’s a simple weekend getaway or a long off-grid stay.

Vision 150
Internal dimensions: 150 cm × 220 cm (59 × 87 in).
Open height: 120 cm (47 in) for excellent freedom of movement.

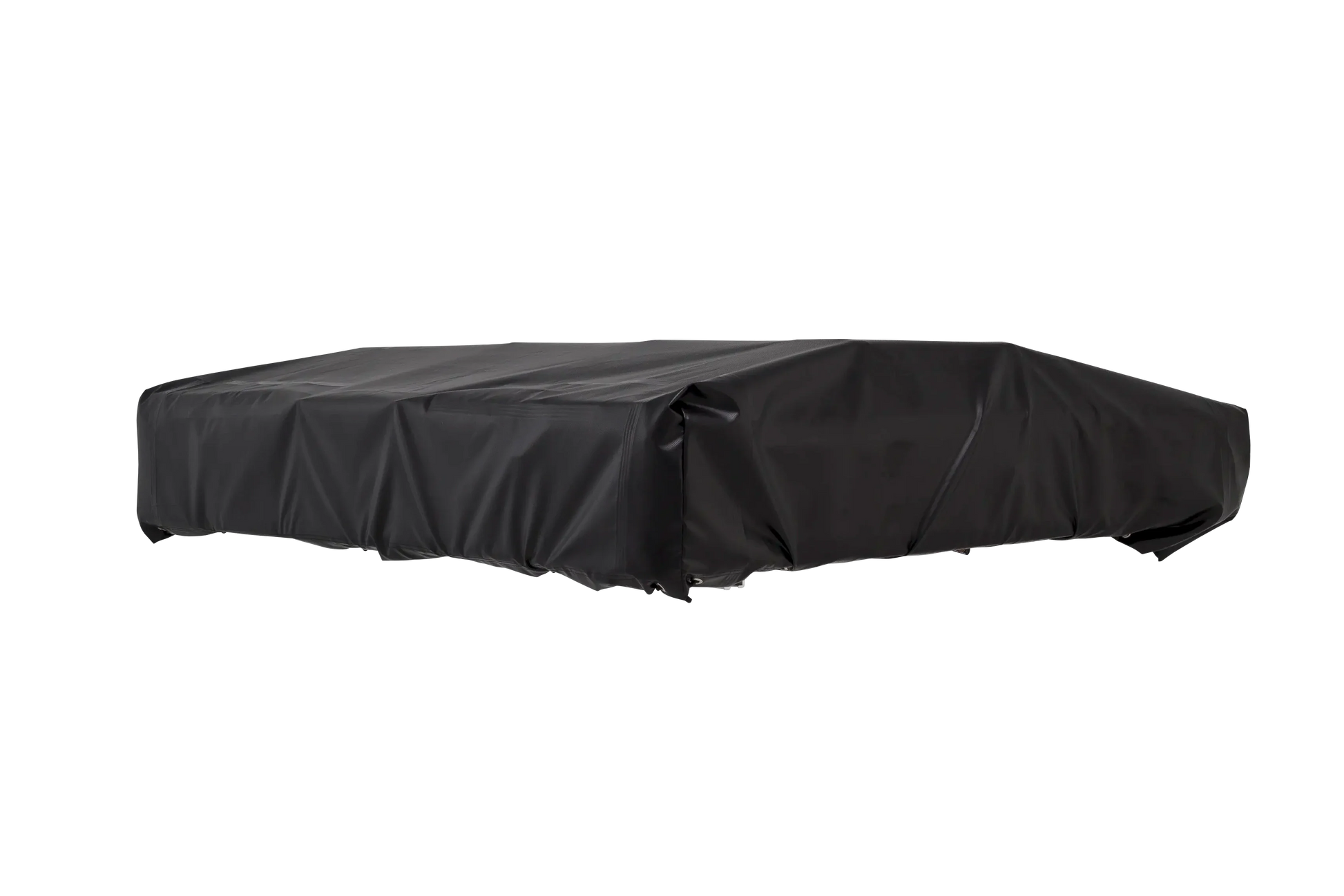

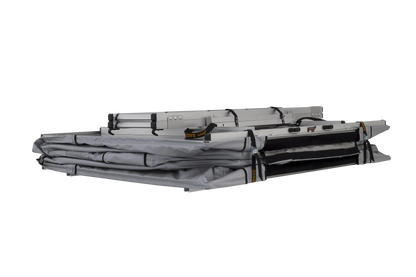

Closed height: 33.5 cm (13 in) for a low, aerodynamic profile.
Weight without ladder: 52 kg (114 lb), with a 3% variation due to hand assembly.
Capacity: 2 adults + 1 child.

Vision 180
Internal dimensions: 180 × 220 cm (71 × 87 in).

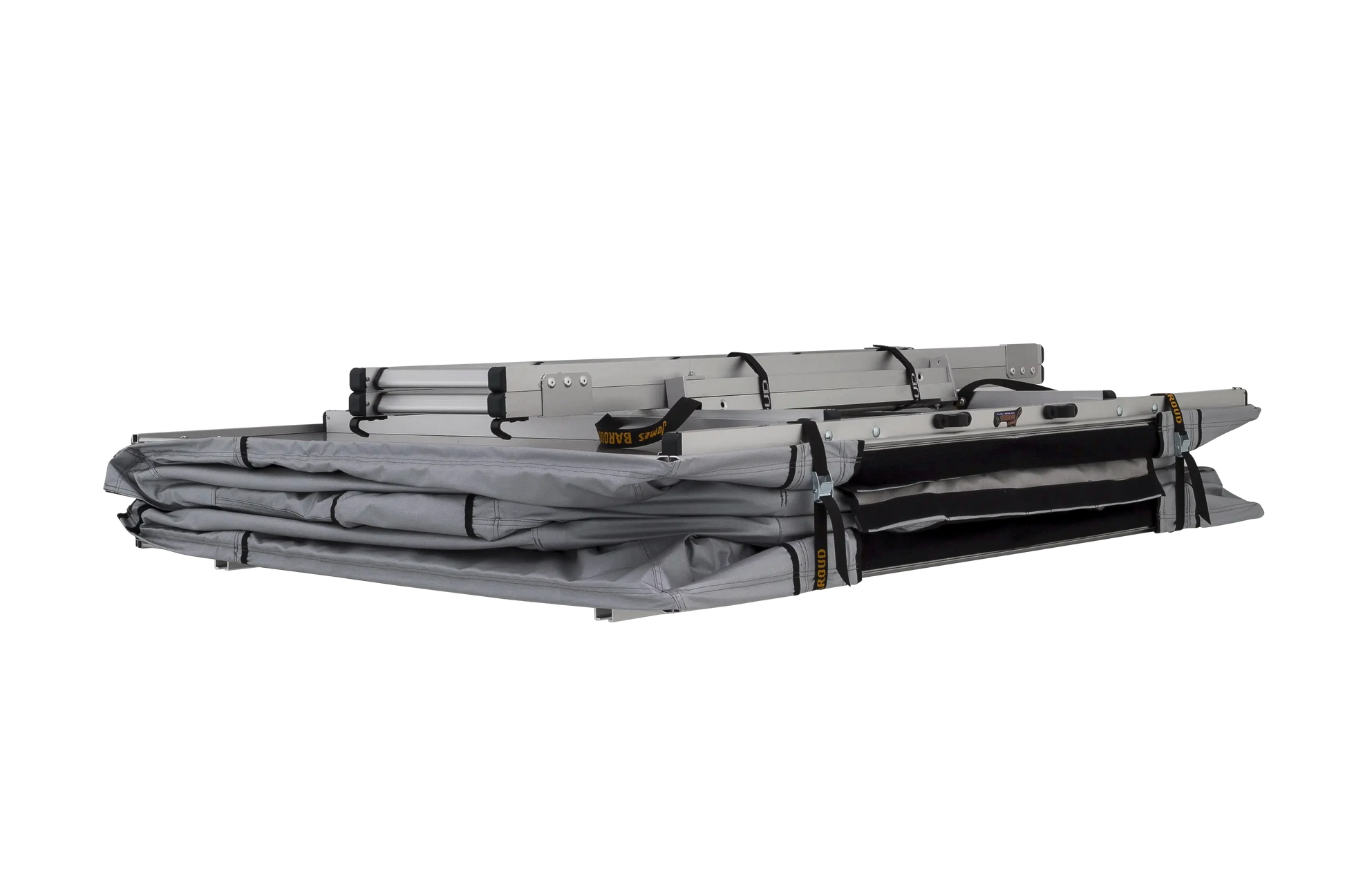

Closed width: 115 cm (45 in), compact for travel.
Open height: 120 cm (47 in), optimal freedom of movement.
Closed height: 33.5 cm (13 in), low aerodynamic profile.
Weight without ladder: 57 kg (126 lb), 5% variation due to hand assembly.
Capacity: up to 4 people, perfect for families and groups.

• Wind resistance: up to 120 km/h (75 mph) thanks to its reinforced dome shape.
• Frame: high-strength aluminum + insulated composite floor.
• Fabric: patented triple-layer fabric with thermal insulation.
• Opening: gas struts, a world first for a folding tent.
• Warranty: 5 years, unmatched in the industry.

These specifications make it easier for campers to choose. For example, its family capacity allows four people to travel comfortably, while its relatively light weight makes installation easier on most compact vehicles. As a result, you can set off faster with fewer constraints.

Premium Materials and European Manufacturing

For over 30 years, James Baroud has excelled in manufacturing high-end tents recognized worldwide. All materials are sourced from Europe, ensuring consistent quality and exceptional durability.

James Baroud hard shells are produced in Milan, while for this soft roof tent, the technical fabrics come from the Netherlands, from the same supplier used in certain NASA space applications.

Gütermann threads from Germany ensure strong and precise stitching, and each tent is assembled by hand in Porto, Portugal. As a result, you benefit from flawless construction backed by a 5-year warranty.

Patented Evolution Fabric

The three-layer fabric provides excellent insulation while remaining resistant to UV rays and water. Thanks to its structure and natural tension, it stays stable even in strong winds.

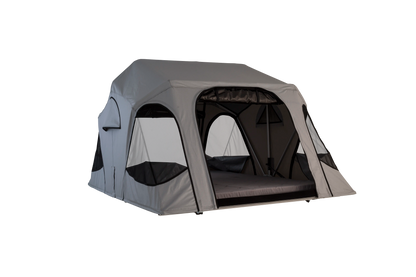

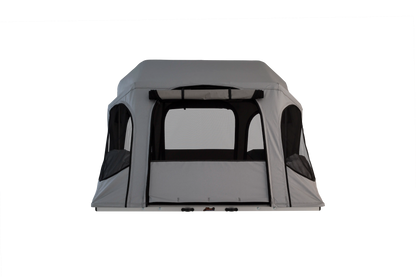

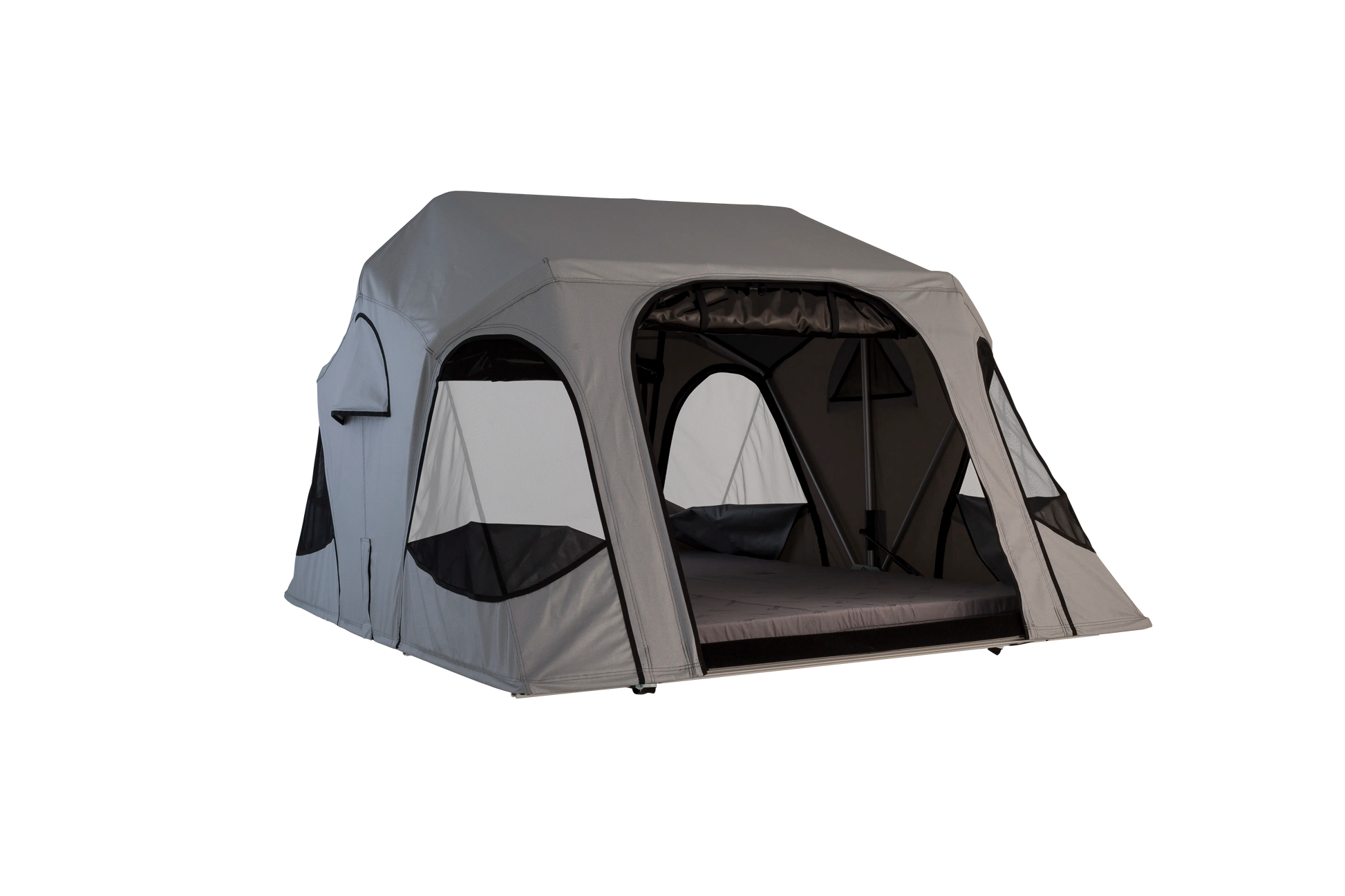

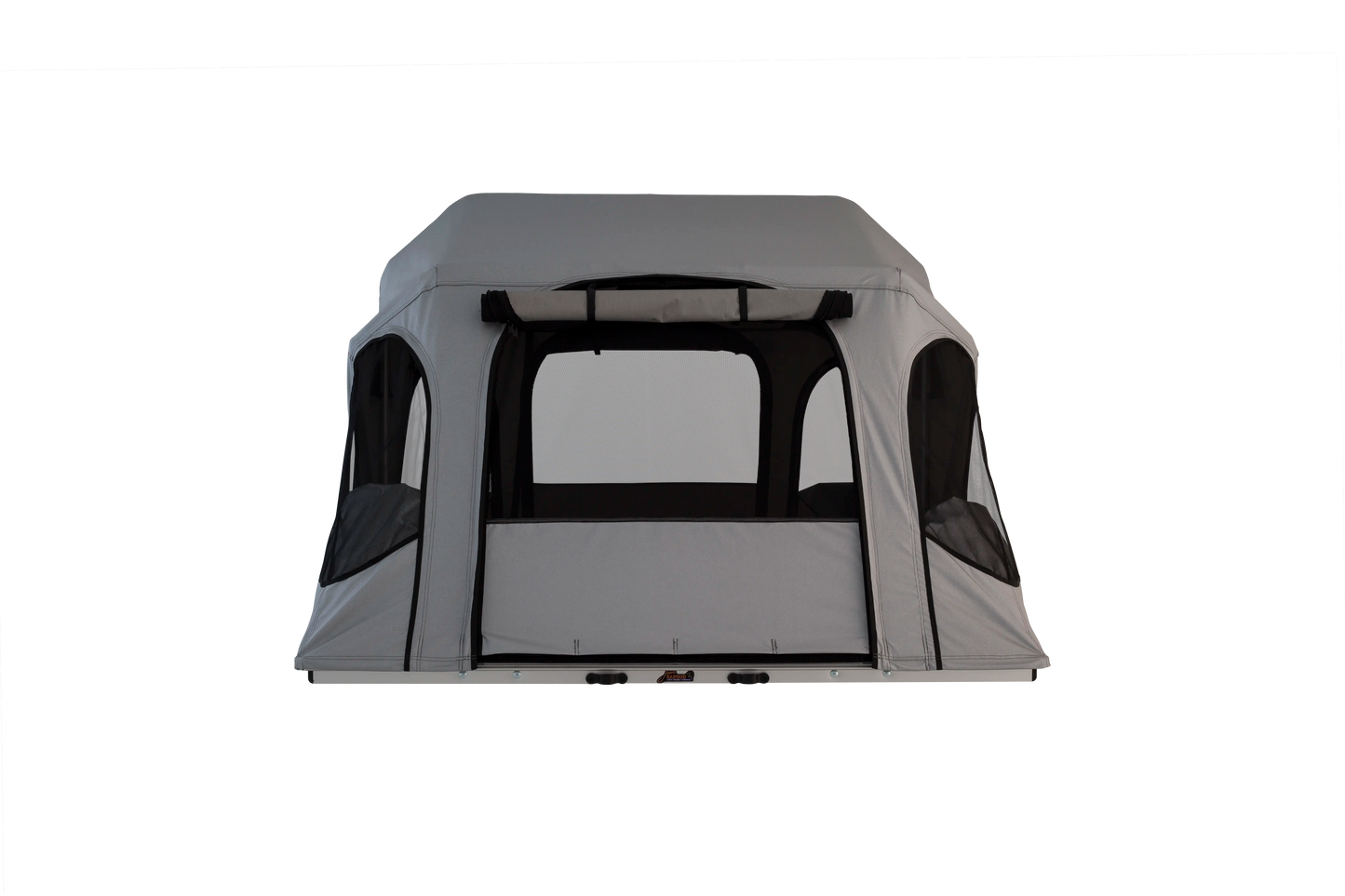

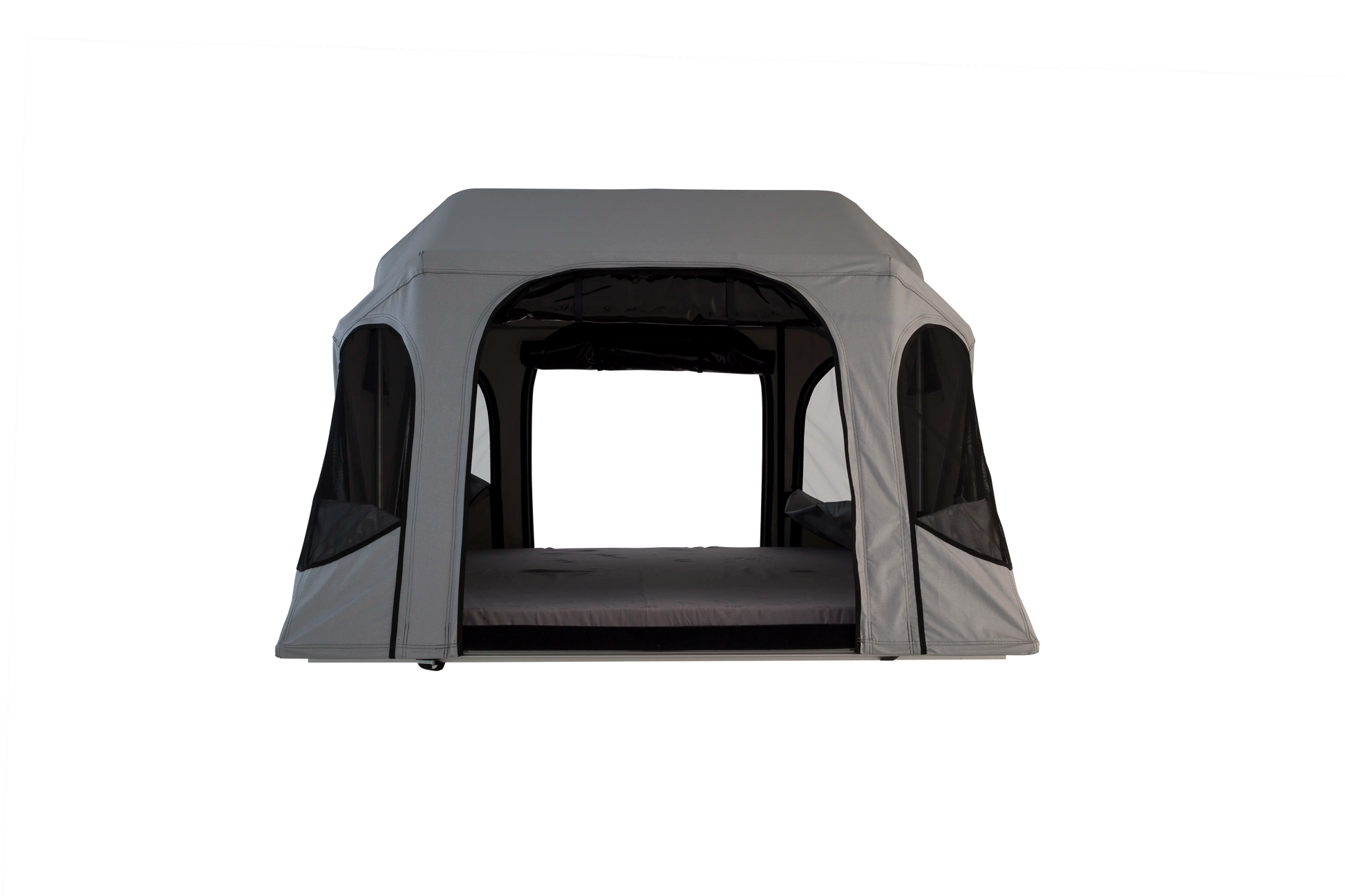

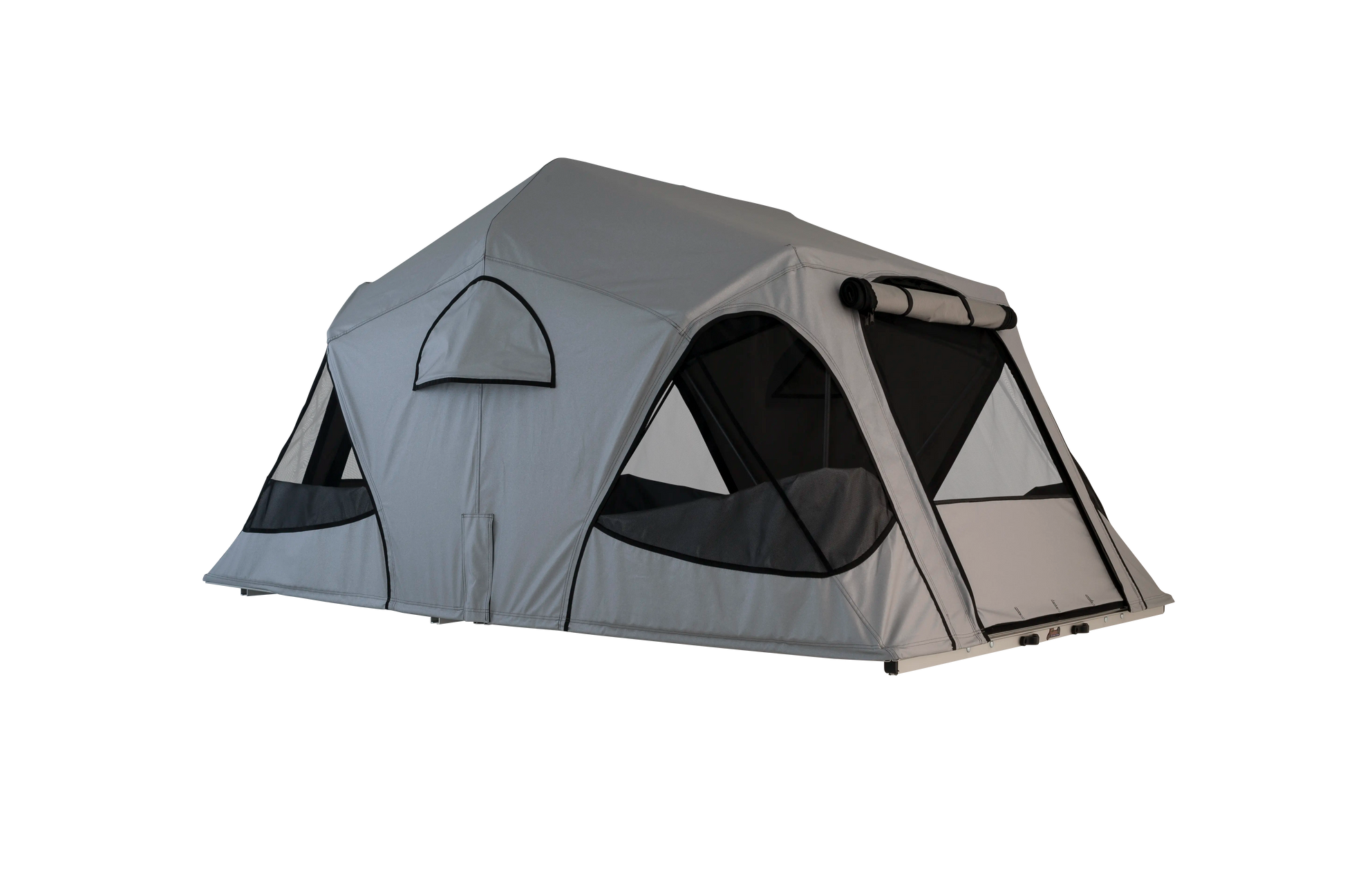

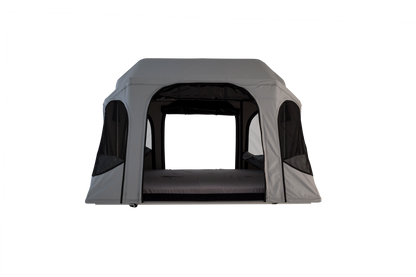

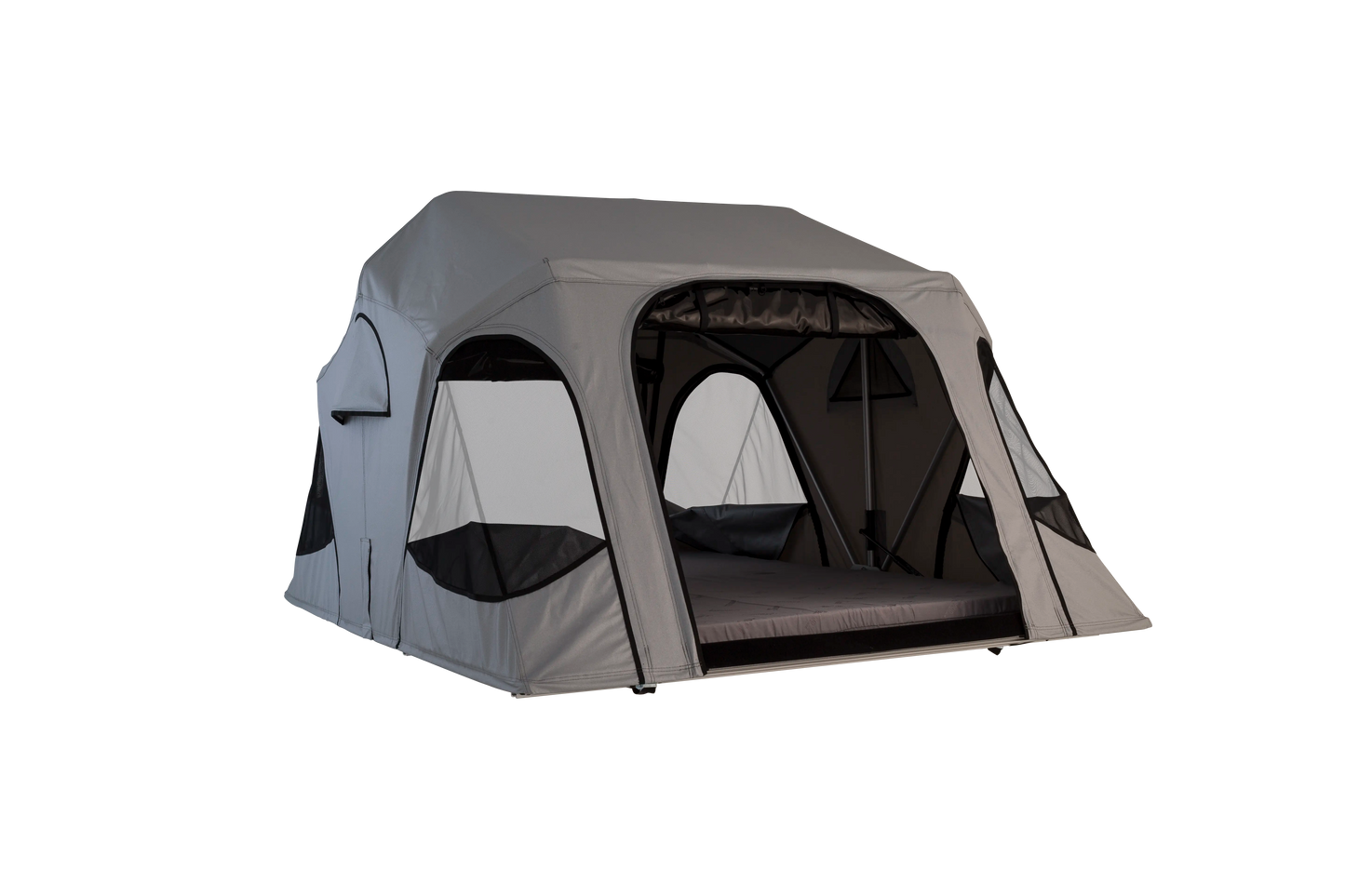

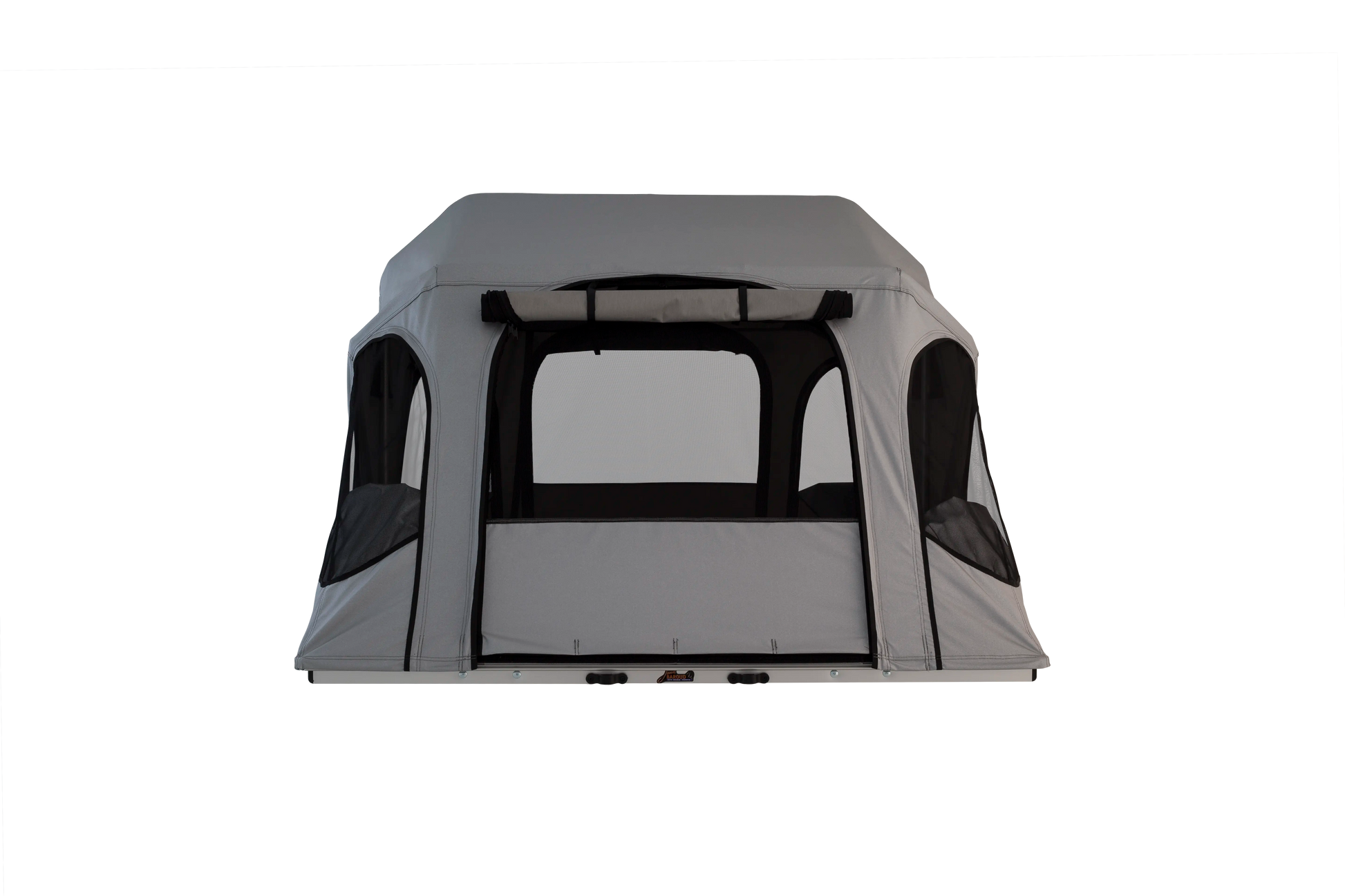

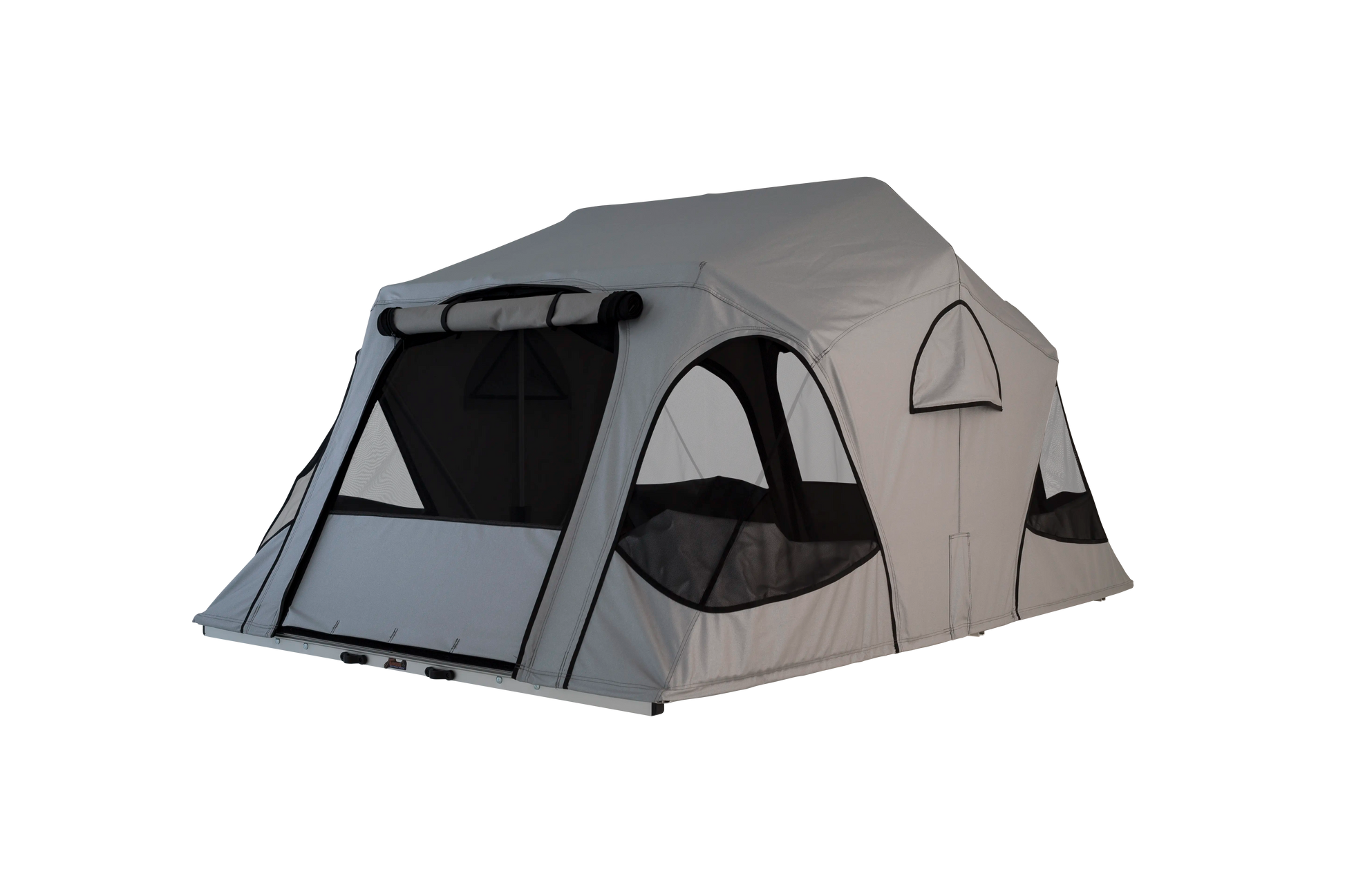

Two doors and four panoramic windows offer open views of nature, while side openings improve airflow and reduce condensation. In addition, durable mosquito nets protect against insects without sacrificing visibility.

Durable and Versatile Floor

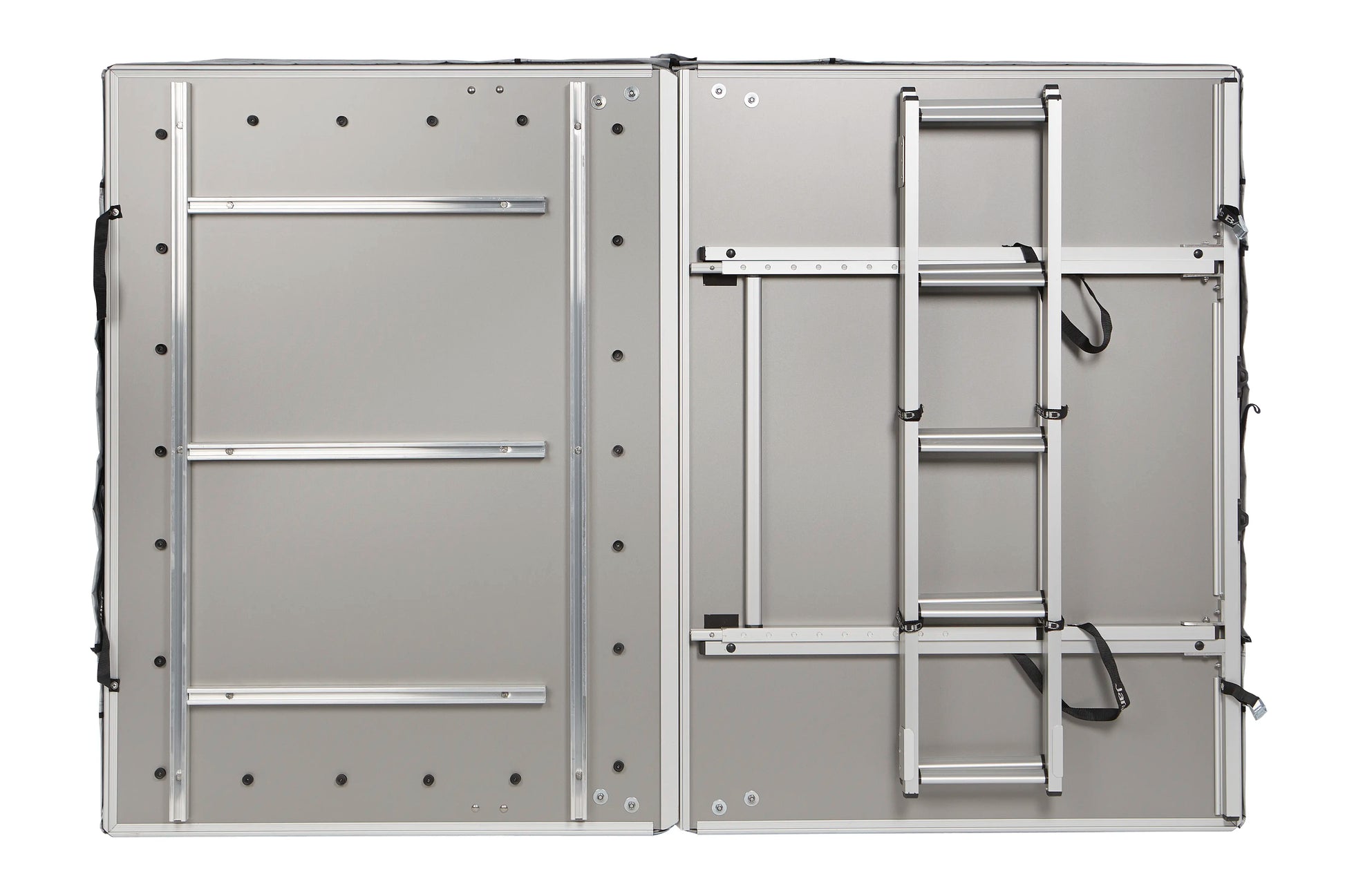

The aluminum composite floor with insulating polymers ensures rigidity and thermal comfort. Designed with a “clamshell” system, it opens into two panels, one of which extends outward using the included support poles.

Two rail sets (65 cm or 80 cm) allow flexible mounting: left, right, or rear. Installation on roof bars or racks is simple, secure, and optimized to reduce fuel consumption.

High-Strength Telescopic Poles

Reinforced aluminum poles ensure stability and leveling even on uneven terrain. Their scaffold-style structure allows each leg to be adjusted independently for a perfect setup.

High-Density Comfort Mattress

The 65 mm mattress with 28 kg/m³ density foam ensures comfort during long nights of travel. Its washable cover makes maintenance easy. For humid or cold climates, an anti-condensation mat is available to improve airflow and keep the interior dry.

Included Ladder

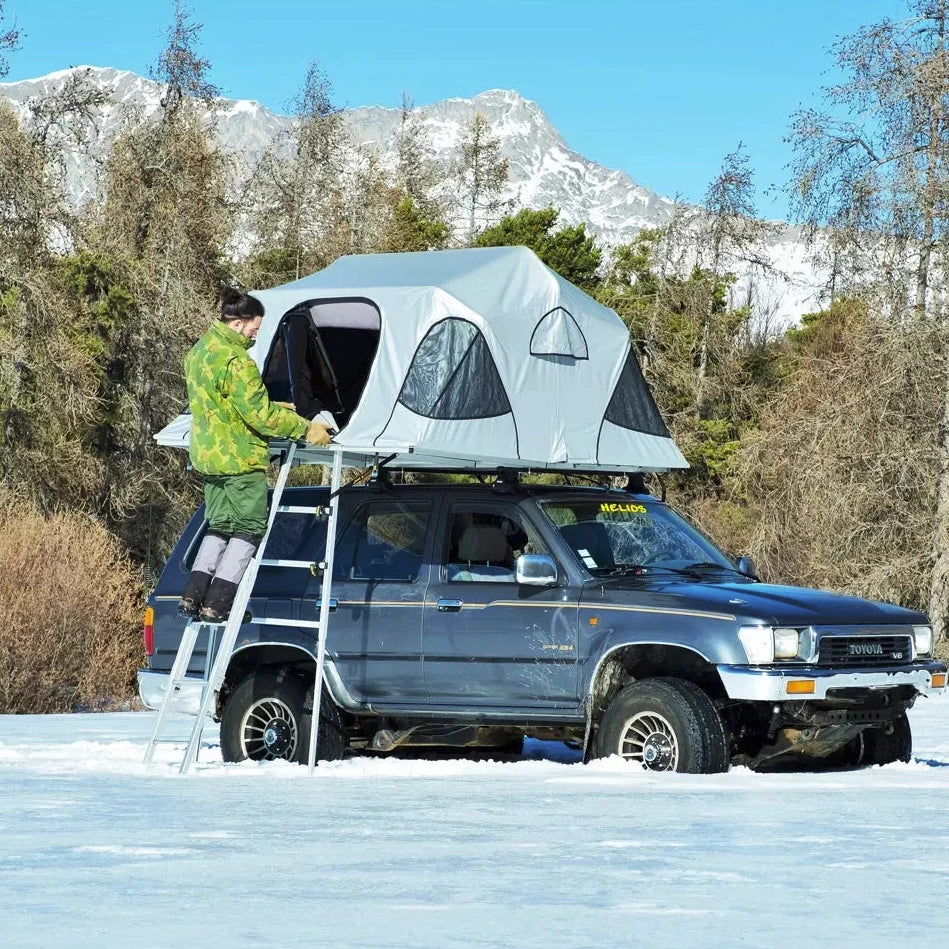

The 2.4 m ladder supports up to 200 kg and features anti-slip steps. Its rubber feet grip various surfaces, and its controlled flexibility protects the tent from excessive loads. A PVC bag protects the ladder during transport. An XL version (3 m) is available as an option.

James Baroud Portable Light (Optional)

This rechargeable USB lamp offers multiple modes (white, red anti-insect, night vision) and attaches via built-in magnets. Its 360° rotation allows precise lighting of your campsite.

Mounting Clamps

The clamps adjust from 30 to 85 mm and are resistant to both freezing and corrosion. Tightened to 14 Nm, they ensure a secure hold even off-road. Six clamps are included as standard.

Compatibility

The Vision 180 is compatible with most roof bars and racks. It can open to the left, right, or rear and integrates perfectly with James Baroud awnings, annexes, and 4-season kits.

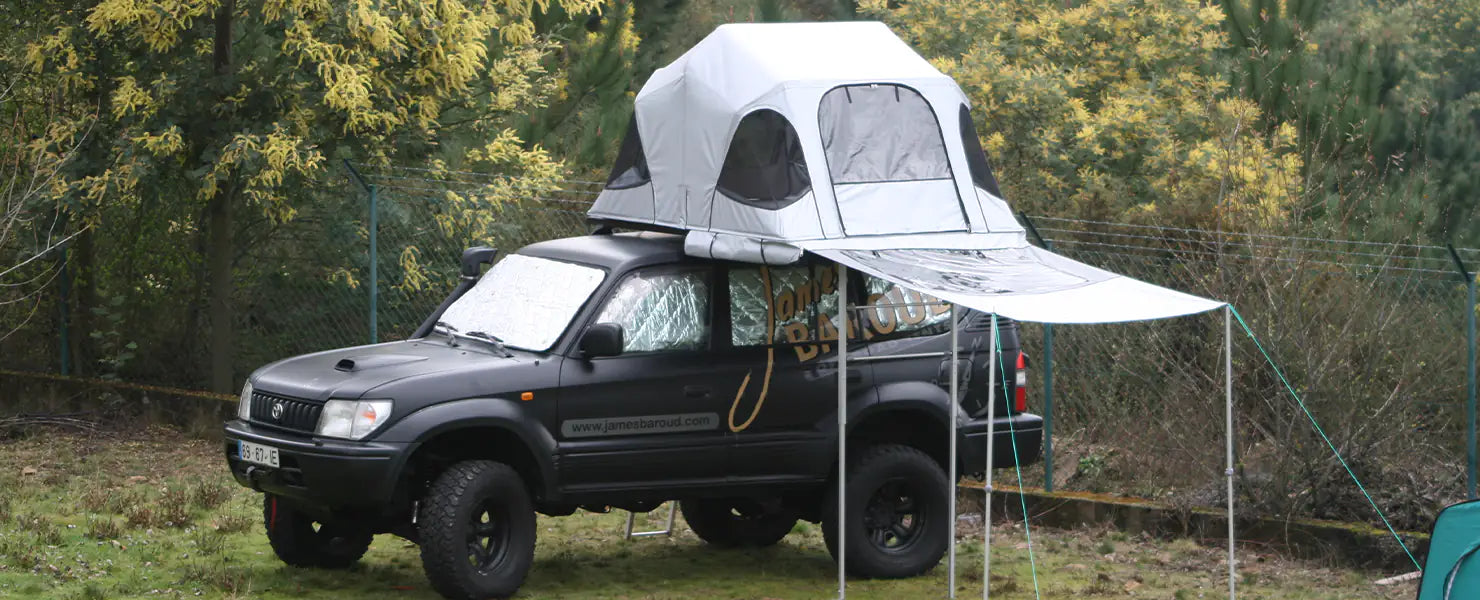

It can also be paired with a portable diesel heater, a solar system, or an auxiliary battery for full off-grid autonomy. This makes it easy to integrate into campervans, 4x4s, or professional overland setups.

Use Cases and Real Scenarios

For weekend trips, its quick setup and generous ventilation ensure cool, comfortable nights. On multi-week trips, its spacious interior makes it easy to store full family gear.

For months off-grid, its weather resistance and modular insulation allow comfortable camping even during Canadian winters. It suits both occasional adventurers and long-term travelers.

Practical Tips for Campers

On soft ground, use wider bases for the support poles. Check leveling for a stable setup. On road trips, regularly inspect the clamps and bring a portable light to improve nighttime comfort.

For extended stays, test your setup before departure. Add anti-condensation protection and plan your power needs (solar or auxiliary battery). Also, adjust ventilation based on weather conditions to optimize comfort.
