Modular Roof Rack for the Jeep Gladiator - by TrailRax

Modular Roof Rack for the Jeep Gladiator - by TrailRax

SKU:TR-JG-MRR-FL

Regular price $2,240.00 CAD
Regular price Sale price $2,240.00 CAD
Sale Sold out
Shipping calculated at checkout.
Style
bread

We added a bend into our 5052 Aluminum side panels to drastically increase durability and strength. This helps us achieve the highest rated rack for its low profile. This bend also offers full 360 degree mounting area on the rack, you are now not limited to where your TSLOTS are mounted.

We engineer the angle of the deflector to match the angles of your Gladiator for minimal wind noise and a perfect look, almost like it should have come from factory with the TrailRax Modular Roof Rack.

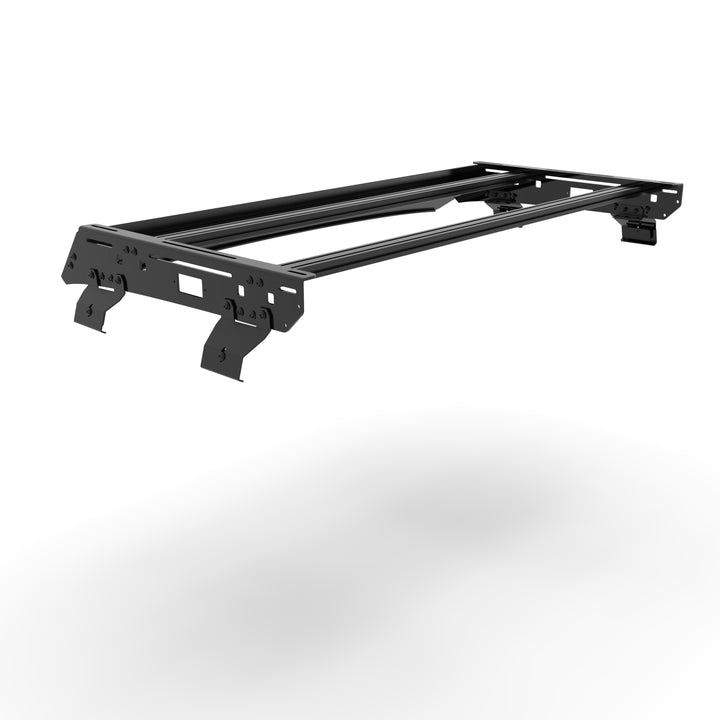

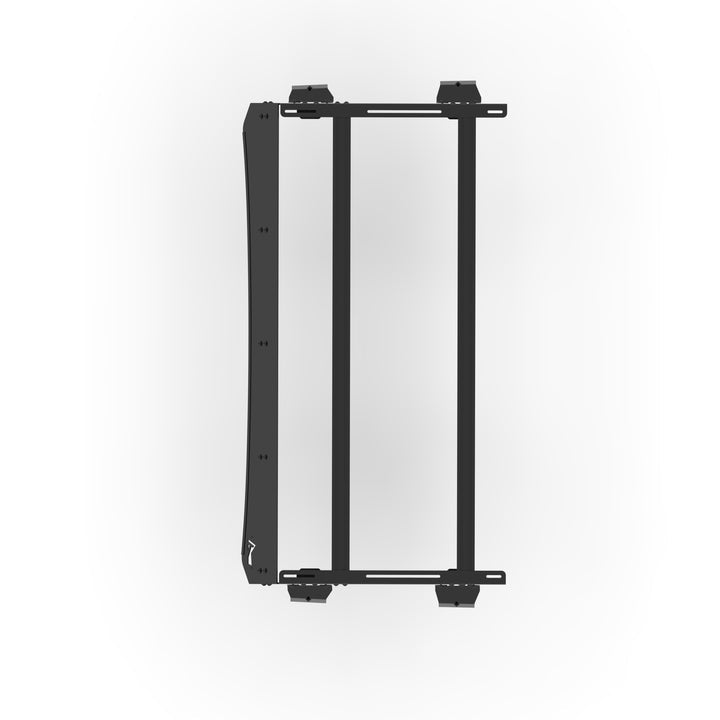

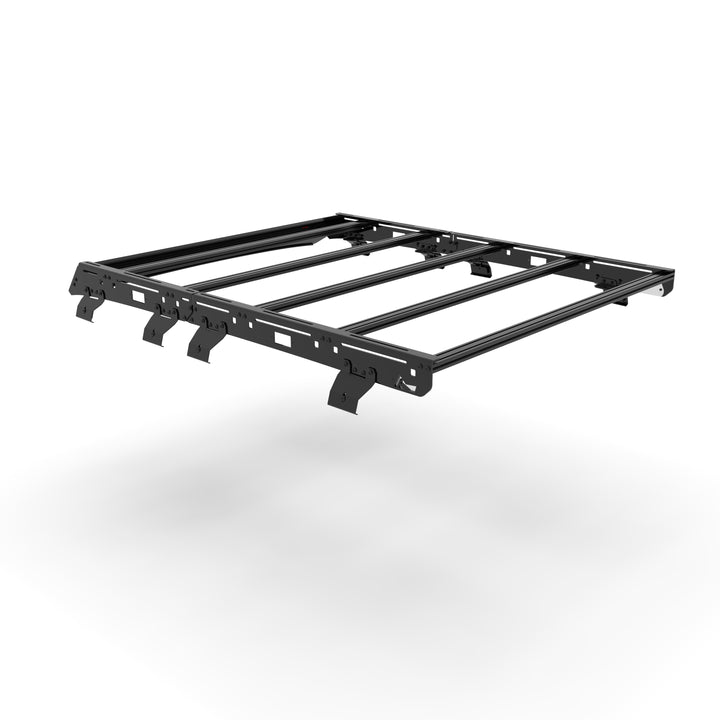

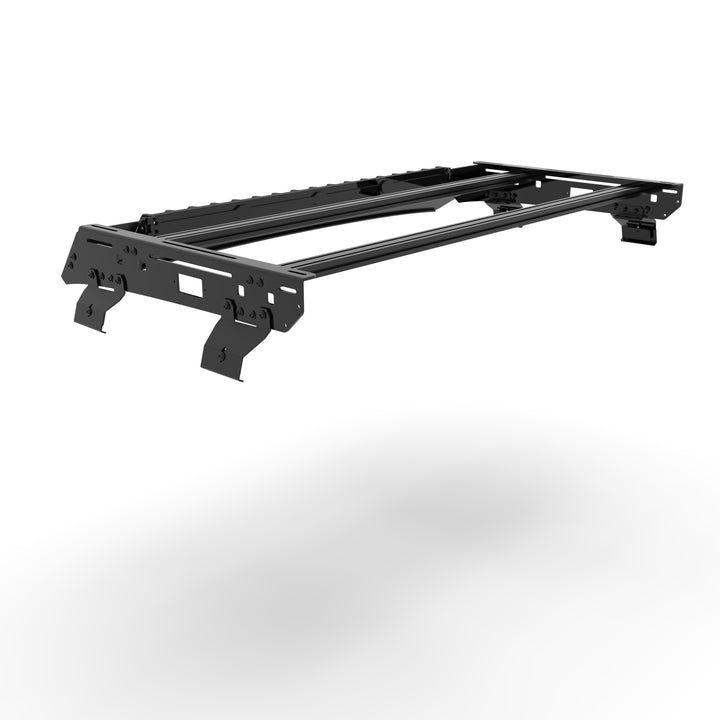

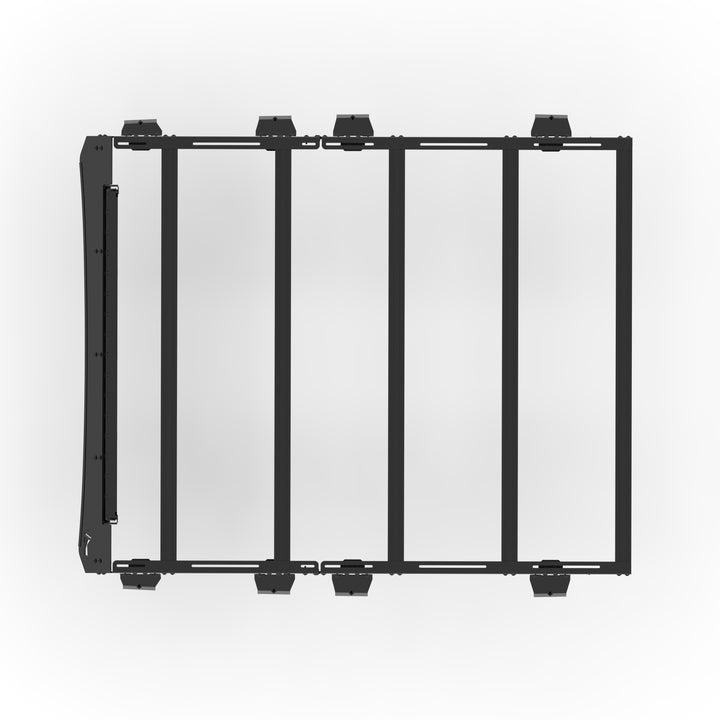

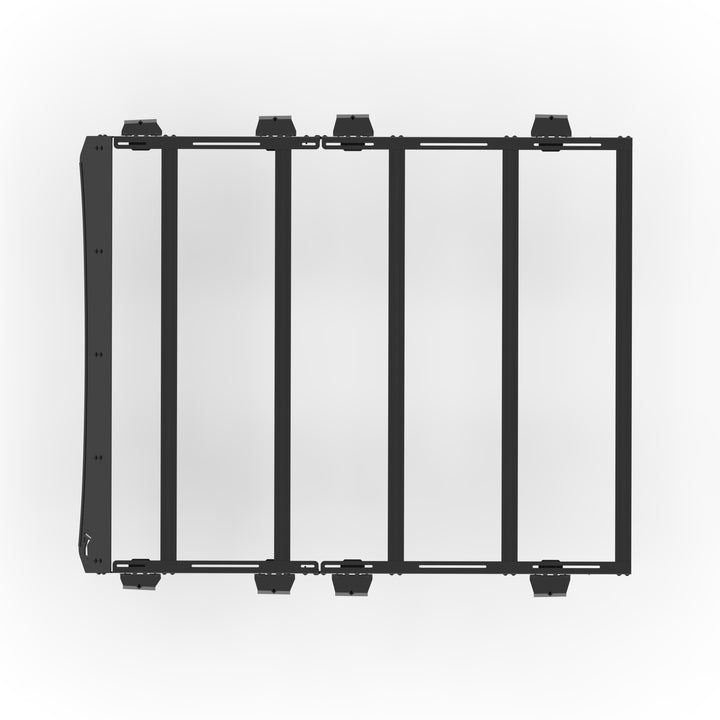

Our Rack is designed in 2 pieces; a front and rear half. Both the front and rear halves utilize an outer clamp system with an interior bracket to distribute load. This design allows for removal of either half while the other still remains functional. Run the back half when you want to remove your freedom panels, the front half for a camper setup or keep it all together for maximum storage capacity. However you choose to use it, this rack was designed for you.

The most rugged roof rack available for your Jeep Gladiator! This Aluminum roof rack offers an assortment of ways to mount gear and tools for your next adventure. We use 5051 3/16" aluminum for the main panels that give extreme rigidness and durability for all the gear you plan to equip your Jeep Gladiator with. We also have a large number of accessories available with this roof rack that will allow endless combinations and possibilities for the end-user.

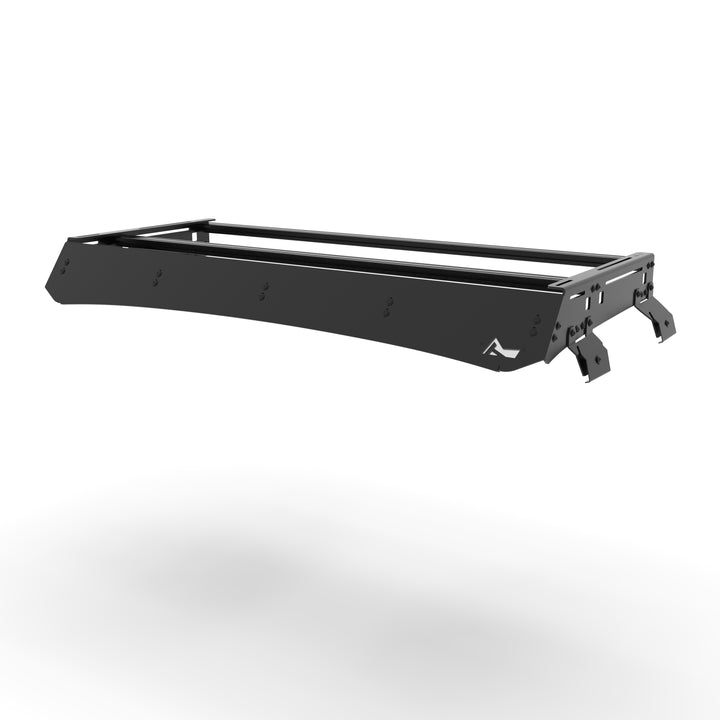

This Modular Roof Rack is offered in front half only or the full rack!

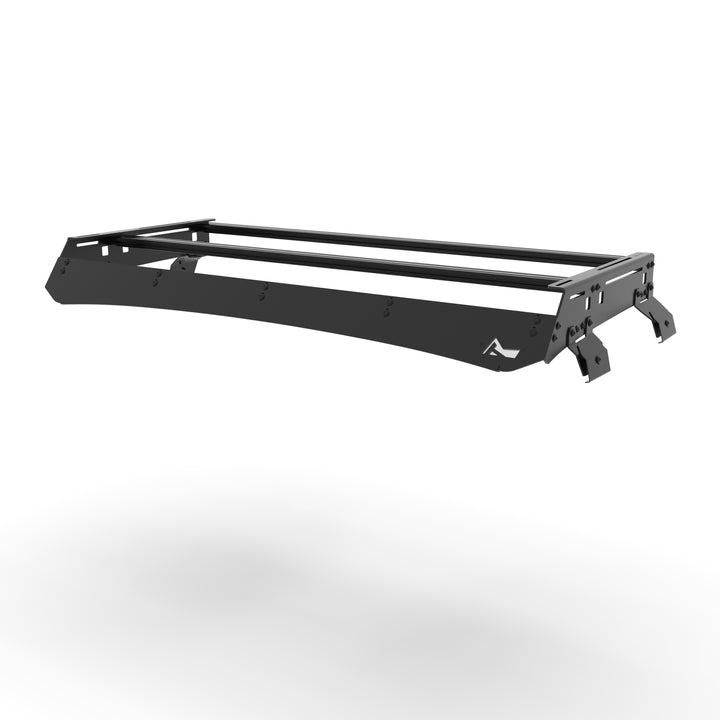

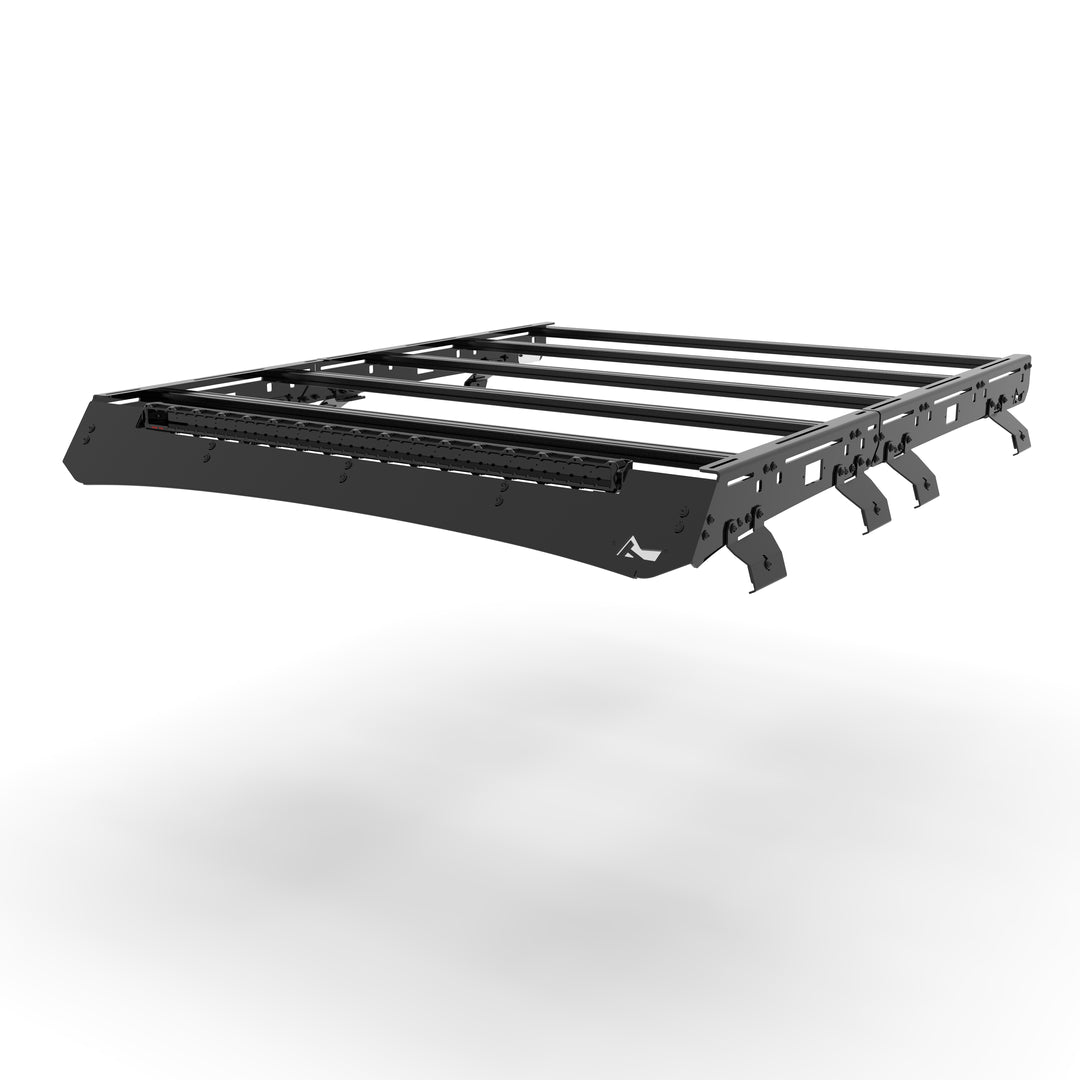

We added a wind deflector to the roof rack to eliminate wind-noise all together. Our deflector angle is designed to match the windshield angle so you keep your aero dynamics as well as have a rack that looks like it should have come from factory. We also worked with our friends at Heretic Studio to work on a cut-out to flush fit an offroad light onto the wind deflector. This combination of our roof rack and Heretic's 50" light will allow the light to sit below the top face of the aluminum TSLOT so that the rack is completely level for those larger items on the rack.

Our Aluminum extrusions/TSLOTS that come with the rack are anodized black and cut to length with absolute precision. The extrusions are made locally here in Utah and have a high-stress rating as well as deflection rating giving the user the best load capacity possible.

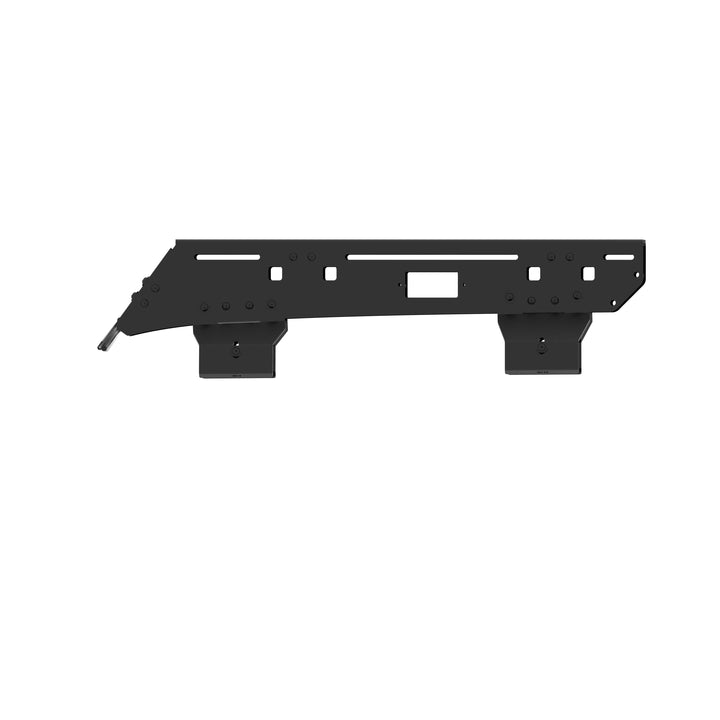

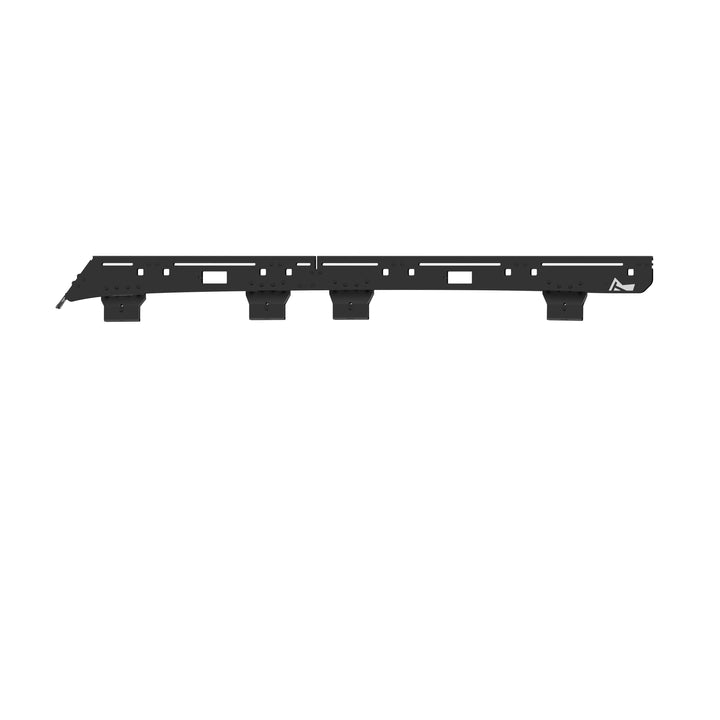

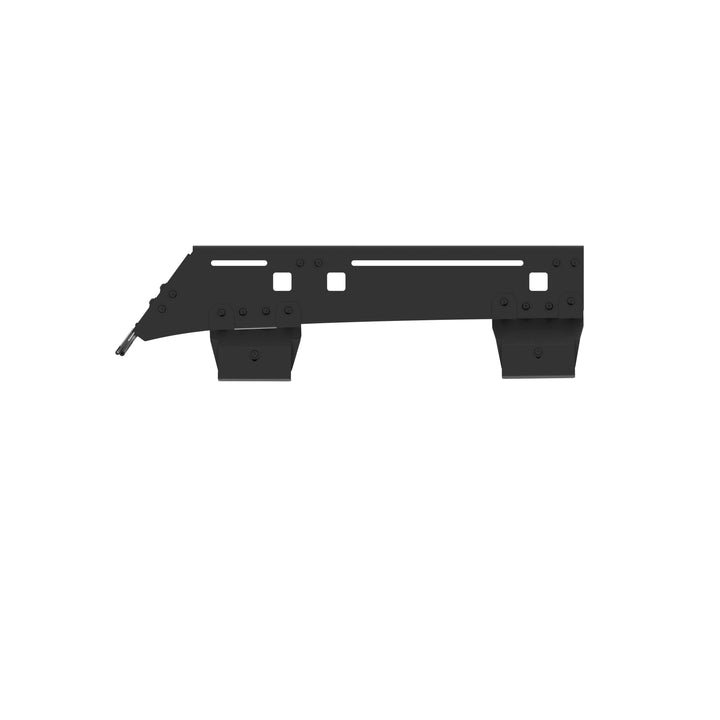

Our one-piece side panels for the roof rack offer extreme durability and capacity to the rack itself. It also offers a 90-degree bent channel that gives the end-user a full 360 degree area to mount even more accessories. These panels also come precut with slots to add more extrusions and tools to the side panels, offering more modularity and customization.

The mounting system uses CNC cut and bent Aluminum feet that distribute the load of the rack directly to the roof of the vehicle. It is mounted into reinforced parts of the cab that are perfect for load bearing roof racks. We designed this Modular Roof Rack to do everything that the Gladiator Rubicons were designed to do.

Our TrailRax Modular Roof Rack line is a great option for the all-out overlanders or desert racers as well as the entry-level overlanders or off-roaders. This rack gives the end-user the ability to upgrade or add to their roof rack as they need.



    Specs:

    • Fits Jeep Gladiator 2020+ with hard top
    • Overall height added to your Gladiator - 4.3" from the outside edge to the top of the rack or 3.6" from the center of the hardtop to the top of the rack
    • Static load rating of the rack: 400 lbs evenly distributed across the rack
    • Dynamic load rating of the rack: 200 lbs evenly distributed across the rack

    Ordered on Demand
