Infrared (IR) Follow-Me Light - by Diode Dynamics
Infrared (IR) Follow-Me Light - by Diode Dynamics
SKU:DD8565P
Couldn't load pickup availability
Features
- High and low IR modes with adjustable output for the viewing conditions

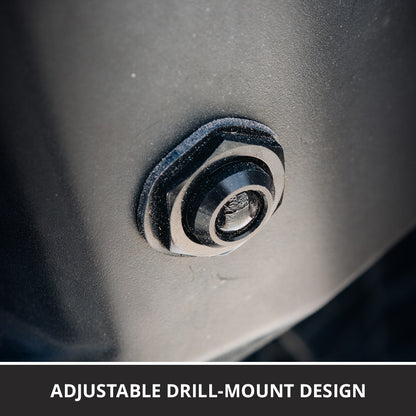

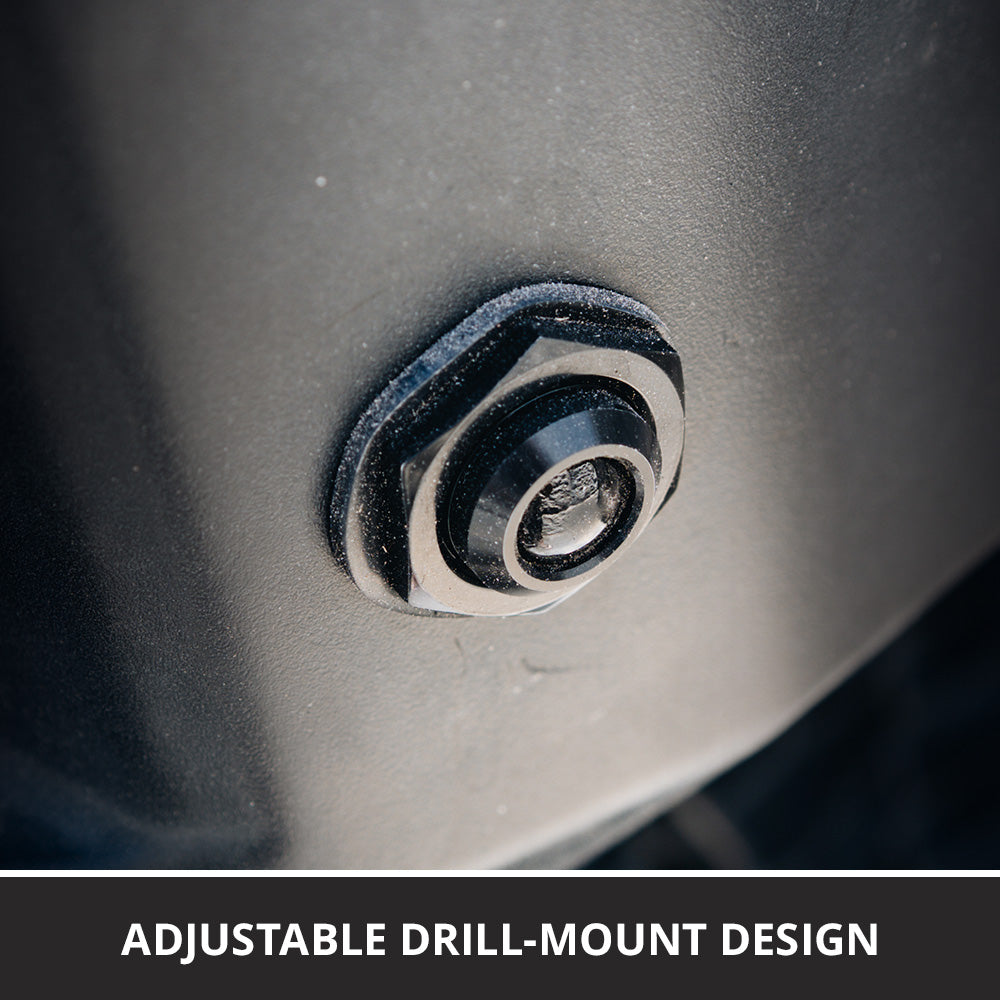

- Drill-mount design with a removable inner jam nut for thicker mounting surfaces
- IP67 intrusion protection and a Deutsch DT 3-Pin connector
- Made in USA with Global Materials
By variant
| SKU / Variant | Variant-specific |
|---|---|
| DD8565P 940nm / Pair |
|
| DD8565S 940nm / Single |
|
| DD8917P 850nm / Pair |
|
| DD8917S 850nm / Single |
|
Overview

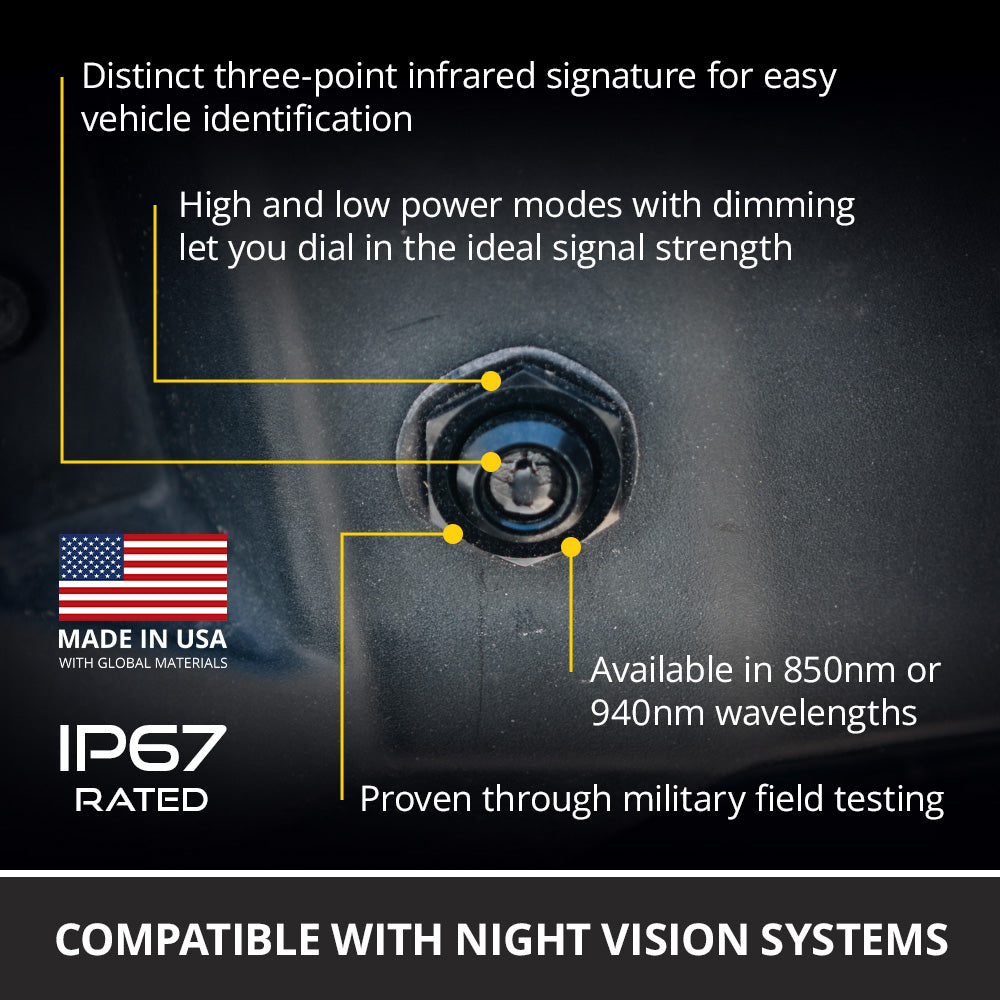

Keep a recognizable vehicle reference in view through compatible night vision equipment with the Diode Dynamics Infrared Follow-Me Light. Its three-point IR pattern supports vehicle identification and convoy spacing, in a compact drill-mount design.

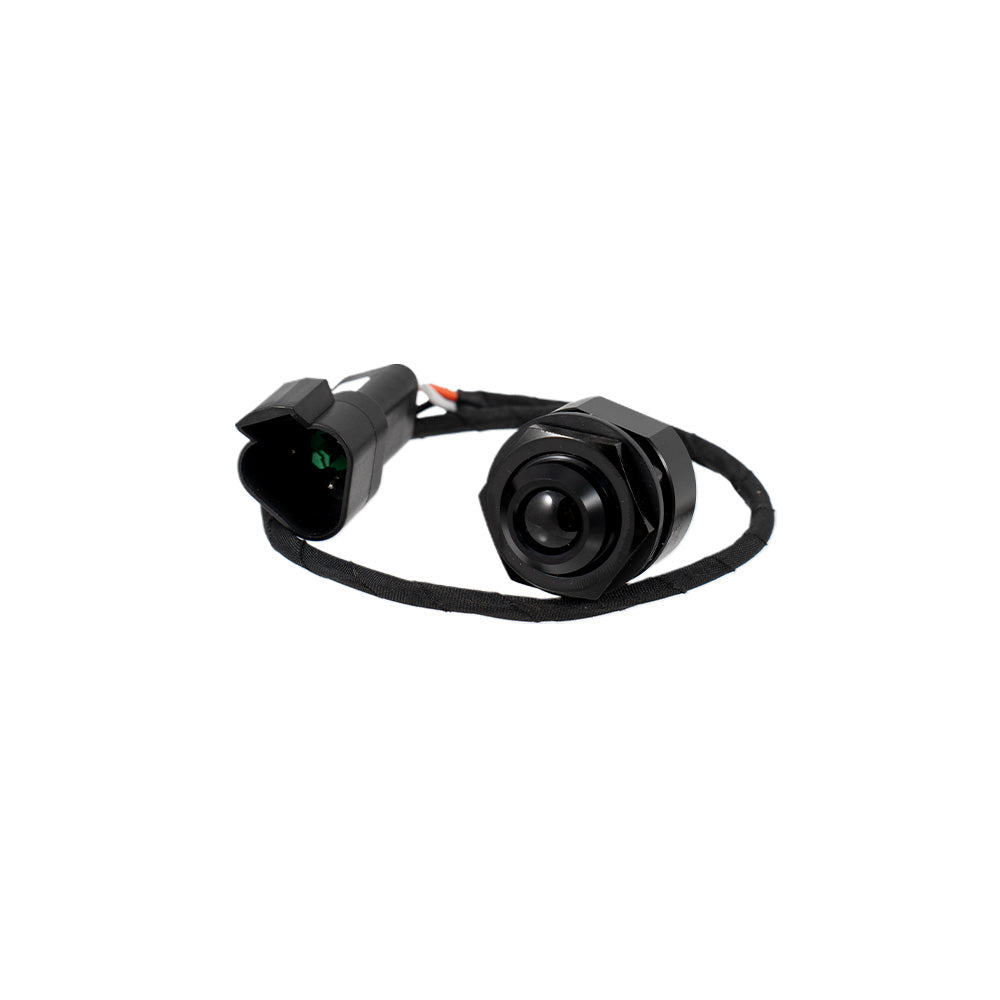

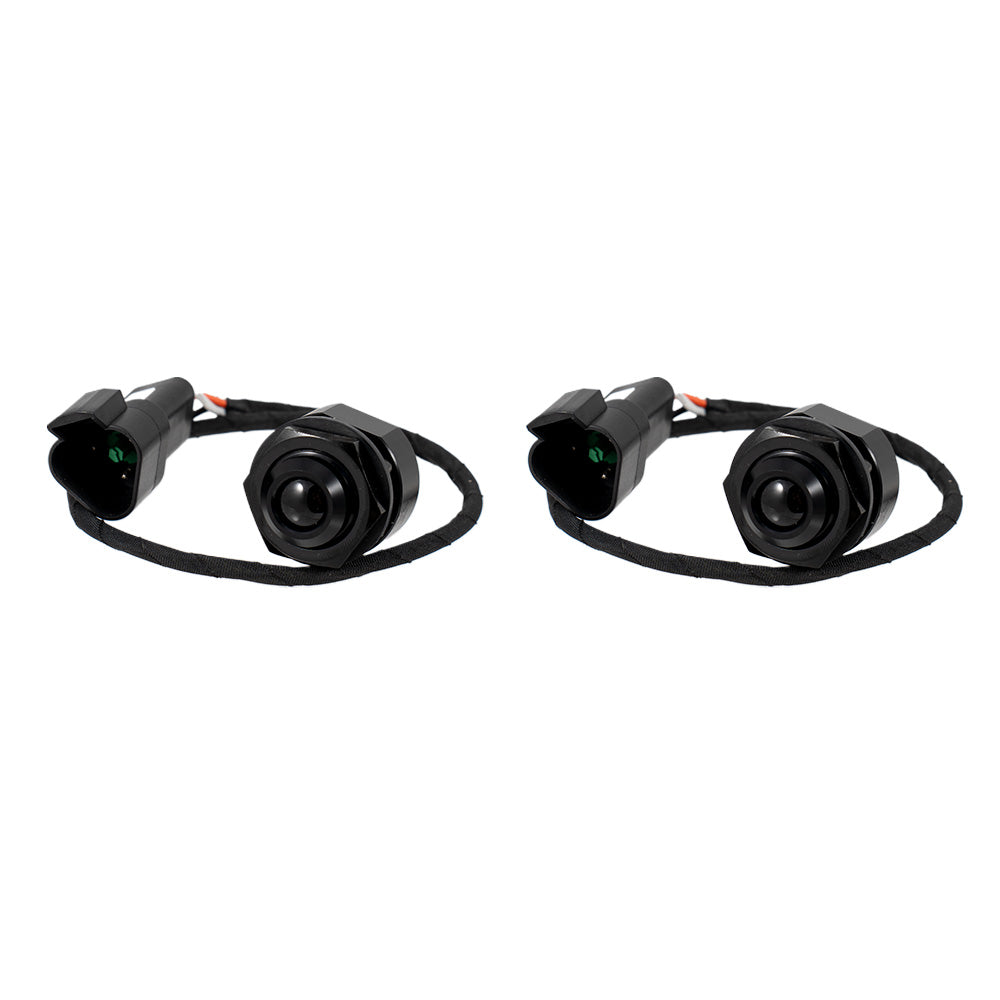

Built for Your Setup. The light operates on 9-16V systems and uses a Deutsch DT 3-Pin connection. Two lights supplied in this package.
Night Vision Compatibility. Match the wavelength to your equipment. 850nm may show a more noticeable red glow; 940nm offers a lower visible signature.
Proven Reliability. Developed through military field testing. Made in USA with Global Materials.
Infrared Safety. Infrared output may not be visible to the naked eye. Do not look directly into an operating infrared light.
Experience. For more than 20 years, Diode Dynamics has developed purpose-built automotive lighting, engineered, tested, and assembled by our team in the United States.
Specifications
| DD8565P 940nm / Pair |
DD8565S 940nm / Single |
DD8917P 850nm / Pair |
DD8917S 850nm / Single |
|
|---|---|---|---|---|
| Wattage | High: 0.6, Low: 0.2 | High: 0.6, Low: 0.2 | High: 0.2, Low: 0.1 | High: 0.2, Low: 0.1 |
| Warranty | Lifetime | Lifetime | Lifetime | Lifetime |
| Country of Origin | US | US | US | US |
| Prop 65 | Y | Y | Y | Y |
| UPC | 195995150455 | 195995150479 | 195995150523 | 195995150530 |
Installation
