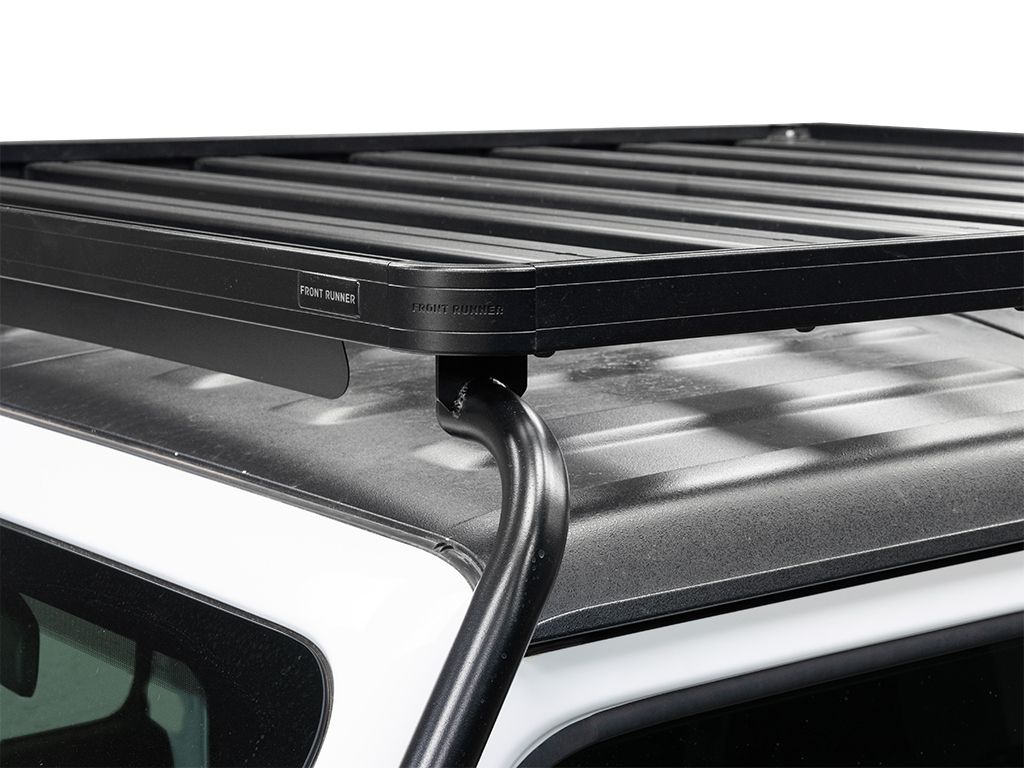

Extreme Slimline II Roof Rack for Jeep Gladiator JT (2019 to Current) - by Front Runner

ORDERED ON DEMAND

This Slimline II rack kit contains all the components needed to mount the Slimline II cargo carrying rack to a Jeep Gladiator JT including the Slimline II Tray (1425mm x 1560mm), the Jeep Extreme Mounting System and a Wind Deflector.

This rugged, sophisticated, high performance, nearly indestructible rack system allows you to quickly remove the Freedom Panels and works with the hardtop roof on or with no roof at all.

The Jeep Extreme mounting system bolts to the roll bar with middle and rear brackets. This unobtrusive, high performance, nearly indestructible mounting solution allows you to quickly remove the Freedom Panels and works with the hardtop or with no roof at all. Freedom Panels can be quickly and easily removed with rack in place. The cargo weight is evenly distributed across the roll bars and body of the jeep, placing zero weight on the hardtop itself.

Note: This kit is not suitable for the Mojave Edition and Diesel models of the Jeep Gladiator. Snorkels are not compatible with the Front Bar Roof Rack Mount in this kit.

Consisting of:

1 x FAJL004 - Jeep Wrangler JL (2018-Current) Front Bar Roof Rack Mount - by Front Runner
1 x FAJT001 - Jeep Gladiator JT (2019-Current) Foot Rails - by Front Runner
1 x FAJT002 - Jeep Gladiator (2019-Current) Inner Brackets - by Front Runner
1 x RRSTJ08 - Slimline II Tray - 1425mm(W) X 1560mm(L) - by Front Runner
1 x WDST006 - Wind Deflector 45mm Lip Wide Pair / 1345mm(W) - by Front Runner

Material used:

Black epoxy powder-coated T6 aluminium, High strength steel

Approximate Installed Weight 35kg (78lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Specifications

KRJG014T - Jeep Gladiator JT (2019-Current) Extreme Slimline II Roof Rack Kit

Consisting of: 1x FAJL009 - Jeep Wrangler JL (18-Curr)Front Bar RRack Mount1x FAJT001 - Jeep Gladiatorr JT (2019-Curr) Foot Rails1x FAJT002 - Jeep Gladiator (2019-Curr) Inner Brackets1x RRSTJ08 - SLII Tray - 1425mm(W)X1560mm(L)

Material Used: Black epoxy powder - coated T6 aluminiumHigh strength steel

Approximate Installed Weight: 32.22kg (71.03lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2'') to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions: Width: 445mm (18'')Length: 1720mm (68'')Height: 315mm (12'')

Shipping Weight: Weight: 41kg (90lbs)

Kit Contents

• 1× FAJL009 —
• 1× FAJT001 —
• 1× FAJT002 —
• 1× RRSTJ08 —

Fitting Instructions

• FAJL009 — Fitting instructions (PDF)
• FAJT001 — Fitting instructions (PDF)
