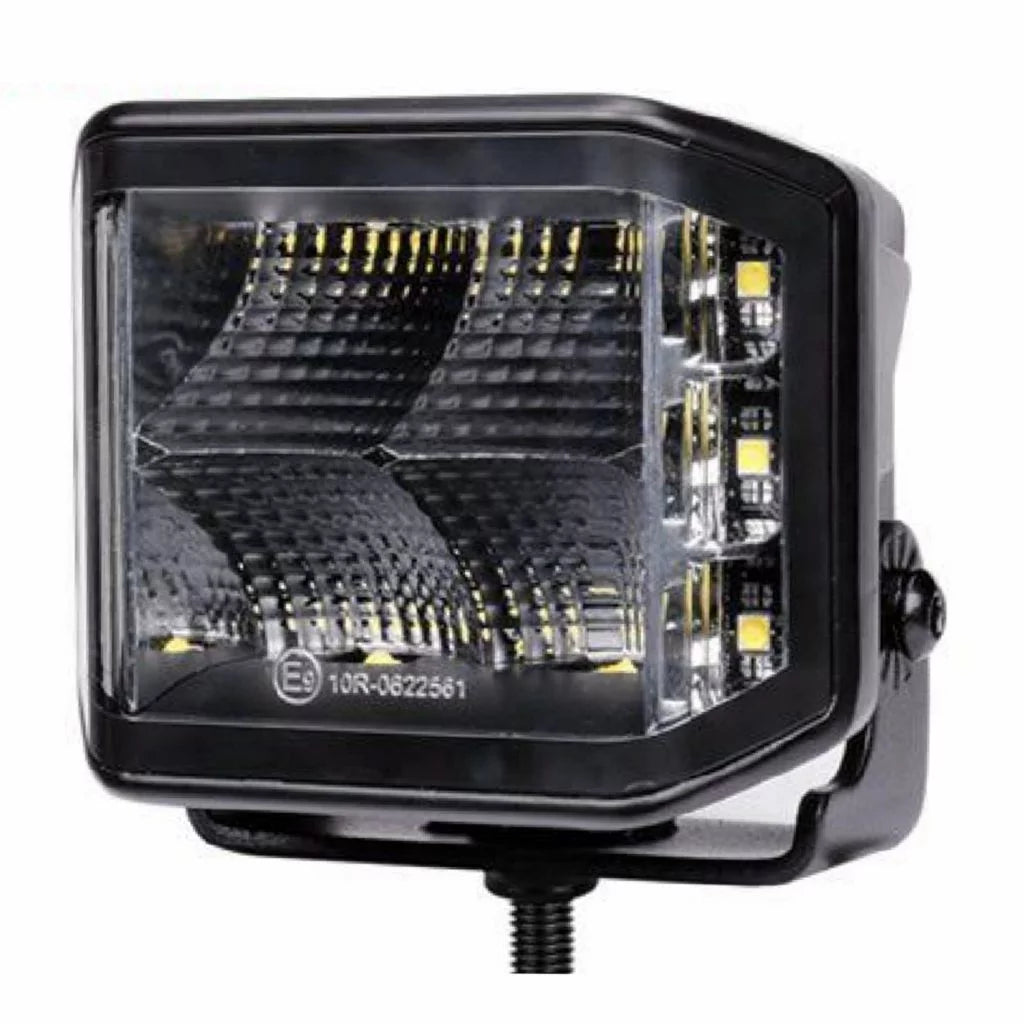

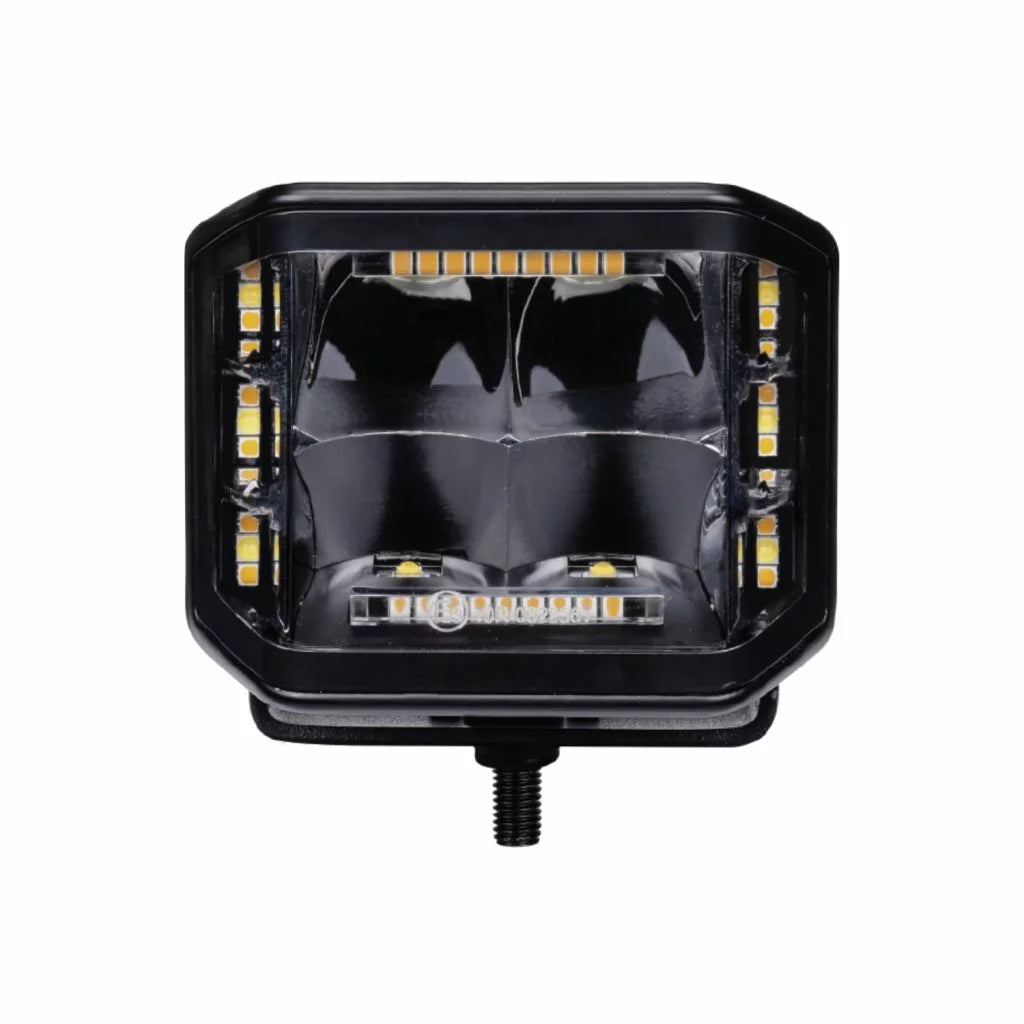

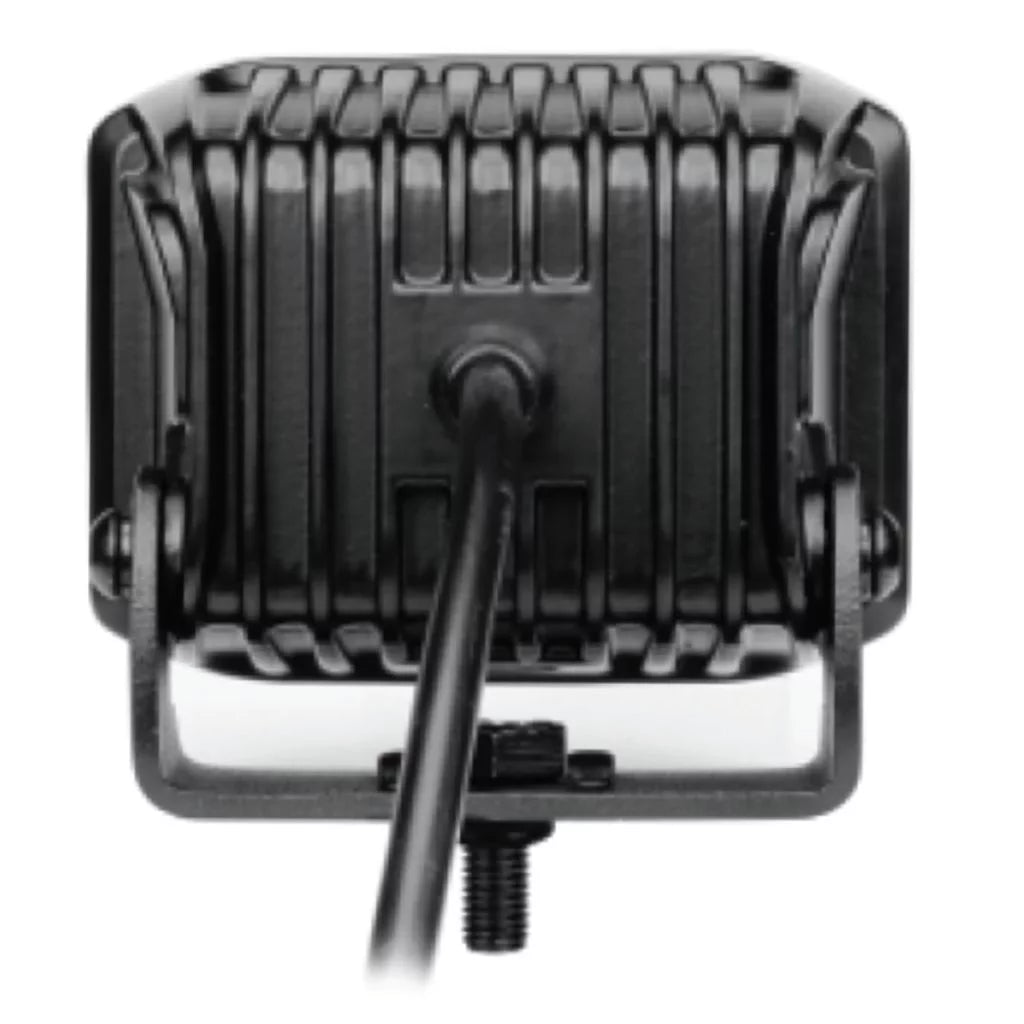

4" Side Shooter with Amber Warning Flasher - by Strands

4" Side Shooter with Amber Warning Flasher - by Strands

SKU:794701

Regular price $229.00 CAD
Regular price Sale price $229.00 CAD
Sale Sold out
Shipping calculated at checkout.

ORDERED ON DEMAND  - Sold Individually

Features:

  • World’s First SAE Certified/DOT Compliant Side Shooter with Flasher
  • Ideal for Nationwide Fleet Use
  • Spot Beam w/Side Shooter
  • Amber Double Flash Strobe
  • Bezeless Lens Design
  • 3 Year Limited Warranty

Specifications:

Voltage:  DC 10-30V
Wattage:
70W (theoretical) –  Main Beam 16.5W (actual)/Warning 20.5W (actual)
Amperage 12V/24V:
Main Beam 1.38/0.69 Warning 1.71/0.85
Theoretical Lumens:  2210lm
Actual Lumens:  1177lm
Double Flash Amber
Warning Lights: Double Flash Amber
LUX:  1 LUX @ 327m
IP Rating:  IP67/69K

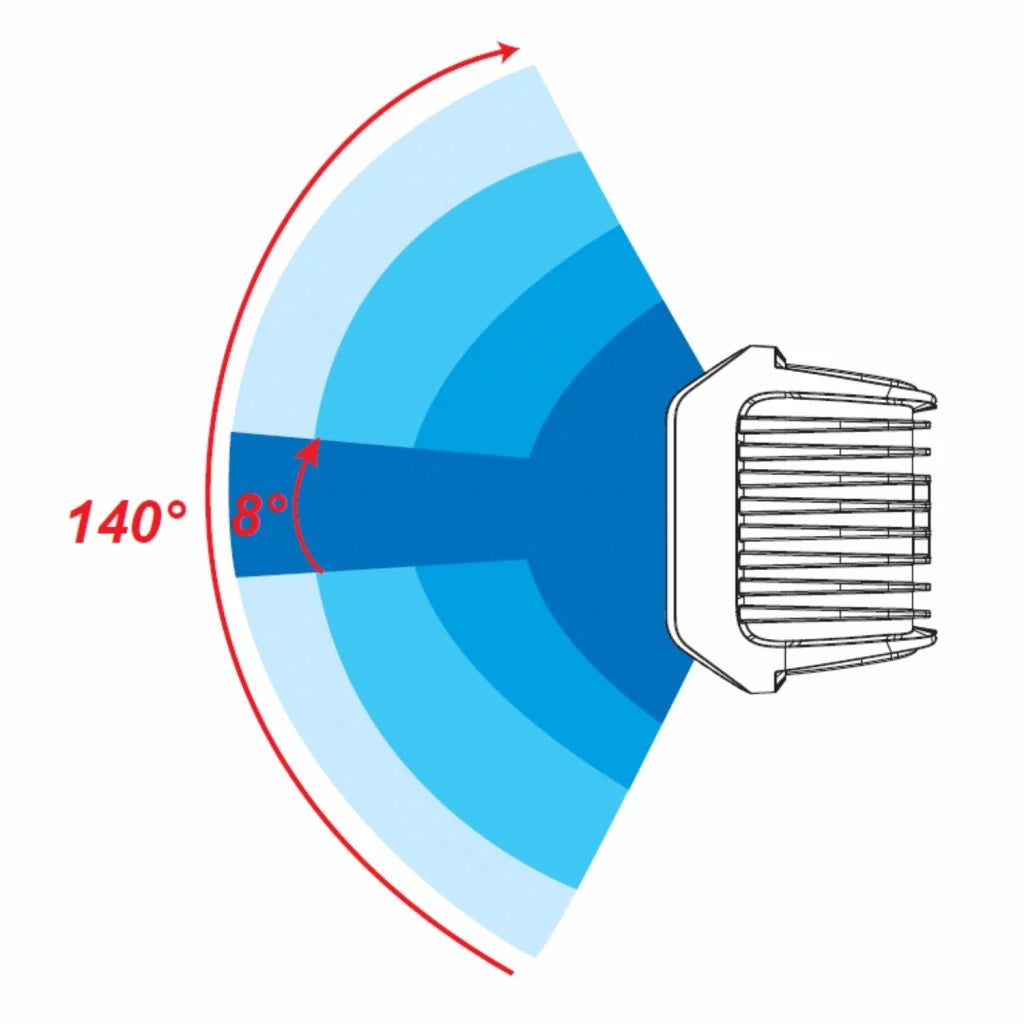

Beam Pattern:  140° White Spot Light with Side Shooter
Safety Light:  Amber Double Flash
Connection:  DT-3 with Whip
Reverse Polarity Protection:   Yes
Over/Under Volt. Protection:   Yes
Harness:  DT-3 Whip
Colour Temperature:  5700K (Main Beam)
Housing Material:  Aluminum Alloy
Lens Material:  Polycarbonate
Mounting Bracket: Powder Coated Steel Bracket and 304 Stainless Steel Hardware
Operating Temperature:  -25°C – + 40°C

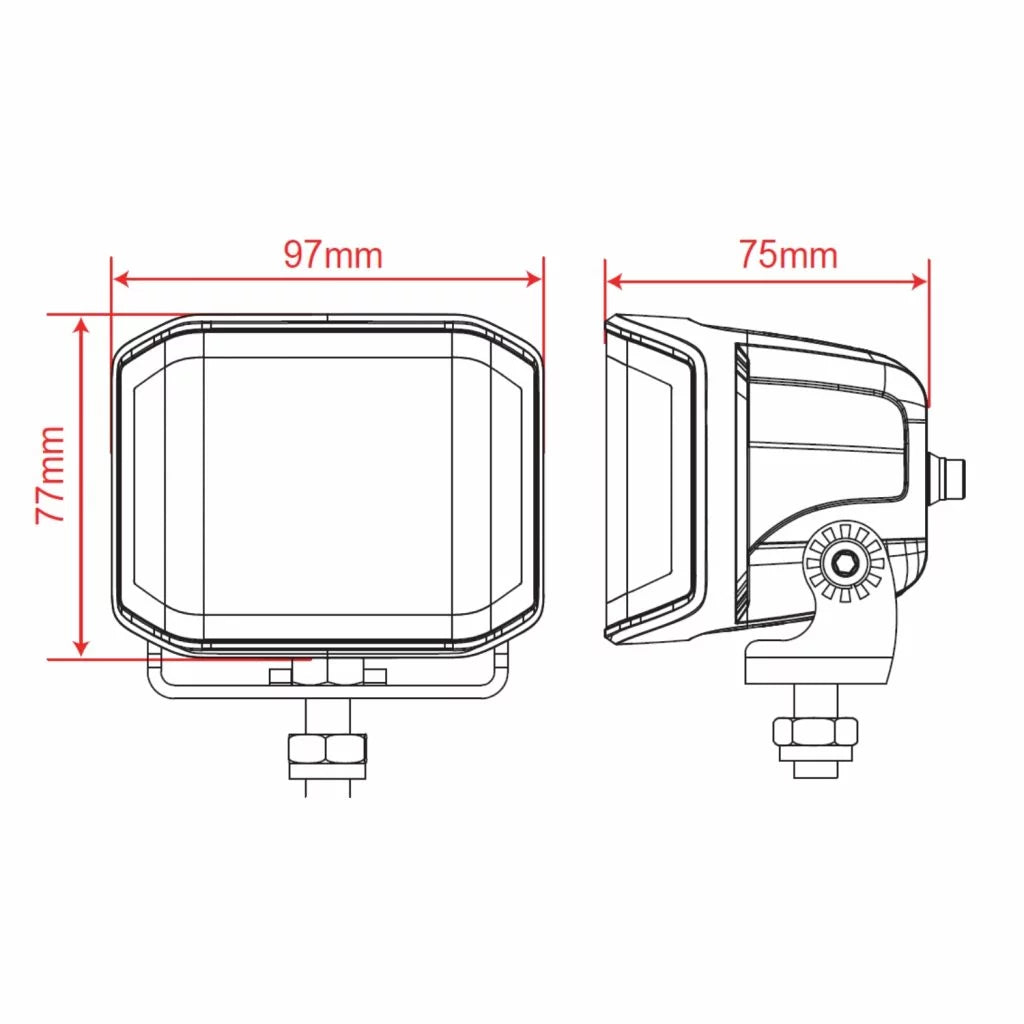

Dimensions:  97 x 75 x 77 mm (3.8 x 2.9 x 3″)
Certification: SAEJ591/SAEJ595/RoHS/ECE10R(EMC)
Warranty: 3 Year Limited

Sold Individually - Ordered on Demand
