3/4 Slimline II Roof Rack for Jeep JLU (2018 to Current) - by Front Runner

ORDERED ON DEMAND

Conquer any adventure with this Jeep JLU Slimline II 3/4 Roof Rack Kit, instantly unlocking cargo-carrying potential for all your gear! Built tough and mounting directly to your jeeps roll bar to carry heavy loads like roof top tents while still enjoying the ability to remove the Freedom Panels.

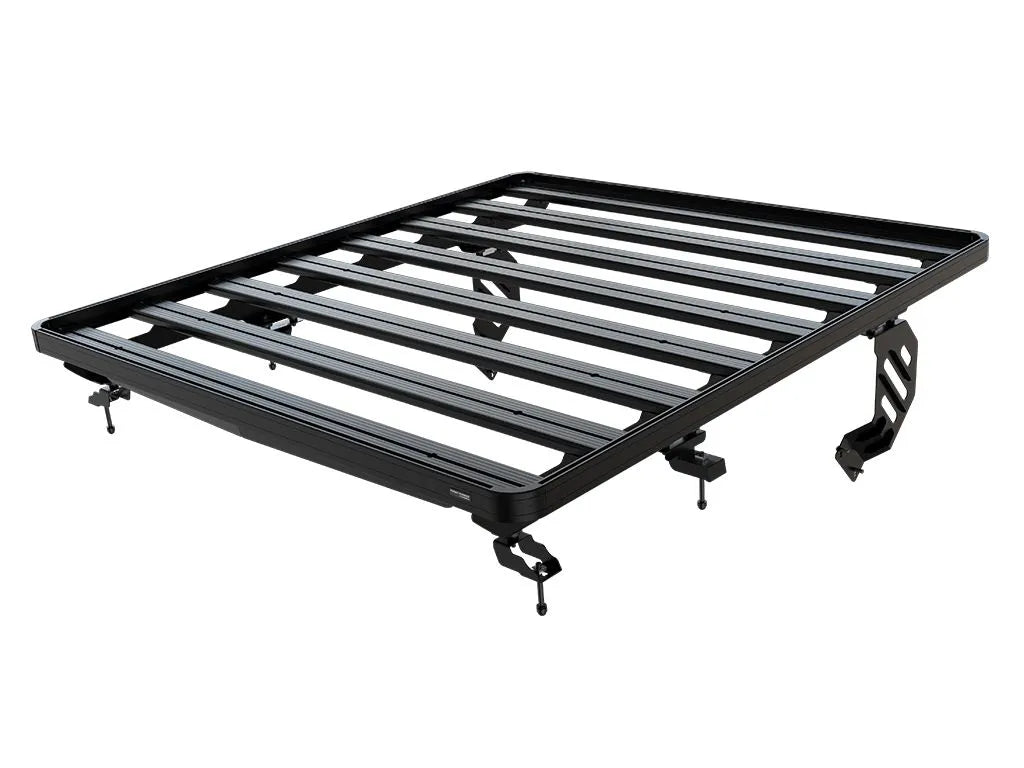

This Slimline II 3/4 rack kit contains all the components needed to mount install the Slimline II cargo carrying rack to a Jeep Wrangler JLU including the Slimline II tray (1425mm x 1560mm), the Jeep JLU Extreme Mounting System and a Wind Deflector. Drilling is required for installation.

The JLU Extreme mounting system bolts to existing mounting points on the chassis and internal roll cage. This unobtrusive, high performance, nearly indestructible mounting solution allows you to quickly remove the Freedom Panels with the rack in place. The windscreen can also be lowered without any interference. The cargo weight is evenly distributed across the vehicle roll bars bypassing the roof, placing zero weight on the hard top itself.

KRJW041T - Jeep Wrangler JLU (2018-Current) 3/4 Slimline II Roof Rack Kit

Consisting of:
1x FAJL003 - Jeep Wrangler JL (2018-Curr) Inner Brackets
1x FAJL012 - Jeep JL 3/4 Length Foot Rail
1x RRSTJ08 - SLII Tray - 1425mm(W)X1560mm(L)

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 37.23kg (82.08lbs)

Specifications

KRJW041T - Jeep Wrangler JLU (2018-Current) 3/4 Slimline II Roof Rack Kit

Consisting of: 1

x FAJL003 - Jeep Wrangler JL (2018-Curr) Inner Brackets1

x FAJL012 - Jeep JL 3/4 Length Foot Rail1x RRSTJ08 - SLII Tray - 1425mm(W)X1560mm(L)

Material Used: Black epoxy powder - coated T6 aluminium

High strength steel

Approximate Installed

Weight: 37.23kg (82.08lbs) The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot or Grab-on Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2'') to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping

Dimensions: Width: 510mm (20'')Length: 1730mm (68'')Height: 245mm (10'')

Shipping

Weight:

Weight: 37.23kg (82lbs)

Kit Contents

• 1× FAJL003 —
• 1× FAJL012 —
• 1× RRSTJ08 —

Fitting Instructions

• FAJL012 — Fitting instructions (PDF)
