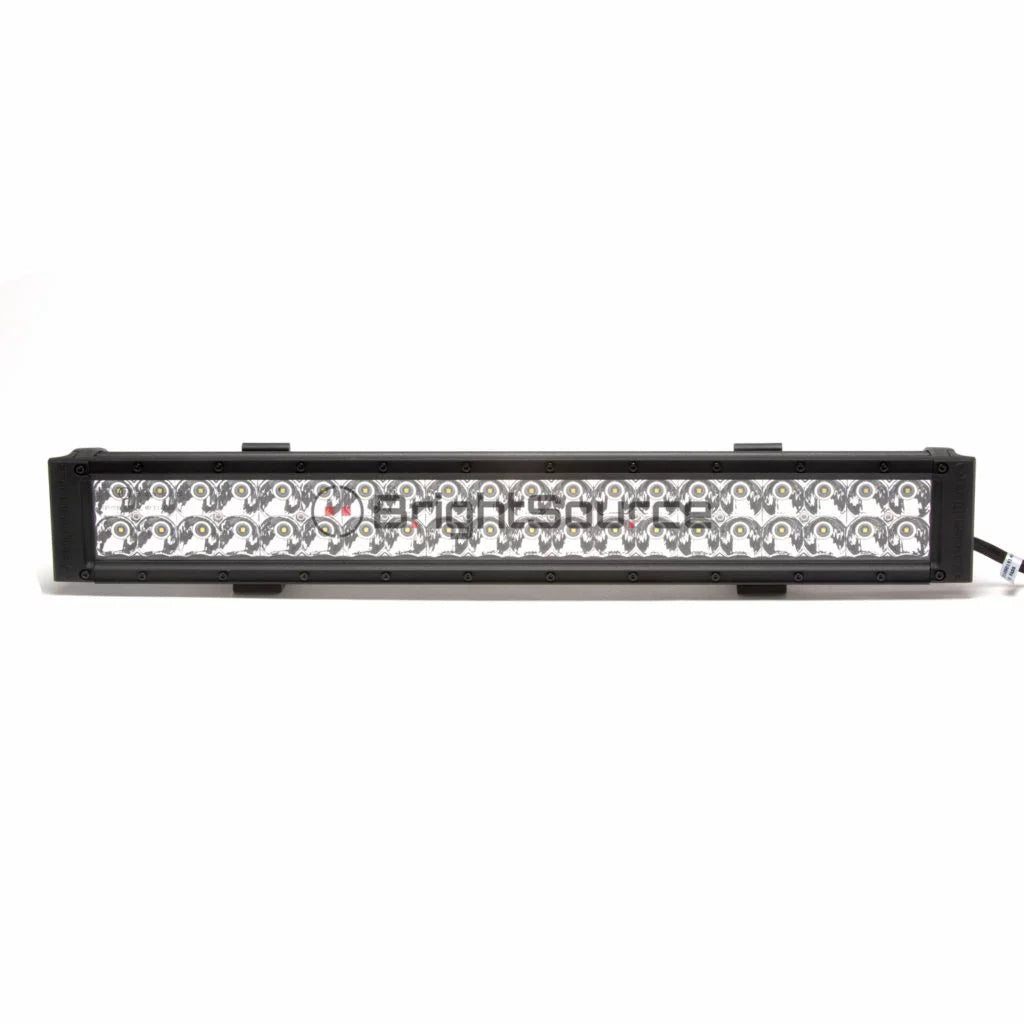

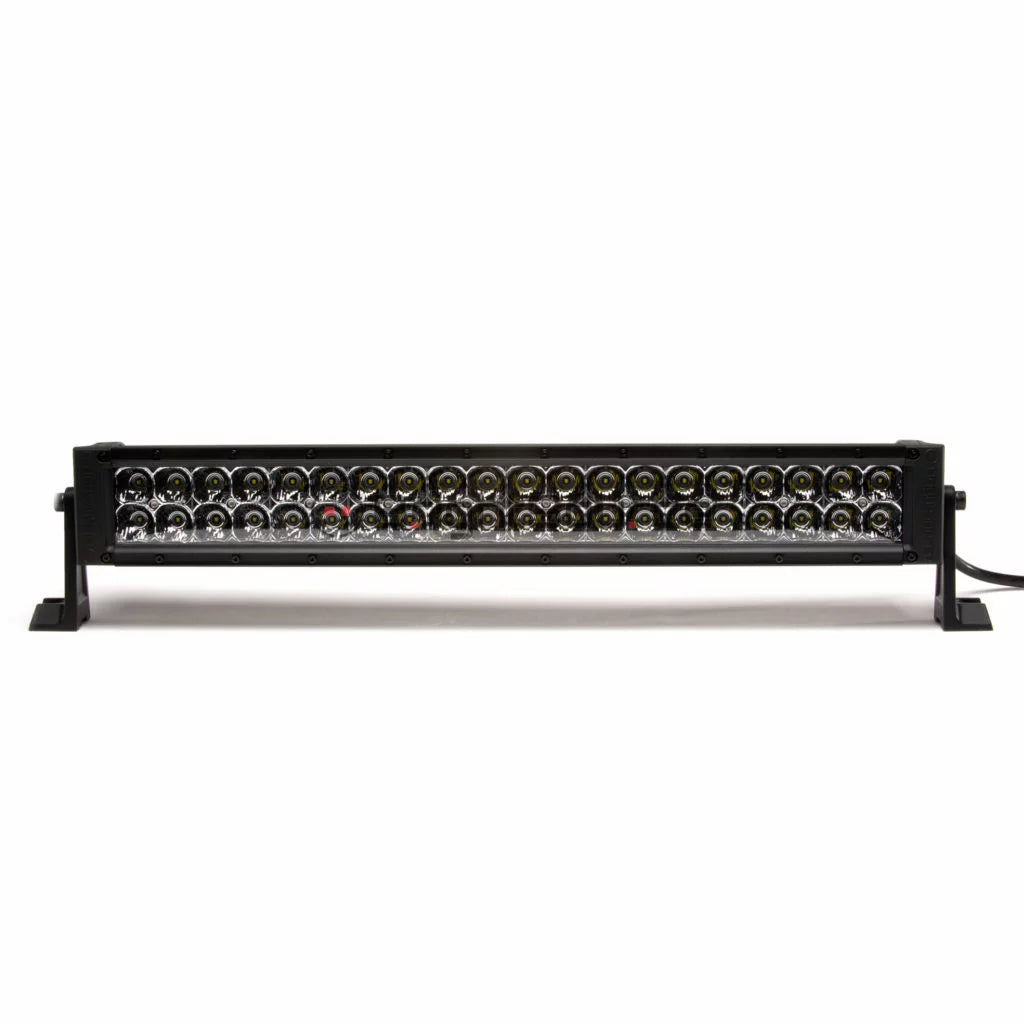

20" Double Row E-Marked Light Bar - by BrightSource

ORDERED ON DEMAND

Our 20” E-Marked Street Legal* Double Row Light Bar is the most popular model in our Double Row Light Bar category.  Generally installed on front bumpers for trucks and SUVs, this high performance light bar is also seen mounted on speedy Side X Side vehicles and rally vehicles. An exceptional lamp for use in all types of work trucks, municipal or commercial fleets, road work/service vehicles, agriculture, forestry, mining, construction…virtually any vehicle application. Super easy, plug and play installation with included harness and switch plus side mount or back mount bracket options.

Specifications:

LED: 40 x 3W Osram LEDs
Beam Pattern: E-Mark Street Legal Driving Pattern
Colour Temperature: 5000K
Luminous Flux: 10,800 lm (Raw) 3935 lm (Effective)
Lux: 1 Lux @ 406 m
IP Rating: IP 67
Voltage: DC10-30V
Wattage: 120W
Amperage 12V/24V: 6.9A @12V /3.5A @24V
Reverse Polarity Protection: Yes
Over/Under Volt. Protection:   Yes
Harness: Plug and Play – Included
Temperature Range:  -40 – +60°C
Housing Material: Aluminum with Powdercoat
Lens Material: Epoxy Encapsulated Polycarbonate

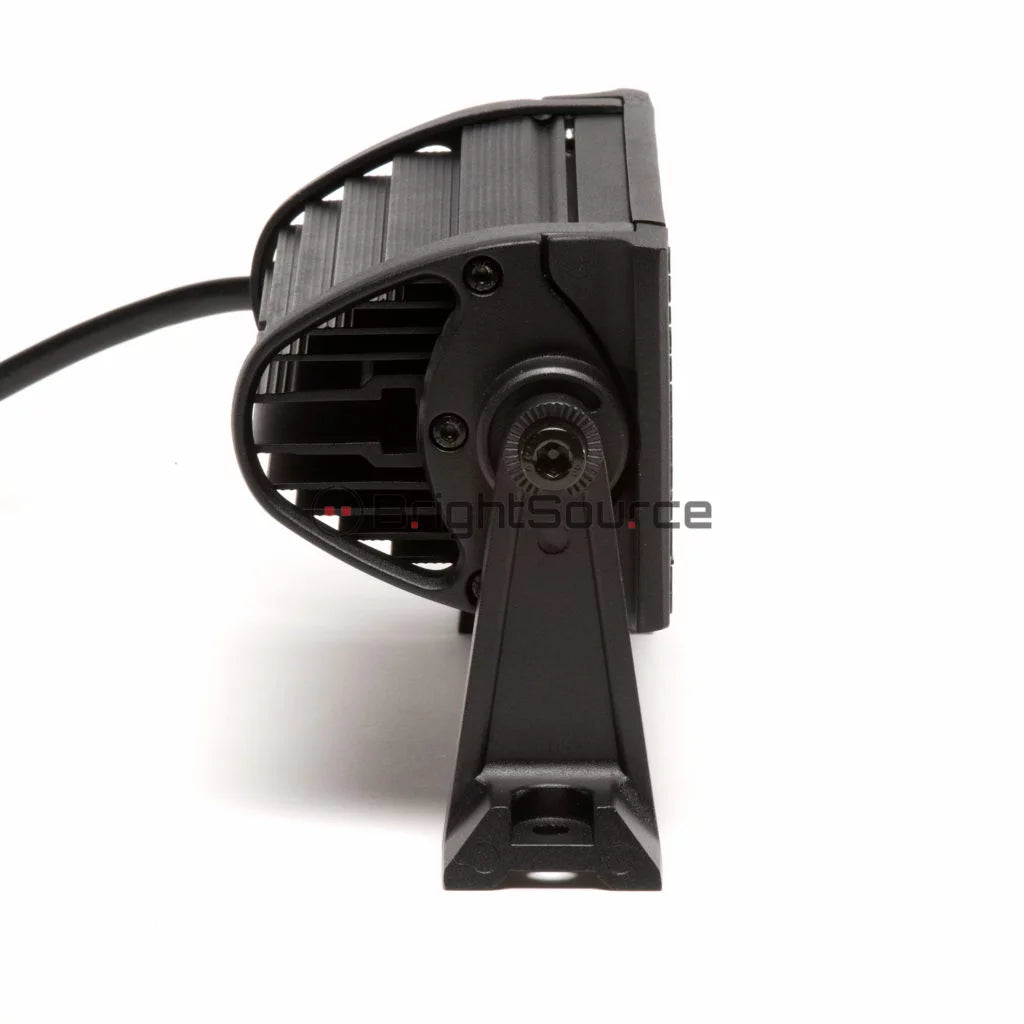

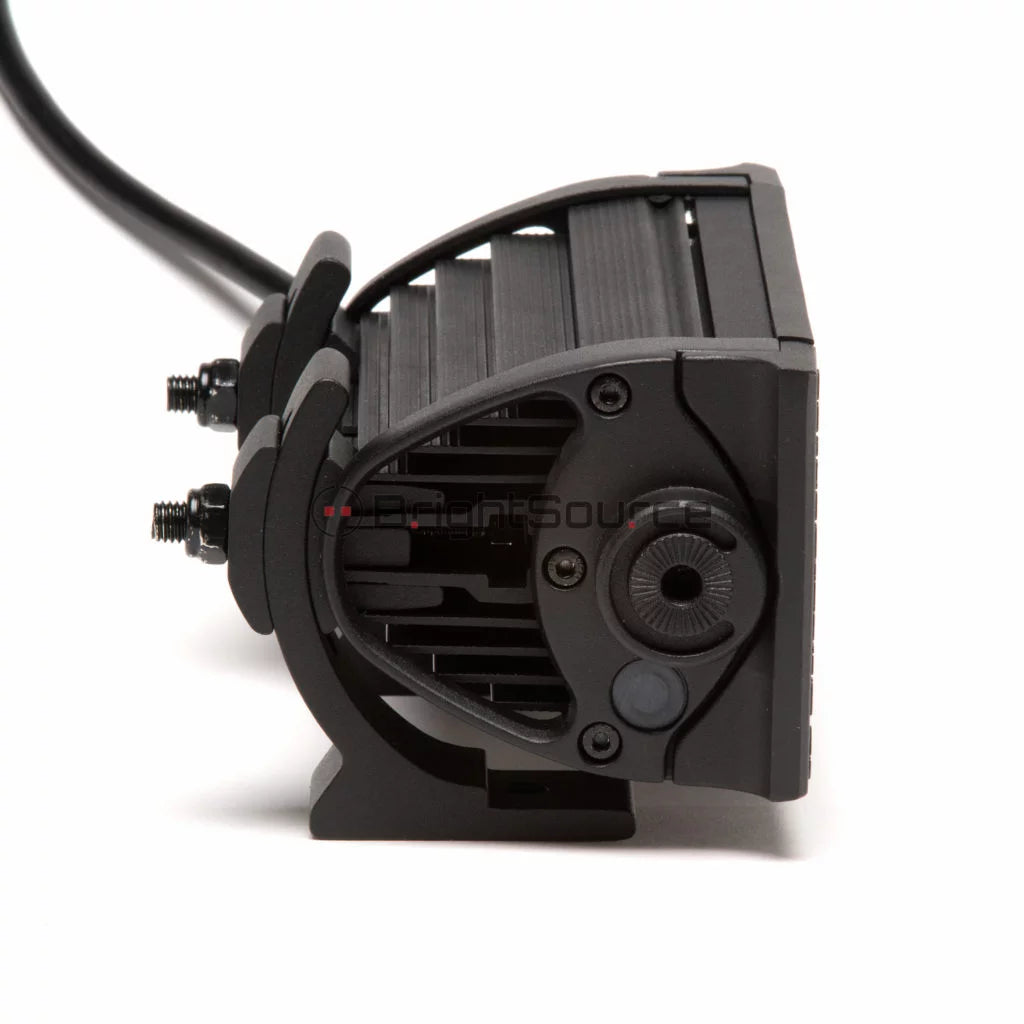

Mounting Bracket: Side and Bottom Mount Options with 304 Stainless Hardware

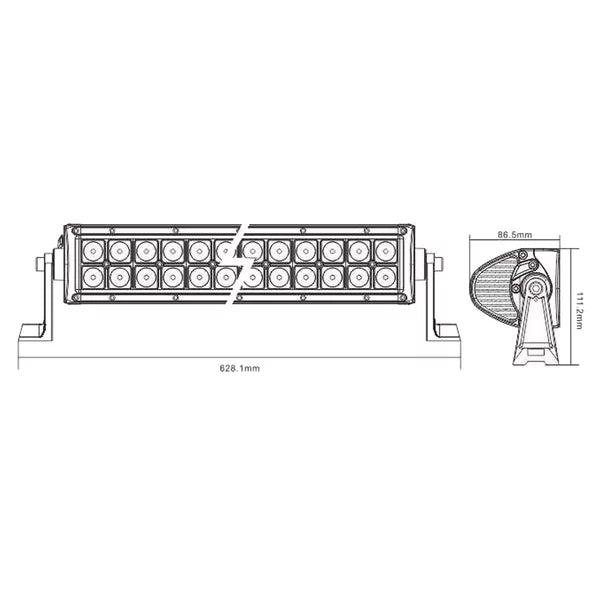

Size:  563 x 79 x 87mm (22.2 x 3.1 x 3.4”)
LED Lifespan: 50,000+ hrs
Certification: E-Mark/CE ECE R10 RoHS
Warranty:  5 Year Limited
